Quick Release T-Bolt Clamps

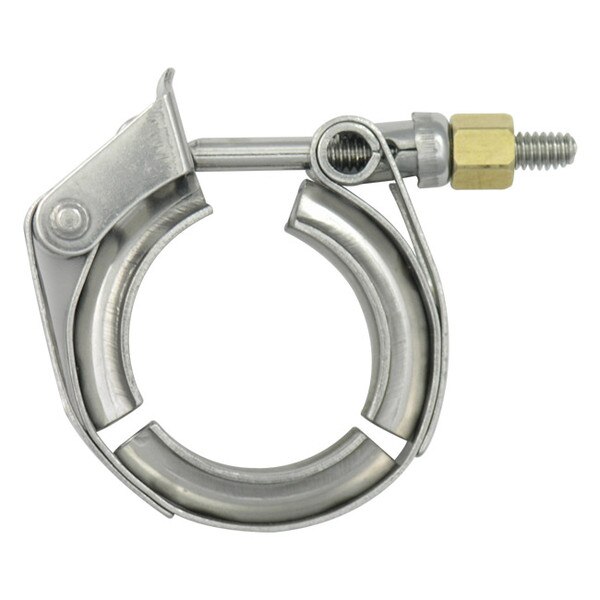

Dixon 13MO Sanitary T-Bolt Clamps are constructed from 304 stainless steel and intended for use with sanitary Tri-Clamp® fitting connections. These T-Bolt clamps are designed to be quick release for easy on/off, but at the cost of service pressure.
Safety Note: Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads. Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
>
 | ||||
| Tube OD | Service Pressure PSI Rating @ 70°F* | Service Pressure PSI Rating @ 250°F* | A | Part Number |
|---|---|---|---|---|

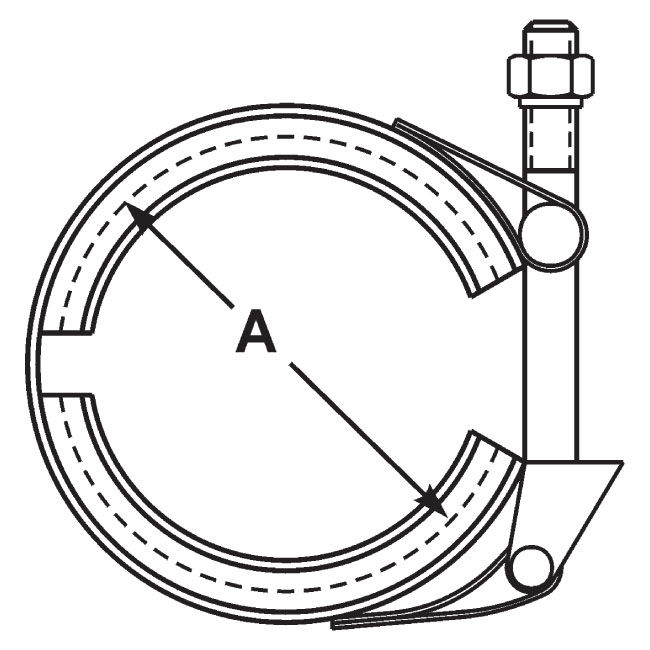

| 1" - 1-1/2" | 500 | 250 | 2.080" | 13MO100-150 |
| 2" | 350 | 200 | 2.610" | 13MO200 |
| 2-1/2" | 300 | 150 | 3.140" | 13MO250 |
| 3" | 200 | 100 | 3.670" | 13MO300 |
| 4" | 100 | 75 | 4.780" | 13MO400 |
| 6" | 75 | 50 | 6.690" | 13MO600 |
| 8"* | 50 | 40 | 8.690" | 13MO800 |
| 10"* | 40 | 30 | 10.690" | 13MO1000 |
| 12"* | 30 | 25 | 12.690" | 13MO1200 |
| * 2 bolt configuration | ||||
| ** 1" - 3" nuts tightened to 20 in. lb., 4" nut tightened to 30 in. lb., 6" nut tightened to 40 in. lb., and 8" - 12" nuts tightened to 50 in. lb. of torque | ||||
