Heavy Duty Sanitary Clamps - Dixon High Pressure Bolted

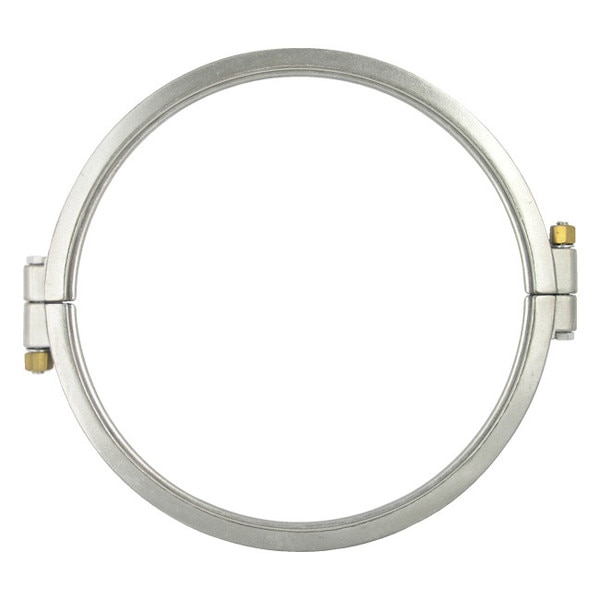

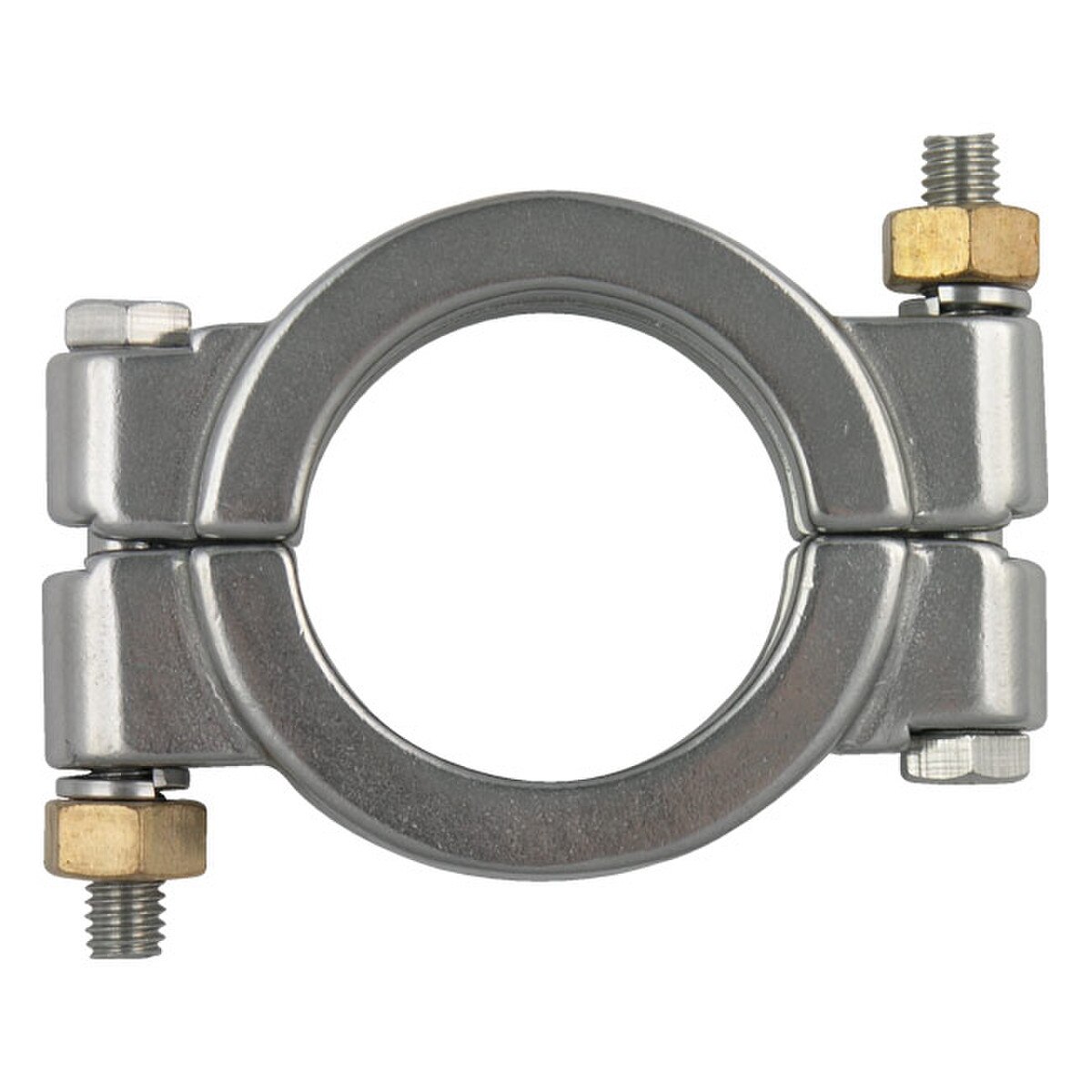

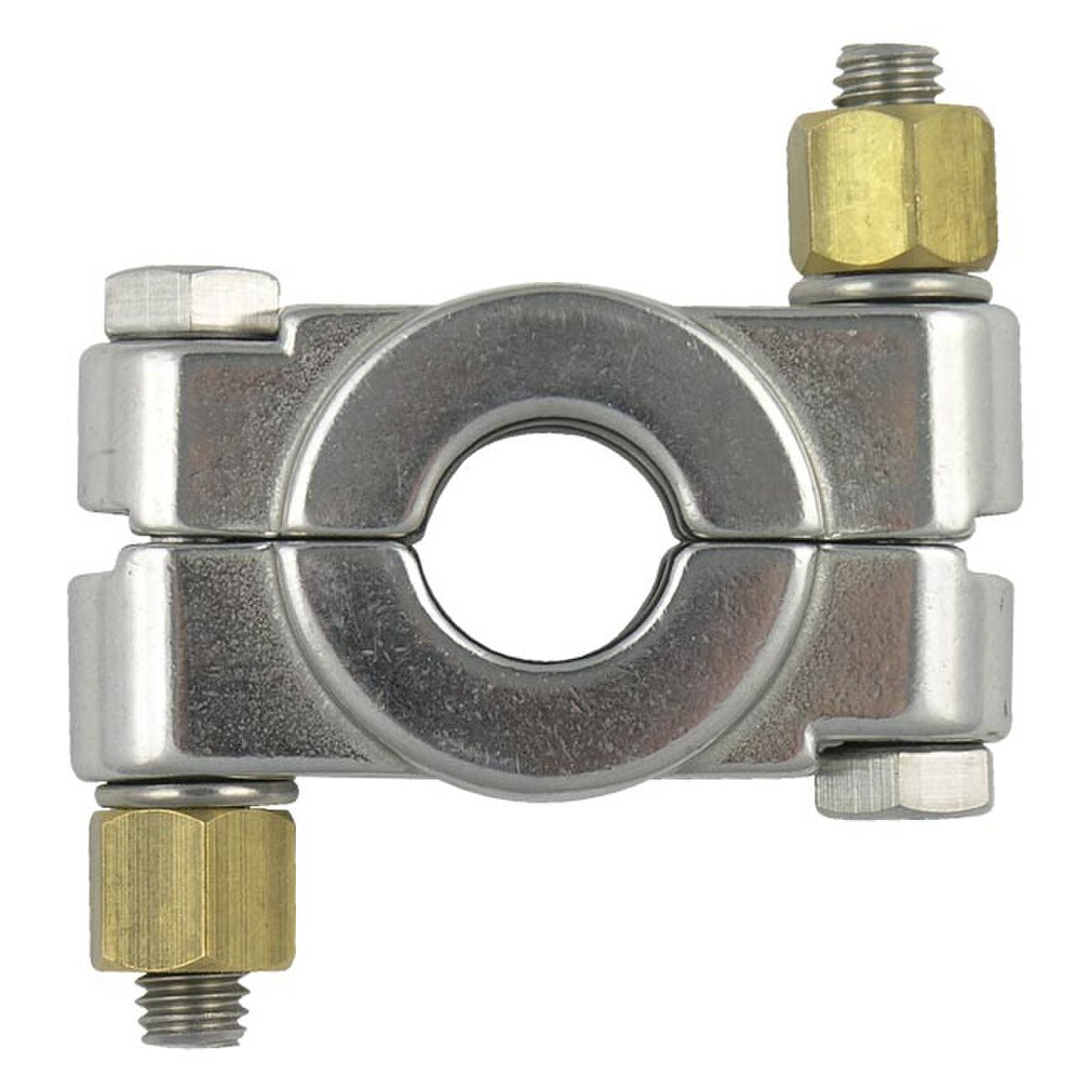

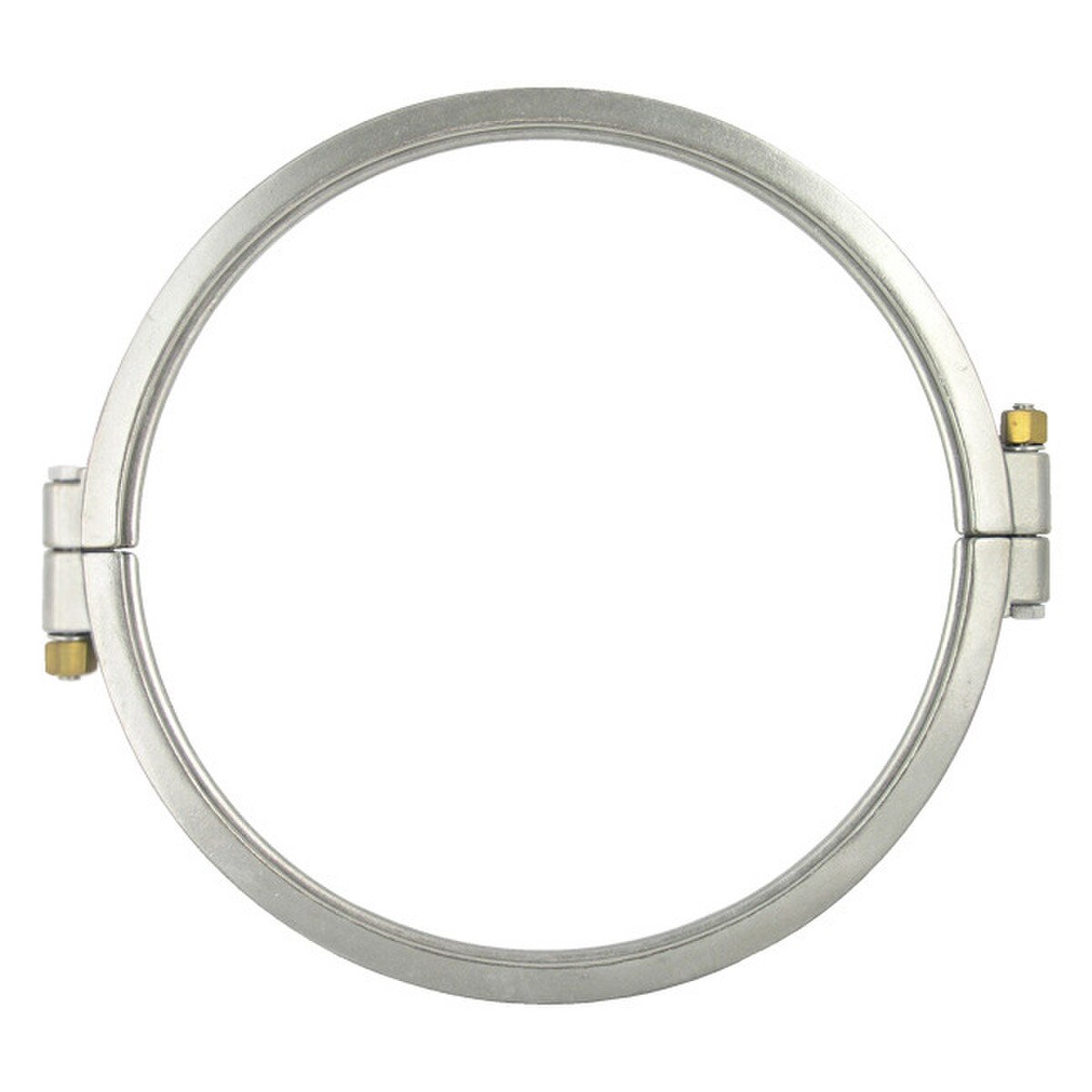

Dixon 13MHP High Pressure Clamps are constructed from 304 stainless steel and intended for use with sanitary Tri-Clamp® fitting connections. The bolted design of this sanitary clamp allows it to withstand twice the pressure of a like sized hinge clamp. Furnished with 304 stainless steel bolts/lock washers and either bronze (1" thru 8") or brass (1/2", 3/4", 10" & 12") hex nuts. High pressure clamps are often a necessity where temperature fluctuations occur and PTFE gaskets are installed.
Dixon Sanitary offers a complete line of replacement components and accessories to compliment their sanitary clamps. While these clamps are designed for heavy duty applications, over time the wear and tear of repeated change outs will start to take a toll. So, whether it's a lost nut or cross threaded bolt, we have you covered!
Safety Note: Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads. Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
 | ||||
| Part Number | Tube Size | A | Service Pressure Rating @ 75°F* | Service Pressure Rating @ 250°F* |
|---|---|---|---|---|
| 13MHP75 | 1/2" & 3/4" | 1.062" | 1500 psi | 1200 psi |
| 13MHP100-150 | 1" & 1-1/2" | 2.046" | 1500 psi | 1200 psi |
| 13MHP200 | 2" | 2.578" | 1000 psi | 800 psi |
| 13MHP250 | 2-1/2" | 3.110" | 1000 psi | 800 psi |
| 13MHP300 | 3" | 3.640" | 1000 psi | 800 psi |
| 13MHP400 | 4" | 4.744" | 800 psi | 600 psi |
| 13MHP500 | 5” | 5.76” | 300 psi | 200 psi |
| 13MHP600 | 6" | 6.632" | 300 psi | 200 psi |
| 13MHP800 | 8" | 8.638" | 250 psi | 150 psi |
| 13MHP1000 | 10" | 10.740" | 200 psi | 125 psi |
| 13MHP1200 | 12" | 12.740" | 150 psi | 100 psi |
| * Wing nut tightened to 20 ft-lb torque | ||||
