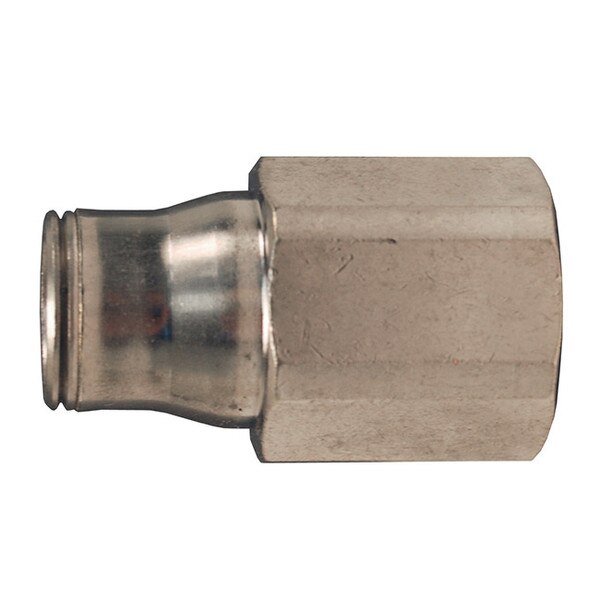

Parker Legris 3615 Series Nickel-Plated Brass Female Connectors are a push-in fitting designed to thread into NPT port and allow for a push in tubing connection. These Legris Fittings are compatible with semi-rigid nylon, polyurethane, and polyethylene tubing. Features solid construction, compact, aesthetic and unobtrusive for a better connection.

Parker Legris has developed the LF3600 Nickel-Plated fittings in order to meet your technical and environment requirements. These range of metal Legris Fittings offers robustness, reliability, and resistance to industrial fluids for the most demanding environments. Great for use with compressed air, grease, lubricant, water, and more. Construction materials conform to FDA standards making these great for food process, coffee machines, in-plant automotive, medical equipment, printing, misting, and welding robots.

Parker Legris LF3600 Fitting Features:

• Uses: Suitable for compressed air and fluids (Dependant upon O-Ring material and fluid used)
• Working Pressure: 290 psi (20 bar) Max (depends equally on the type and diameter of tubing used)
• Vacuum Capability: 28 inHg (99% vacuum)
• Working Temperature: -4°F to 302°F (-20°C to 150°C)
• Quick connect and disconnect (no tools required!)
• Proven gripping technology
• Full flow, minimal pressure drop
• Long threads to resist shock and vibration
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Excellent mechanical performance
• Materials conform to FDA standards

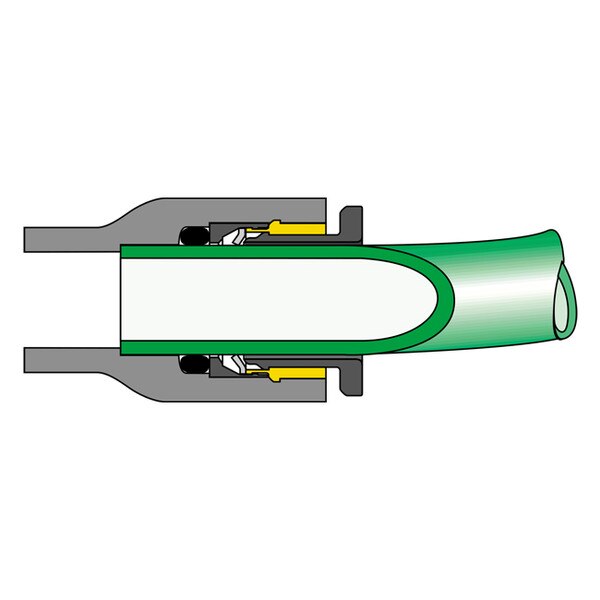

• Spring collet gripping system suitable for both metal (grooved) and polymer tubing
• Excellent resistance to high pressure and vacuum
• Excellent chemical compatibility
• Compact and ergonomic
• High performance brass for increased lifespan
• 100% leak-tested in production
• Date coding to guarantee quality and traceability

Parker Legris LF3600 Fitting Construction:

• Body: Nickel-Plated Brass
• Adapter: Nickel-Plated Brass
• Collet: Nickel-Plated Brass
• Protection Washer: Nickel-Plated Brass
• Seals: FKM
