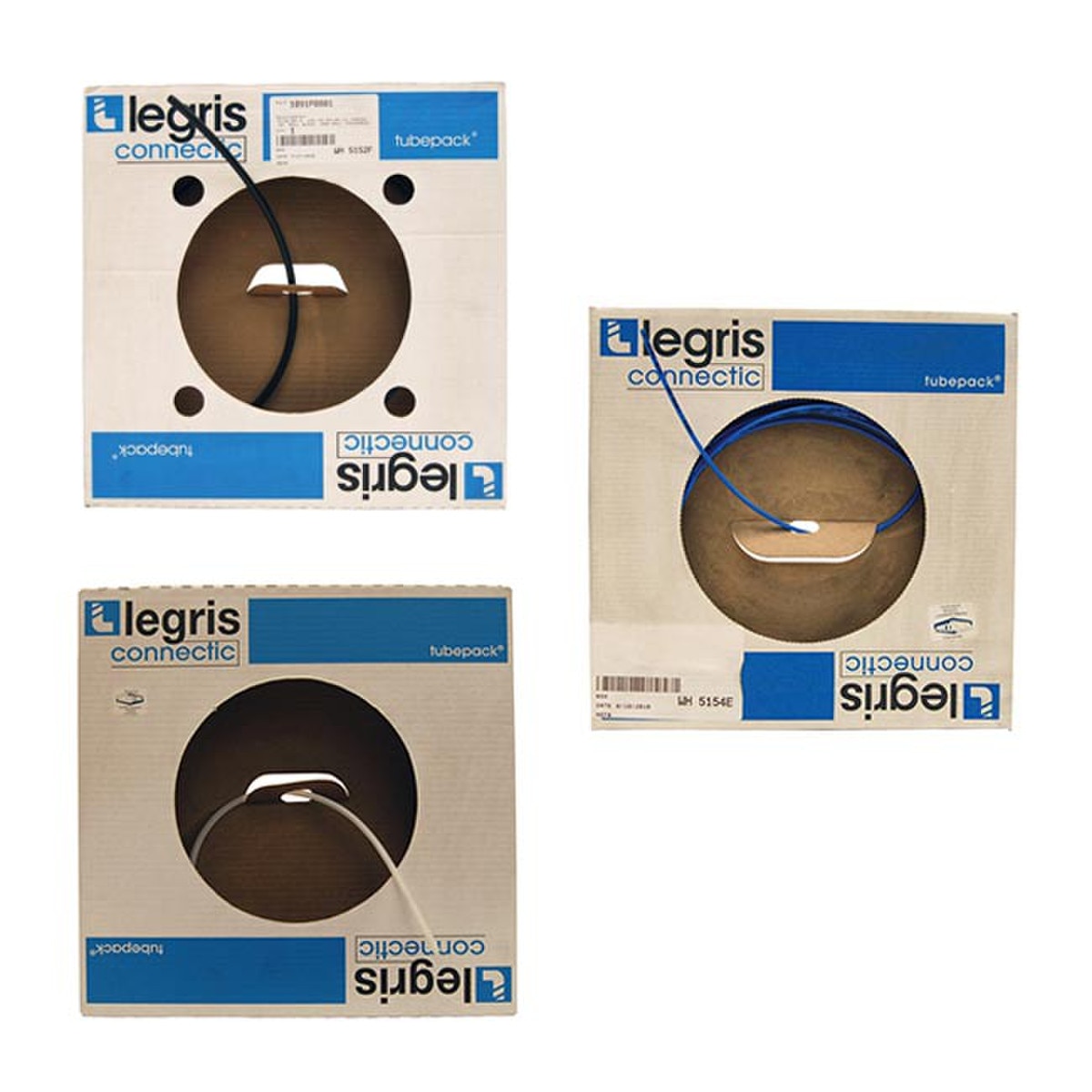

Parker Legris Polyurethane Tubing
Parker Legris Polyurethane 95 Durometer Tubing is manufactured to very close tolerances, to provide consistently high quality over wide temperature and pressure ranges. Polyurethane tubing has high flexibility and a small bend radius and thus is very good for applications where space is tight. Features excellent resistance against chemicals, humidity, and abrasion. This nylon hose is for use with push-in fittings, such as the Parker Legris fitting line. This flexible tubing is available in clear/natural, black, or blue and 50' or 100' rolls. For applications where the tubing will be exposed, black tubing is recommended.
Parker Legris Polyurethane Tubing Features:
- Available in Black, Blue or Clear/Natural
- Available in 50' or 100' Rolls
- Temperature Range: -40°F to 165°F (-40°C to 74°C)
- For use with Push-to-Connect Fittings
- High Flexibility
- Small Bend Radius
| MFG Part # | Outer Diameter | Length | Color |
|---|---|---|---|
| 1091U53R00 | 1/8" OD Tube | 50' | Clear |
| 1091U04R00 | 5/32" OD Tube | 50' | Clear |
| 1091U56R00 | 1/4" OD Tube | 50' | Clear |
| 1091U08R00 | 5/16" OD Tube | 50' | Clear |
| 1091U60R00 | 3/8" OD Tube | 50' | Clear |
| 1091U62R00 | 1/2" OD Tube | 50' | Clear |
| 1091U5301 | 1/8" OD Tube | 50' | Black |
| 1091U0401 | 5/32" OD Tube | 50' | Black |
| 1091U5601 | 1/4" OD Tube | 50' | Black |
| 1091U0801 | 5/16" OD Tube | 50' | Black |
| 1091U6001 | 3/8" OD Tube | 50' | Black |
| 1091U6201 | 1/2" OD Tube | 50' | Black |
| 1091U5304 | 1/8" OD Tube | 50' | Blue |
| 1091U0404 | 5/32" OD Tube | 50' | Blue |
| 1091U5604 | 1/4" OD Tube | 50' | Blue |
| 1091U0804 | 5/16" OD Tube | 50' | Blue |
| 1091U6004 | 3/8" OD Tube | 50' | Blue |
| 1091U6204 | 1/2" OD Tube | 50' | Blue |
| 1094U53R00 | 1/8" OD Tube | 100' | Clear |
| 1094U04R00 | 5/32" OD Tube | 100' | Clear |
| 1094U56R00 | 1/4" OD Tube | 100' | Clear |
| 1094U08R00 | 5/16" OD Tube | 100' | Clear |
| 1094U60R00 | 3/8" OD Tube | 100' | Clear |
| 1094U62R00 | 1/2" OD Tube | 100' | Clear |
| 1094U5301 | 1/8" OD Tube | 100' | Black |
| 1094U0401 | 5/32" OD Tube | 100' | Black |
| 1094U5601 | 1/4" OD Tube | 100' | Black |
| 1094U0801 | 5/16" OD Tube | 100' | Black |
| 1094U6001 | 3/8" OD Tube | 100' | Black |
| 1094U6201 | 1/2" OD Tube | 100' | Black |
| 1094U5304 | 1/8" OD Tube | 100' | Blue |
| 1094U0404 | 5/32" OD Tube | 100' | Blue |
| 1094U5604 | 1/4" OD Tube | 100' | Blue |
| 1094U0804 | 5/16" OD Tube | 100' | Blue |
| 1094U6004 | 3/8" OD Tube | 100' | Blue |
| 1094U6204 | 1/2" OD Tube | 100' | Blue |
