Parker Legris Male Connectors - Nylon/Nickel-Plated Brass (LF3000)

(0)No Reviews yet
$3.73 to $10.51
SKU: LEGRIS-NNPB-CONNECTOR-M
$3.73 to $10.51

In Stock

Current Stock: 38

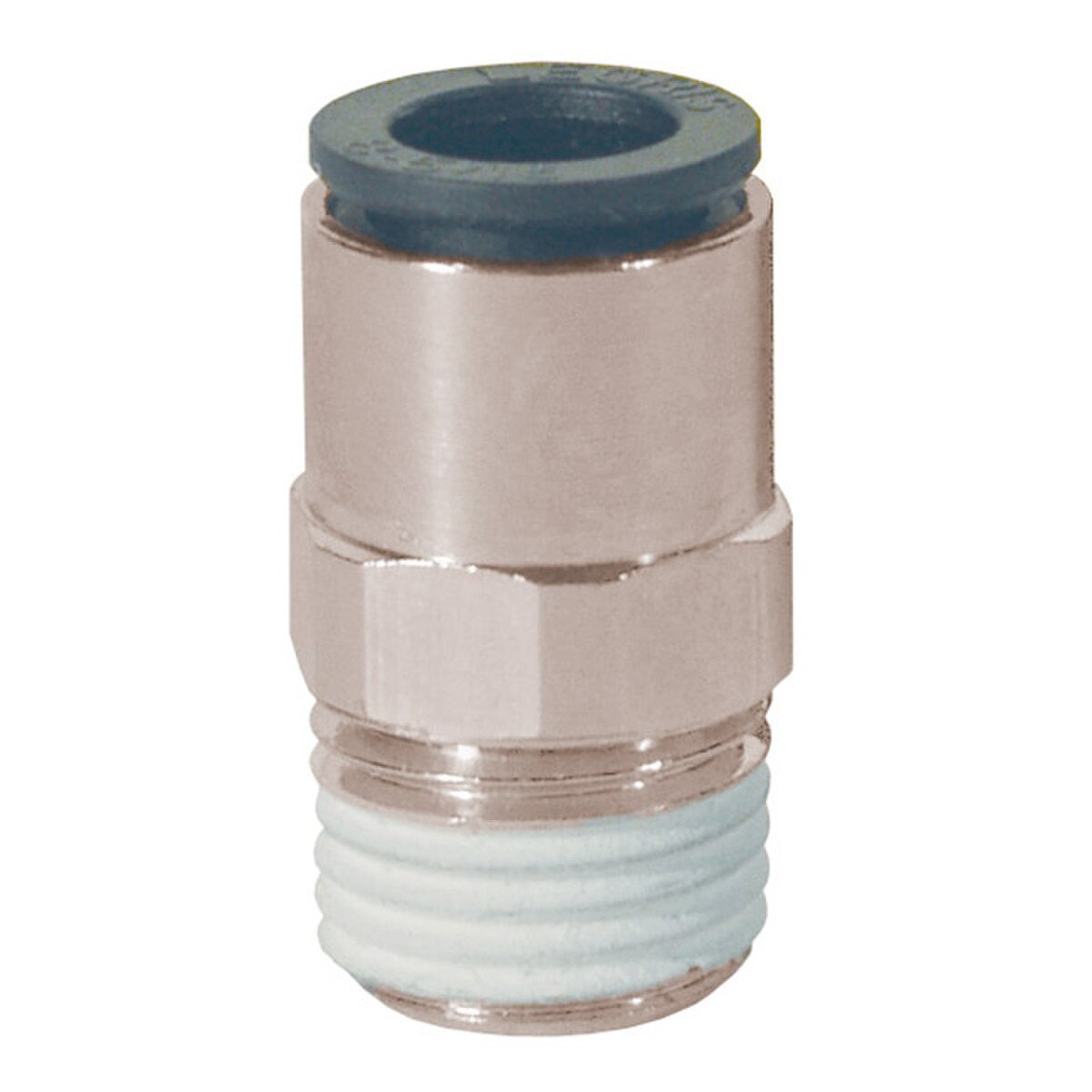

Parker Legris 3175 Series Nylon/Nickel-Plated Hybrid Male Connectors are a push-in fitting designed to thread into NPT port and allow for a push in tubing connection. These Legris Fittings are compatible with semi-rigid nylon, polyurethane, and polyethylene tubing. Features solid construction, compact, aesthetic and unobtrusive for a better connection.

Parker Legris has developed the LF3600 Nickel-Plated fittings in order to meet your technical and environment requirements. These range of metal Legris Fittings offers robustness, reliability, and resistance to industrial fluids for the most demanding environments. Great for use with compressed air, grease, lubricant, water, and more. Construction materials conform to FDA standards making these great for food process, coffee machines, in-plant automotive, medical equipment, printing, misting, and welding robots.

Parker Legris LF3600 Fitting Features:

  • Uses: Suitable for compressed air and fluids (Dependant upon O-Ring material and fluid used)
  • Working Pressure: 290 psi (20 bar) Max (depends equally on the type and diameter of tubing used)
  • Vacuum Capability: 28 inHg (99% vacuum)
  • Working Temperature: -4°F to 175°F (-20°C to 79°C)
  • Conforms to ISO 14743
  • Quick connect and disconnect (no tools required!)
  • Proven gripping technology
  • Full flow, minimal pressure drop
  • Parallel threaded fitting with a patented captive O-ring seal
  • Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
  • Compact and ergonomic
  • High performance brass for increased lifespan
  • 100% leak-tested in production
  • Date coding to guarantee quality and traceability

Parker Legris LF3600 Fitting Construction:

  • Body: Glass-Filled Nylon
  • Adapter: Nickel-Plated Brass
  • Gripping Ring: Stainless Steel
  • Sealing Ring: Buna
  • Release Button: Glass-Filled Nylon
MFG Part #Male NPTTube OD
317553081/16"1/8"
317553111/8"1/8"
317553141/4"1/8"
317504111/8"5/32"
317504141/4"5/32"
317556111/8"1/4"
317556141/4"1/4"
317556183/8"1/4"
317508111/8"5/16"
317508141/4"5/16"
317508183/8"5/16"
317560111/8"3/8"
317560141/4"3/8"
317560183/8"3/8"
317560221/2"3/8"
317562141/4"1/2"
317562183/8"1/2"
317562221/2"1/2"
