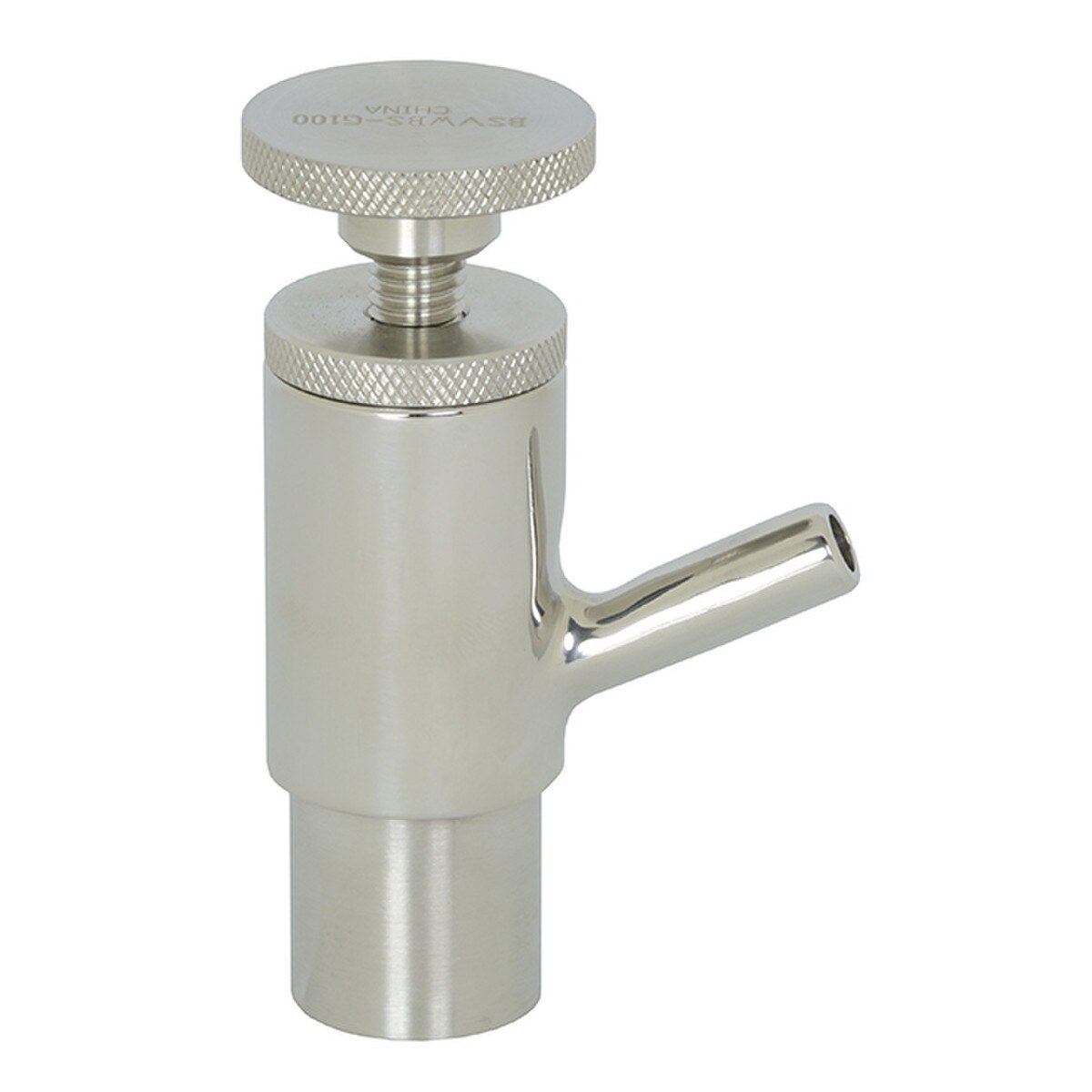

Dixon Sanitary W Series Stainless Steel Sample Valve - 1" Weld
Dixon Sanitary BSVWB W Series Samples Valves are constructed from 304 stainless steel and furnished with a 1" weld inlet. Surfaces are polished to a sanitary finish for use with food and beverage applications, however these stainless steel valves are not 3A approved..
Internally these Stainless Sample Valves feature a double o-ring seal and your choice of PTFE or Silicone seat to ensure leak-proof shut-off.
Dixon BSVW Clamp Sample Valve Features:
- 304 Stainless Steel Construction
- Sanitary polished surface finish
- Temperature Rating: 300°F @ 200 psi
- Double Silicone O-Rings
- Choice of Silicone or PTFE Seat
- Also available with Clamp or NPT Ends
- Repair Kits Available
Part Number | Size | Seat Material | Weight |
---|---|---|---|
BSVWBS-G100 | 1" Weld | Silicone | 0.72 lbs |
BSVWBP-G100 | 1" Weld | PTFE | 0.72 lbs |
