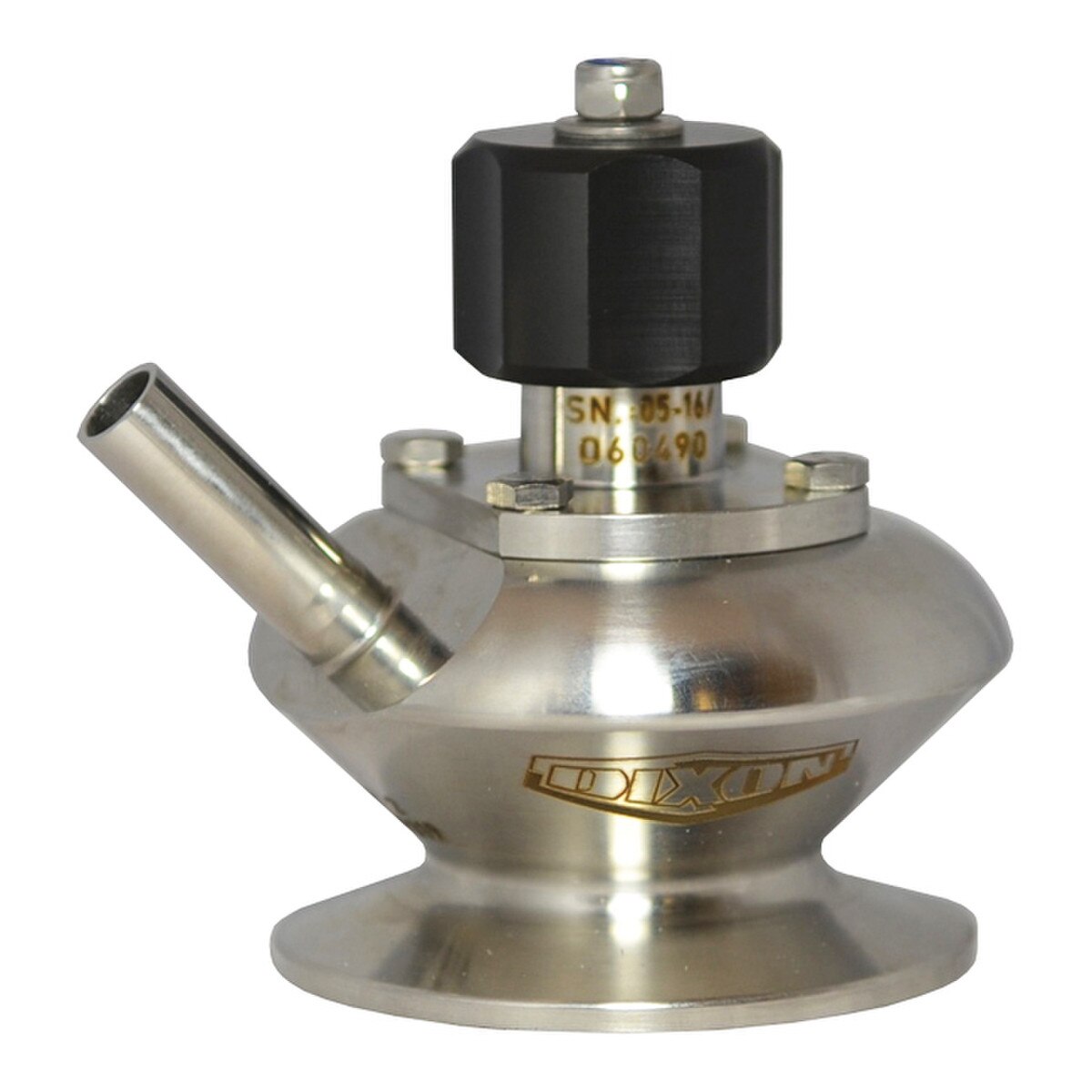

Dixon Sanitary BSV Single Port 3A Sample Valves
Dixon Sanitary BSV Series 3A Samples Valves are constructed with 32Ra 316 stainless steel product contact surfaces making them 3A approved. Experience safe and simple sampling of liquids from closed systems such as pipelines and vessels with the Dixon BSV Aseptic Sample Valve. Ideal for pharmaceutical, biopharm, biochemical, cosmetic, food, dairy and beverage markets. Dual port models also available.
These stainless steel sample valves are fully drainable with no deadspace for bacteria to accumulate. All valves are hermetically seal against the environment for optimum cleanability and long life.
The valve body of these sample valves is hermetically sealed from the environment, thus ensuring the perfect protection for your liquid product. The pocket-free design of the valve body and the optimum surface make it an indispensable part of sterile process engineering in food technology and pharmaceuticals. Thanks to the modular design the reconstruction of aseptic into hygienic version, of "air to open" on "air to closed", of liquid on fibrous and particulate media no problem. The dimensions can be adapted to local conditions. Even under special conditions such as high sterilization temperatures, these aseptic valves meet all requirements regarding reliability and reliable operation. These valves have been TA-Luft certified for tightness outwards and inwards by helium leak test.
Dixon BSV Series 3A Sample Valve Features:
- Product Contact Surfaces: 32Ra 316L Stainless Steel
- Product Contact Seals: PTFE Bellow
- Non-Product Contact Surfaces: 68Ra 304 Stainless Steel
- 1/2" thru 4" Sizes
- Closing Tension Operating Pressure: 116 psi Max
- Hand Wheel Version Operating Pressure: Min - 87 psi, Max - 232 psi
- Controlled Air Pressure: 145 psi Max
- No Dead Space
- Fully Drainable
- Optimal Cleanability
- Connection suitable for orbital welding
- PTFE bellow technology rated for more than 3 million cycles
- Complete separation from the environment
- Seal replacement without special tools
- Low spare parts cost
- Optional pneumatic actuator (contact us for details)
 | |||||
| Part Number | Connection Size | Port Size | A | B | C |
|---|---|---|---|---|---|
| BSVS-HC050B025 | 1/2" | 1/4" | 2.54" | 1.79" | 3.70" |
| BSVS-HC050B375 | 1/2" | 3/8" | 2.48" | 1.84" | 3.70" |
| BSVS-HC050B050 | 1/2" | 1/2" | 2.46" | 1.87" | 3.70" |
| BSVS-HC100B025 | 1" | 1/4" | 2.15" | 1.79" | 3.31" |
| BSVS-HC100B375 | 1" | 3/8" | 2.09" | 1.84" | 3.31" |
| BSVS-HC100B050 | 1" | 1/2" | 2.07" | 1.87" | 3.31" |
| BSVS-HC150B025 | 1-1/2" | 1/4" | 2.15" | 1.79" | 3.31" |
| BSVS-HC150B375 | 1-1/2" | 3/8" | 2.09" | 1.84" | 3.31" |
| BSVS-HC150B050 | 1-1/2" | 1/2" | 2.07" | 1.87" | 3.31" |
| BSVS-HC200B025 | 2" | 1/4" | 2.15" | 1.79" | 3.31" |
| BSVS-HC200B375 | 2" | 3/8" | 2.09" | 1.84" | 3.31" |
| BSVS-HC200B050 | 2" | 1/2" | 2.07" | 1.87" | 3.31" |
| BSVS-HC250B025 | 2-1/2" | 1/4" | 2.15" | 1.79" | 3.31" |
| BSVS-HC250B375 | 2-1/2" | 3/8" | 2.09" | 1.84" | 3.31" |
| BSVS-HC250B050 | 2-1/2" | 1/2" | 2.07" | 1.87" | 3.31" |
| BSVS-HC300B025 | 3" | 1/4" | 2.15" | 1.79" | 3.31" |
| BSVS-HC300B375 | 3" | 3/8" | 2.09" | 1.84" | 3.31" |
| BSVS-HC300B050 | 3" | 1/2" | 2.07" | 1.87" | 3.31" |
| BSVS-HC400B025 | 4" | 1/4" | 2.15" | 1.79" | 3.31" |
| BSVS-HC400B375 | 4" | 3/8" | 2.09" | 1.84" | 3.31" |
| BSVS-HC400B050 | 4" | 1/2" | 2.07" | 1.87" | 3.31" |
 | |||
| Number | Part | Quantity | Material |
|---|---|---|---|
| 1 | Single Port Body | 1 | 316L Stainless |
| 1A | Dual Port Body | 1 | 316L Stainless |
| 2 | Bellows | 1 | PTFE |
| 3 | O-Ring | 1 | Silicone |
| 4 | Housing | 1 | 304 Stainless |
| 5 | Body Bolts | 1 | 304 Stainless |
| 6 | Hand Wheel | 1 | Polyoxymthylene |
| 7 | Washer | 1 | 304 Stainless |
| 8 | Nut | 1 | 304 Stainless |
