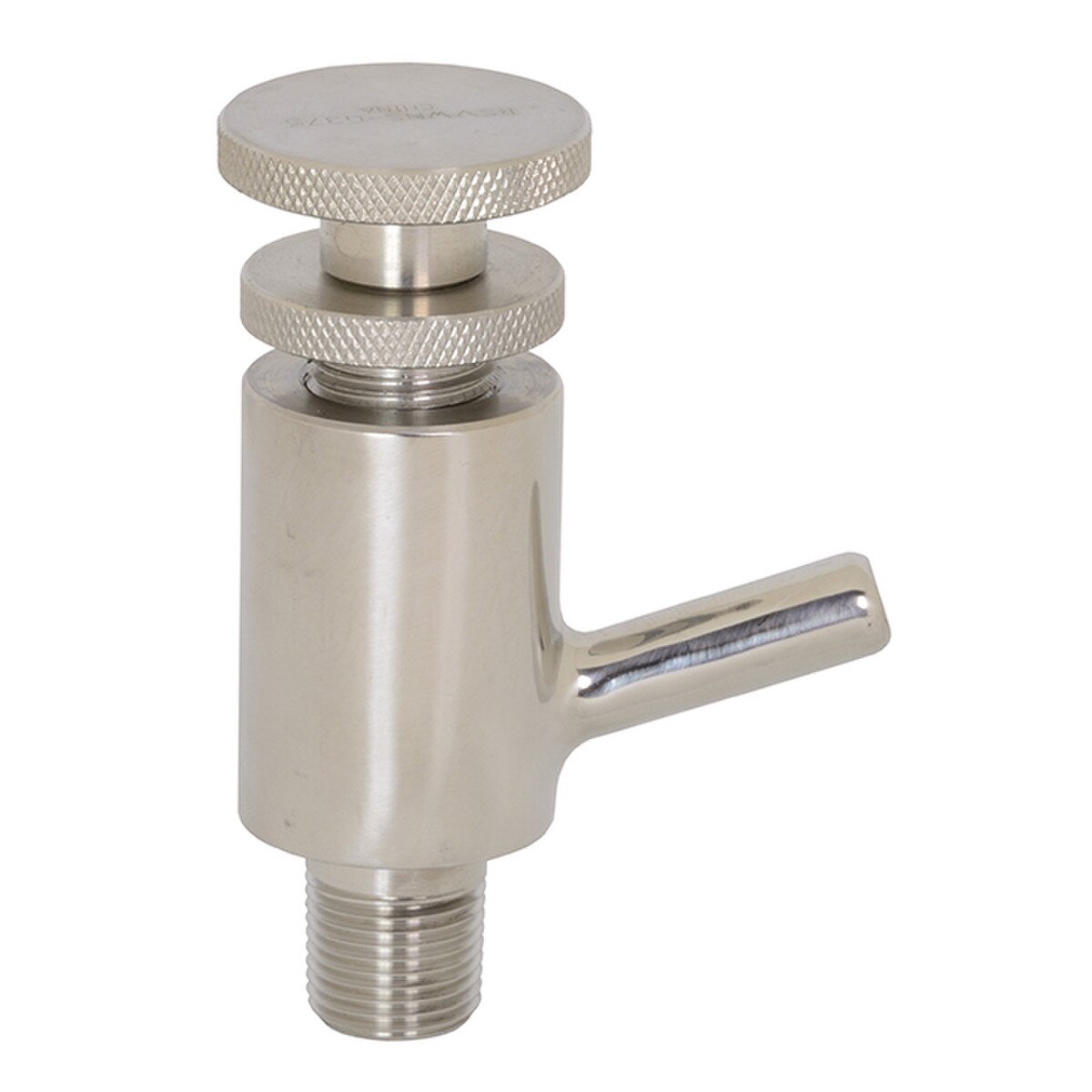

Dixon Sanitary W Series Stainless Steel Sample Valve - 3/8" NPT
Dixon Sanitary BSVWN W Series Samples Valves are constructed from 304 stainless steel and furnished with a 3/8" NPT inlet. Surfaces are polished to a sanitary finish for use with food and beverage applications, however these stainless steel valves are not 3A approved.
Internally these Stainless Sample Valves feature a double o-ring seal and your choice of PTFE or Silicone seat to ensure leak-proof shut-off.
Dixon BSVW NPT Sample Valve Features:
- 304 Stainless Steel Construction
- Sanitary polished surface finish
- Temperature Rating: 300°F @ 200 psi
- Double Silicone O-Rings
- Choice of Silicone or PTFE Seat
- Also available with Clamp or Weld Ends
- Repair Kits Available
 | |||
| Part Number | Size | Seat Material | Weight |
|---|---|---|---|
| BSVWNS-G375 | 3/8" NPT | Silicone | 0.72 lbs |
| BSVWNP-G375 | 3/8" NPT | PTFE | 0.72 lbs |
