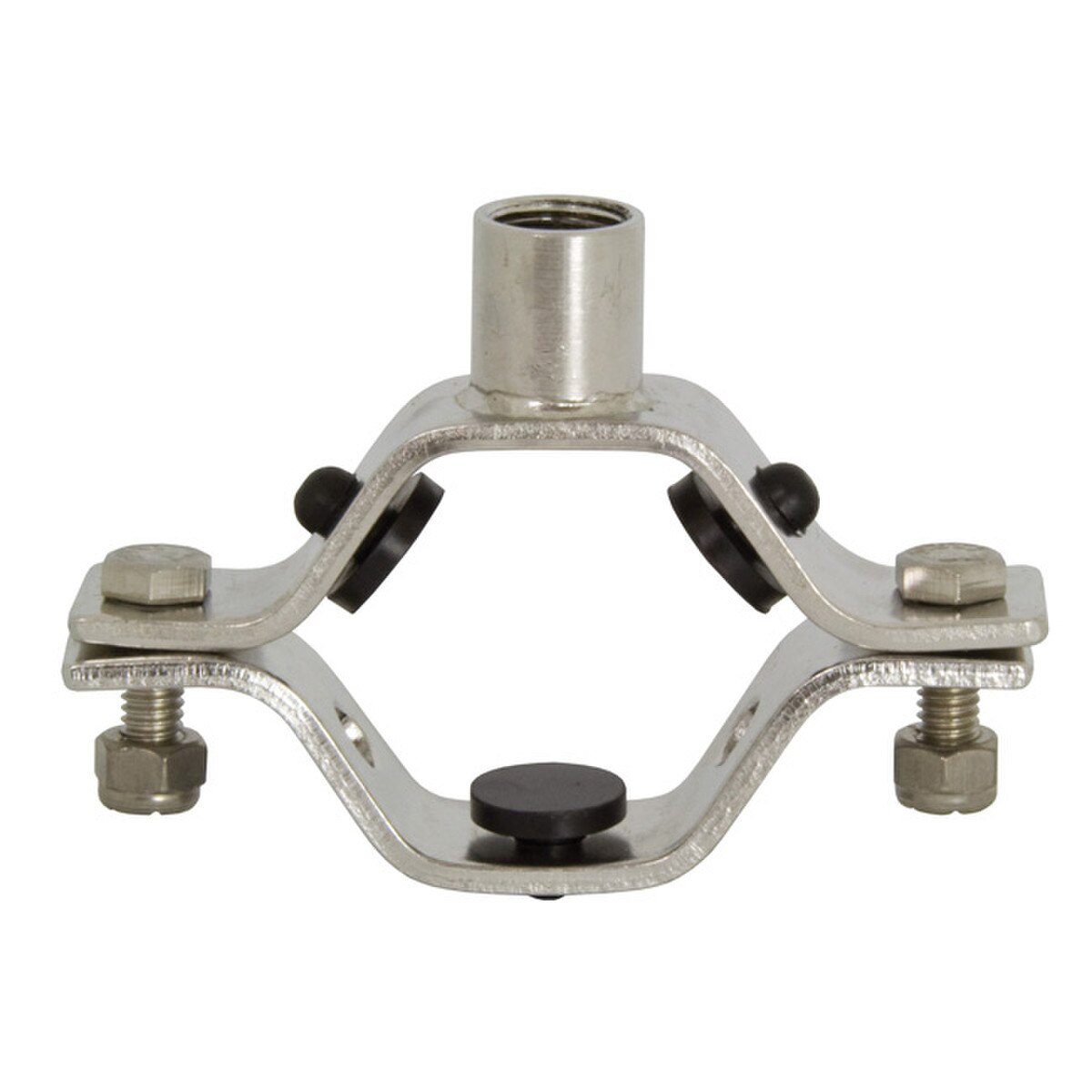

VNE 3/8" Coupling Hex Hangers w/ FKM Grommets (Tube Size)
VNE E24C Tube Hex Hangers are supplied with three FKM grommets and have a 3/8" NPT threaded coupling on one half. Use these tube hanger to support long runs of tubing. It is recommended to have a support every 10 feet along straight sections as well as at each change in direction. FKM Grommets are rated to 392°F.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | |||
| Part Number | Tube OD | A | B |
|---|---|---|---|
| E24C.5 | 1/2" | 3-5/8" | 2-1/8" |
| E24C.75 | 3/4" | 3-5/8" | 2-1/8" |
| E24C1.0 | 1" | 3-5/8" | 2-1/8" |
| E24C1.5 | 1-1/2" | 3-5/8" | 2-1/8" |
| E24C2.0 | 2" | 4-5/16" | 2-5/8" |
| E24C2.5 | 2-1/2" | 4-7/8" | 3-1/8" |
| E24C3.0 | 3" | 5-3/8" | 3-5/8" |
| E24C4.0 | 4" | 6-9/16" | 4-3/4" |
| E24C6.0 | 6" | 9" | 6-5/8" |
