Behringer Threaded Support Rods
Details

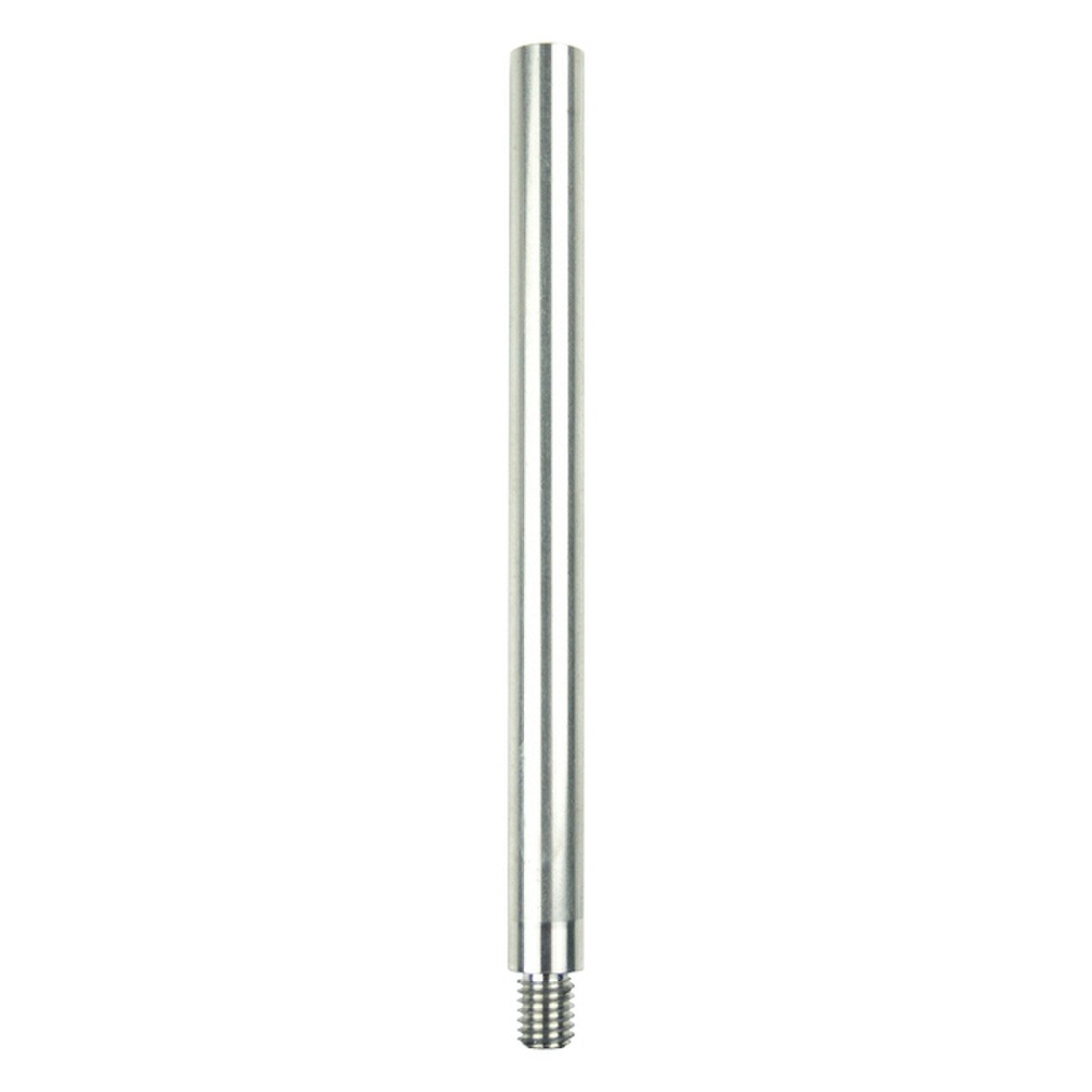

Threaded support rods for use with Behringer threaded hangers. Installation is simple, first thread the rod into the housing and cut the rod to the desired length. Then you can weld the rod to a support structure or use it with one of Behringer's support stands which allow fine tune adjustment in the rods height for a perfect fit. Available in 304, 316 and carbon steel (304 and 316 feature a 25 Ra finish). Refer to the chart below to determine the appropriate thread to use for your supports.
| Thread Sizes | |||
| CH Series | SB or Block Style | ||
| OD | Thread | OD | Thread |
| 0.24"-2.00" | 5/16"-18 (031) | 0.25"-4.50" | 3/8"-16 (038) |
| 2.05"-3.00" | 3/8"-16 (038) | N/A | N/A |
| 3.13"-4.50" | 1/2"-13 (050) | 6.00"-6.625" | 5/8"-11 (063) |
| 5.08"-6.00" | 3/4"-10 (075) | N/A | N/A |
