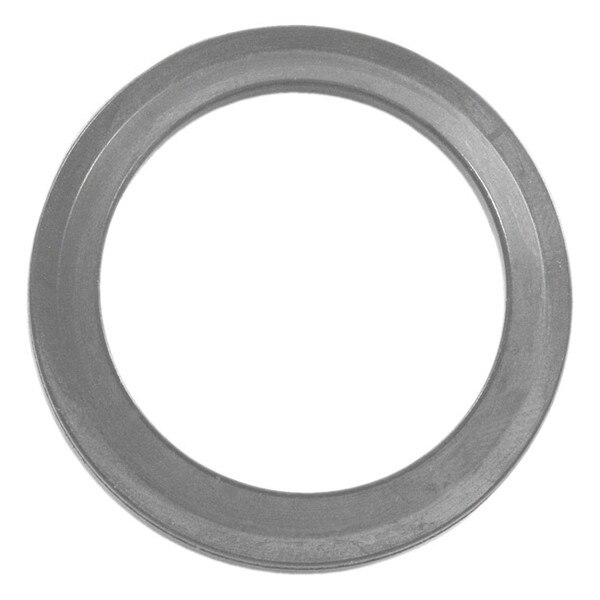

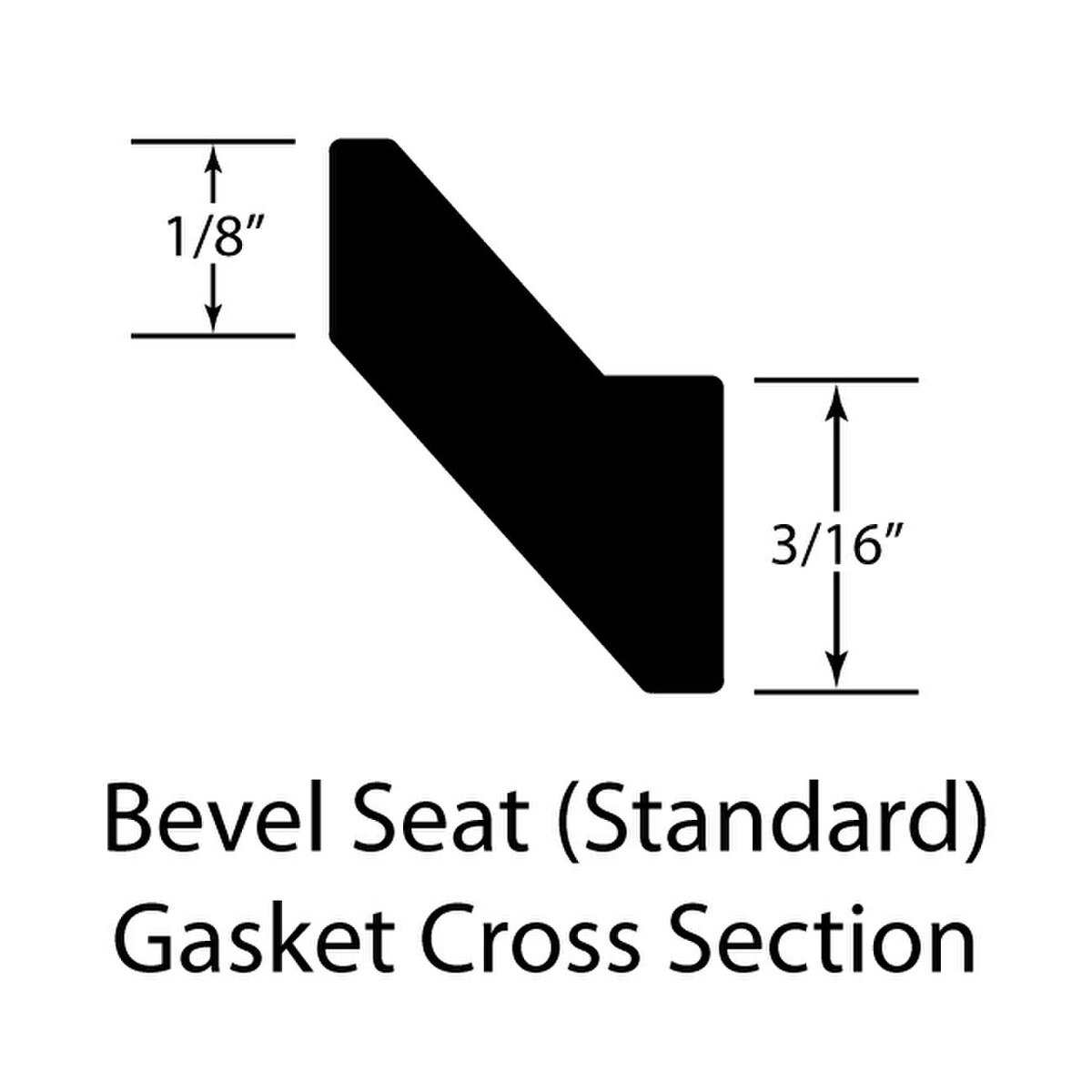

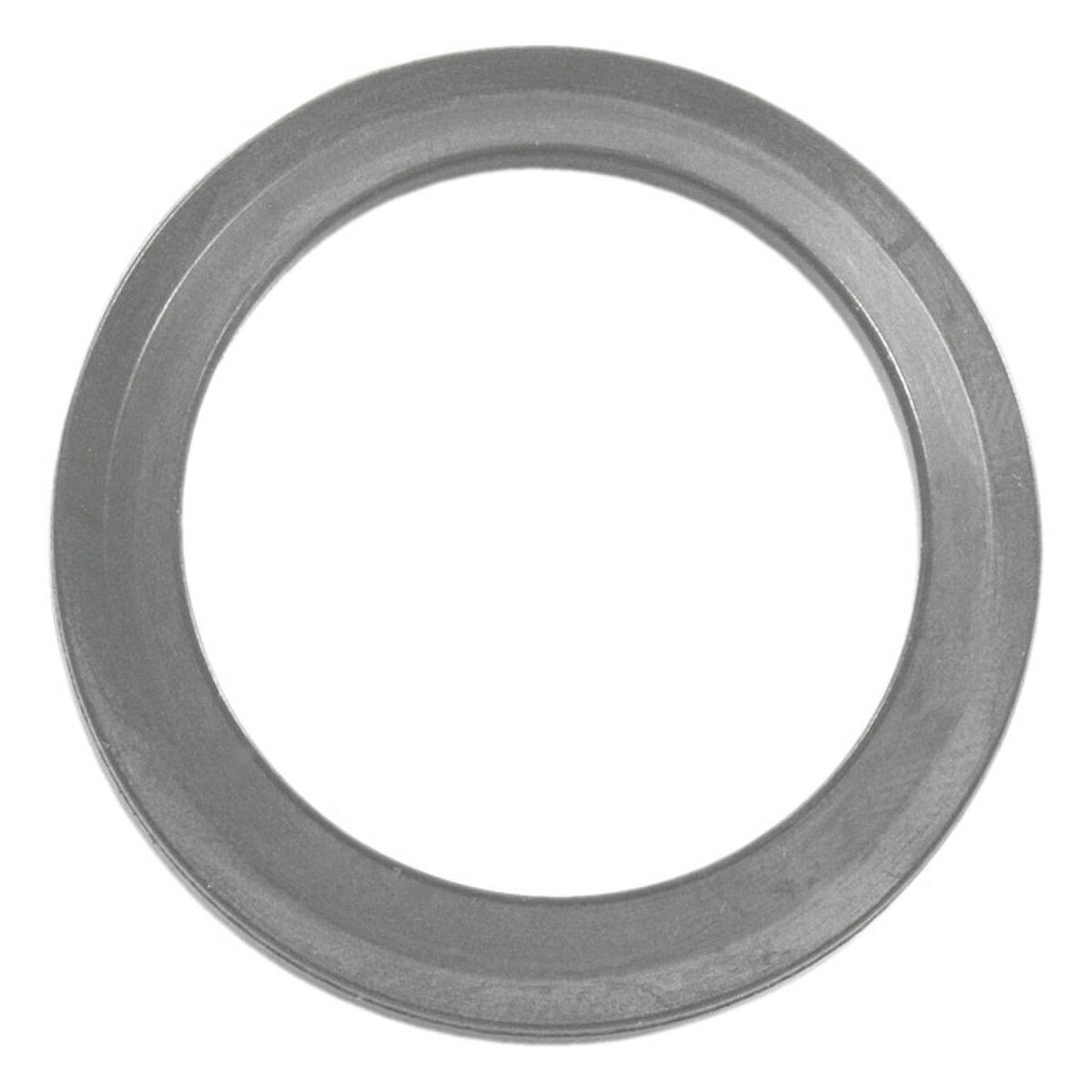

Tuf-Steel® Sanitary Bevel Seat Gaskets are the material of choice when purity, long service life, performance, chemical resistance, and heat resistance are required. Tuf-Steel® Gaskets are 100% leak free when torqued correctly, and will experience minimum creep and cold flow. The Tuf-Steel® material is a unique proprietary blend of non-pigmented PTFE (Teflon®) and 316L Stainless Steel that has been water atomized and passivated. The end result is a Tuf-Steel® Gasket that is non-stick, features no pigmentation, and has ultra-low absorption rates. These Bevel Seat Gaskets can maintain seal integrity under large temperature fluctuations with a serviceable temperature range from -350°F to 550°F. We recommend the use of the Torque-Rite® Clamp to get the most out of these gaskets.

Tuf-Steel® is the original metal detectable gasket, the material has always been detectable with metal detectors and magnetic separators. Over 10 years of testing and documented application usage show that Tuf-Steel® is the choice for perfect surface performance, outstanding durability, extended service life and increased up-time for both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel® Gaskets are ideal for sanitary steam and extreme temperature processes, especially fryer and hot oil applications. Unlike envelope gaskets, the superior strength of the Tuf-Steel® blend will not revert, eliminating creep and cold flow, providing a leak-free seal.

Storing Tuf-Steel® Gaskets:

• Shelf Life: 20 Years from cure date
• Store in original packaging in clean and dry warehouse
• Do not expose to direct sunlight
• Keep more than 6' away from electric motors
• Maintain temperature between 65°F and 85°F

• FDA CFR 21, 177.1550
• U.S. Pharmacopeia Class VI Certification
• USDA Hazard Analysis and Critical Control Points
• Cytotoxicity Criteria
• USDA and 3-A Sanitary Standards
• ADI Free® (Animal Derived Ingredient Free)
• Current Good Manufacturing Practices (CGMP)

• Color Code: No Dot
• -350°F to 550°F Temperature Range
• Proprietary blend of PTFE and 316L (water atomized and passivated)
• Maintains seal with wide temperature variations
• Metal Detectable
• Extended service life
• Leak-proof performance
• Extremely durable
• Great for SIP(steam in place) and WFI (water for injection) applications
• Non-pigmented
• Non-stick surface
• Minimal cold flow and creep
• 500 CIP/SIP cycles guaranteed
• Excellent expansion/contraction stability
• Minimal thermal expansion
• Excellent Chemical Resistance
• Compression Controlled Gasket
• Rouging Eliminated
• No gasket extrusion into sanitary tube ID
• No obstruction of flow

• Type I and II Tri-Clamp® Gaskets
• Screen Gaskets
• Sock Gaskets
• Orifice Plate Gaskets
• Gauge Guards
• O-Rings
• Mini Steam Trap Orifice Plates
• ANSI 150# Flange Gasket
• ANSI 300# Flange Gasket
• I-Line Gaskets
• APC Gaskets
• John Perry Gaskets
• Q-Line Gaskets
• DIN/ISO
• X-Ray Detectable
• Metal Detectable
• Custom Gaskets, Profiles, Cord, Scrapers
