Aluminum Hex Wrench

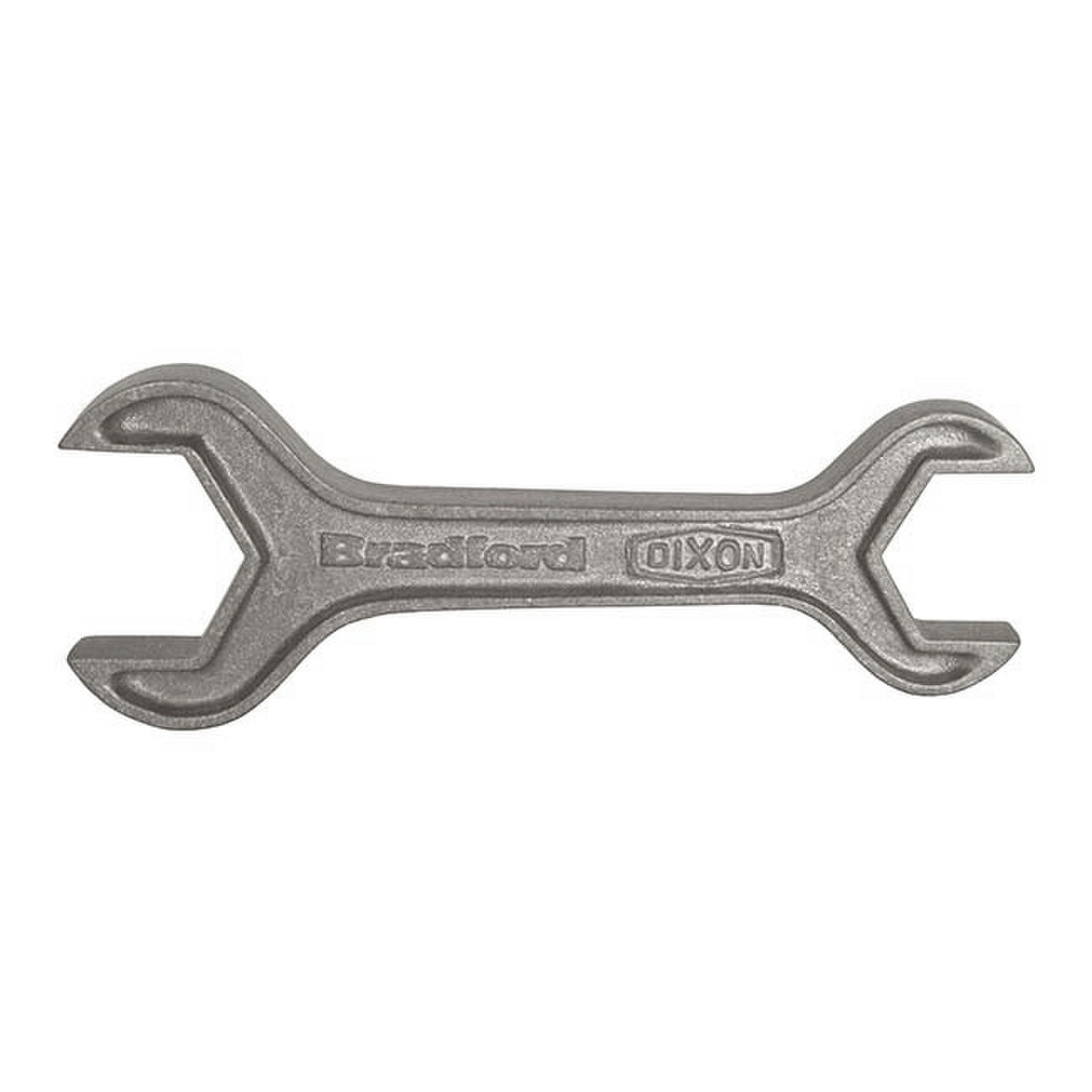

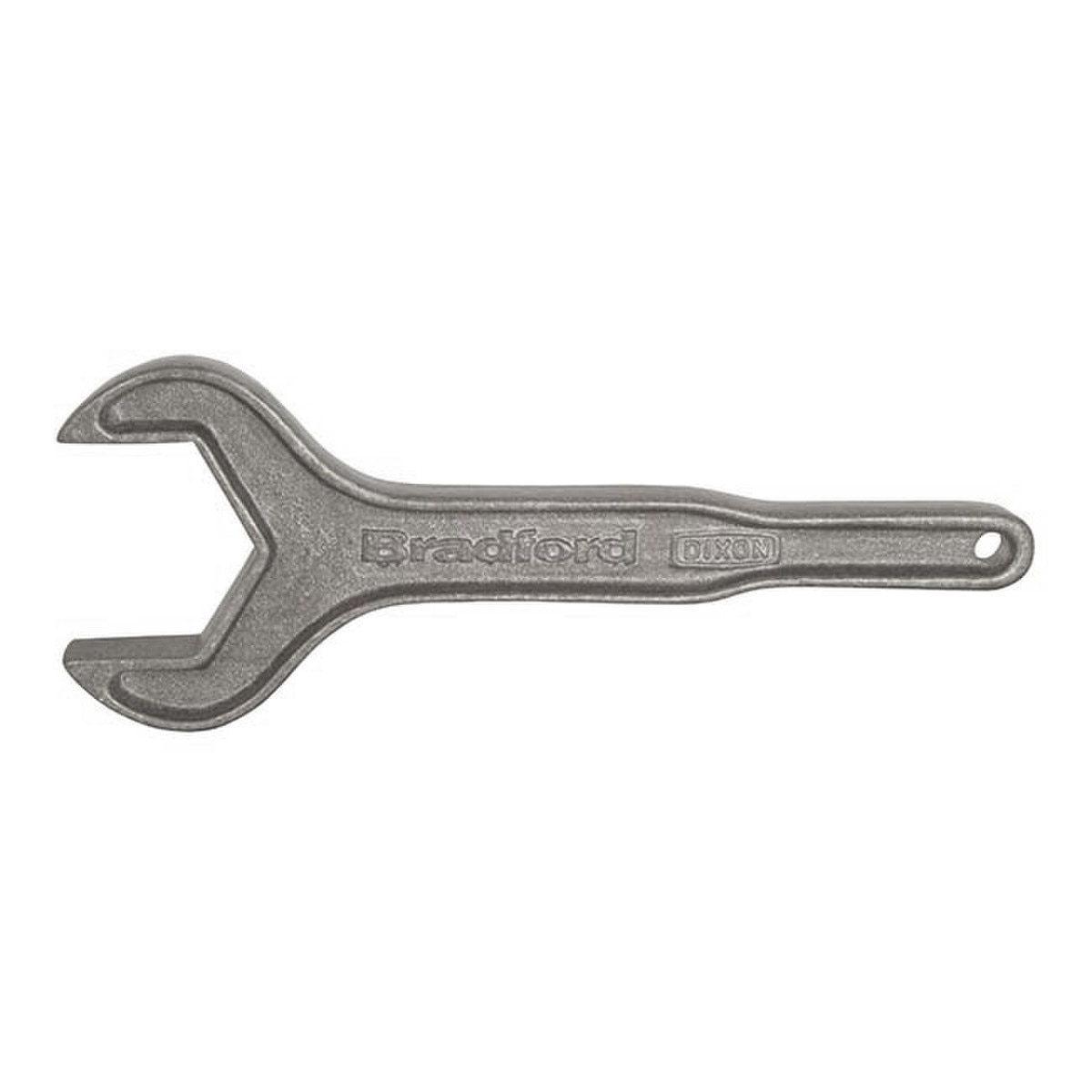

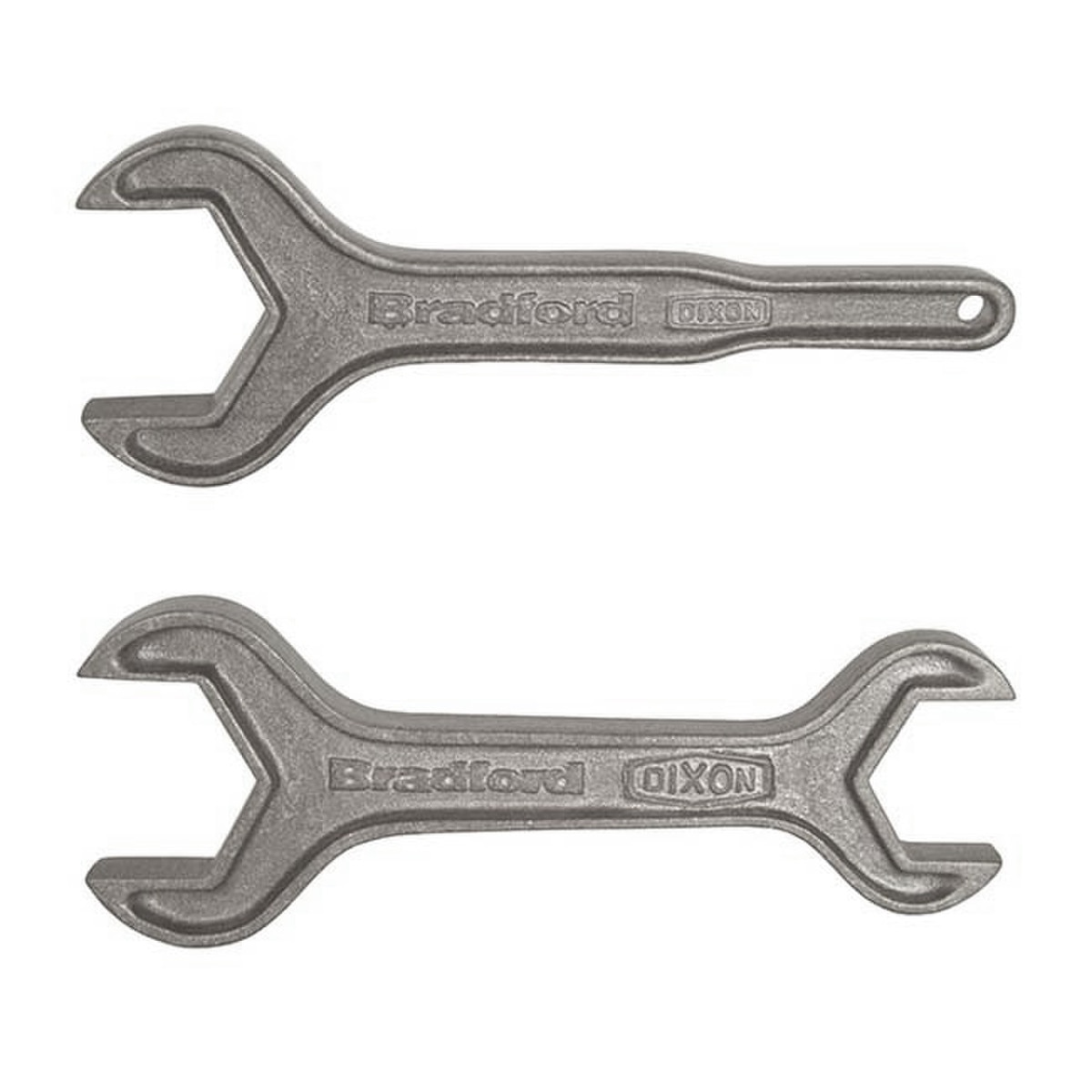

One or two sided bevel seat aluminum hex wrench.
 | ||||||
| Part Number | Tube OD | A | B | Weight (lbs.) | Material | |
|---|---|---|---|---|---|---|
| 25H-100 | 1" | 10.500 | 1.812 | .64 | Aluminum | |
| 25H-150 | 1 1/2" | 12.000 | 2.406 | .86 | Aluminum | |
| 25H-200 | 2" | 14.000 | 3.000 | 1.76 | Aluminum | |
| 25H-250 | 2 1/2" | 16.250 | 3.594 | 2.40 | Aluminum | |
| 25H-300 | 3" | 18.500 | 4.188 | 3.04 | Aluminum | |
| 25H-400 | 4" | 19.500 | 5.438 | 3.62 | Aluminum | |
 | ||||||
| Part Number | Tube OD | A | B | C | Weight (lbs.) | Material |
|---|---|---|---|---|---|---|
| 25H-150100 | 1 1/2" x 1" | 12.000 | 2.406 | 1.812 | 1.00 | Aluminum |
| 25H-200150 | 2" x 1 1/2" | 14.000 | 3.000 | 2.406 | 1.75 | Aluminum |
| 25H-250200 | 2 1/2" x 2" | 16.500 | 3.594 | 3.000 | 2.80 | Aluminum |
| 25H-300200 | 3" x 2" | 18.000 | 4.188 | 3.000 | 3.20 | Aluminum |
| 25H-300250 | 3" 2 1/2" | 18.00 | 4.188 | 3.594 | 3.70 | Aluminum |
