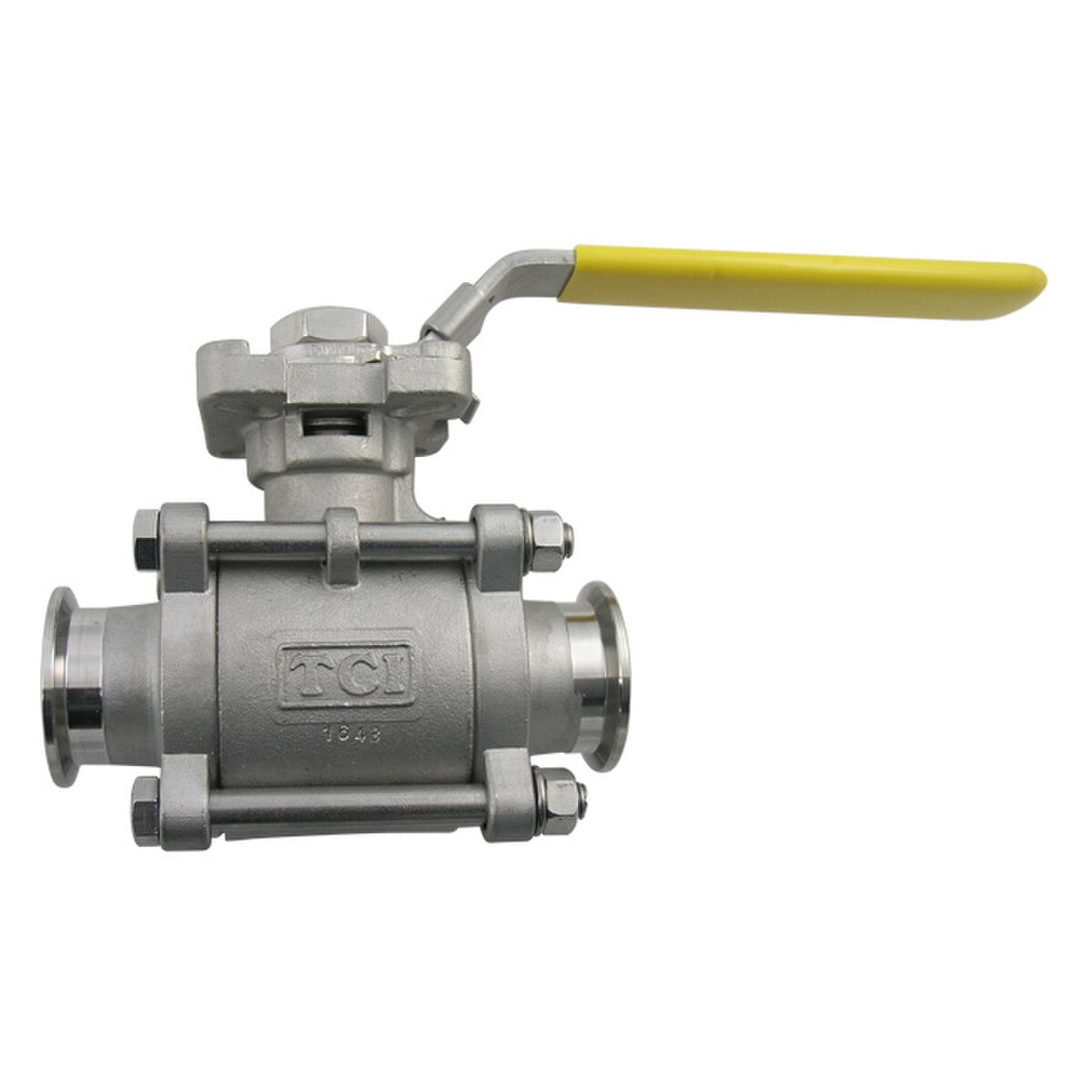

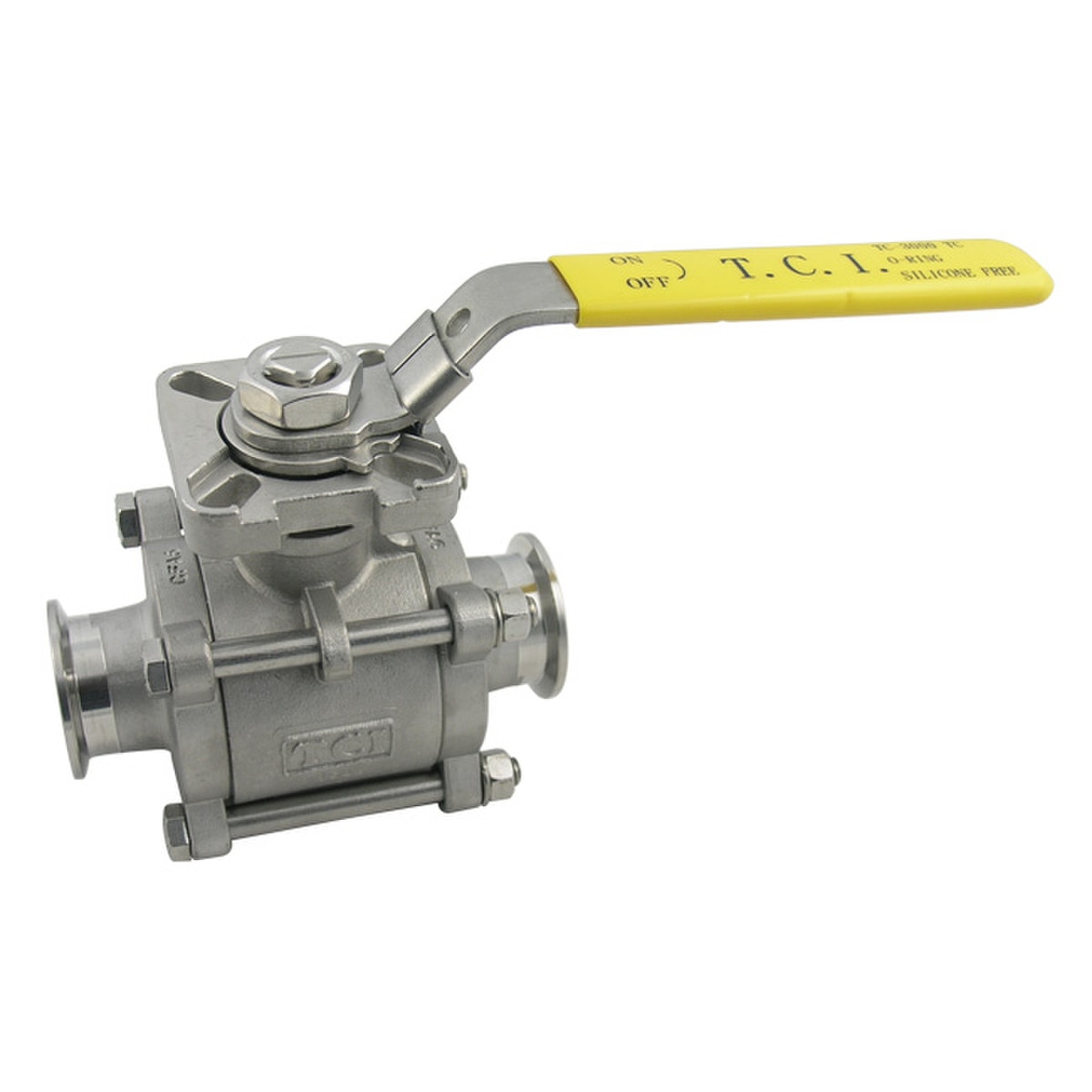

Ta Chen True Port Sanitary Tri-Clamp® 3 Piece Ball Valves (316L Stainless Steel)
Ta Chen TC-3000TC True Port Sanitary Ball Valves are ideal for food, extraction, and general chemical service applications. This Sanitary Tri-Clamp® Ball Valve is constructed with a 316L stainless steel investment cast body and cap with PTFE Cavity Fillers (optional ME-PTFE Seats) and blow out proof adjustable stem. Featuring an internal finish of 10Ra making this valve suitable for sanitary service, other finishes available upon request.
The optional Molecular Enhanced PTFE Seats (ME-PTFE) which has been engineered for superior performance versus traditional virgin PTFE. The main benefit of ME-PTFE is the increased wear resistance, which leads to a much longer service life for your valve seats.
Ta Chen Sanitary Ball Valve Features:
- Working Pressure: 1000 psig (WOG)
- Working Vacuum: 29 inHg
- Operating Temperature: -50°F to 400°F (-45.5°C to 204.4°C)
- 316L Stainless Steel Investment Casting Body and Cap
- Tri-Clamp® End Connections
- PTFE Cavity Fillers (optional ME-PTFE Seats) (optional ME-PTFE Seats)
- 10Ra Internal Finish

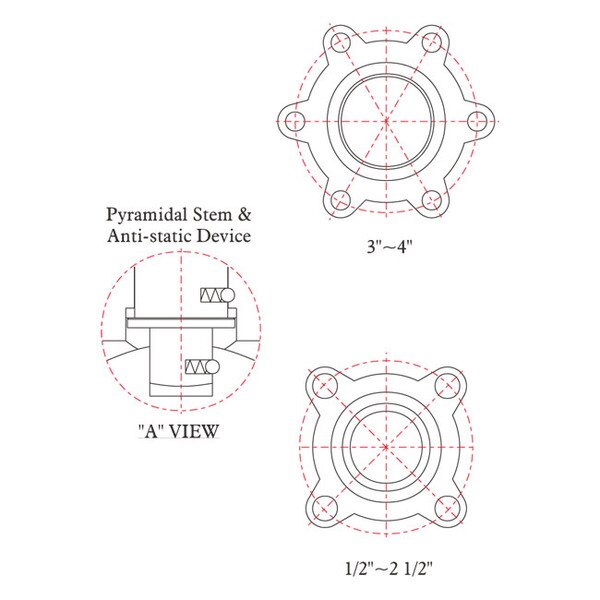

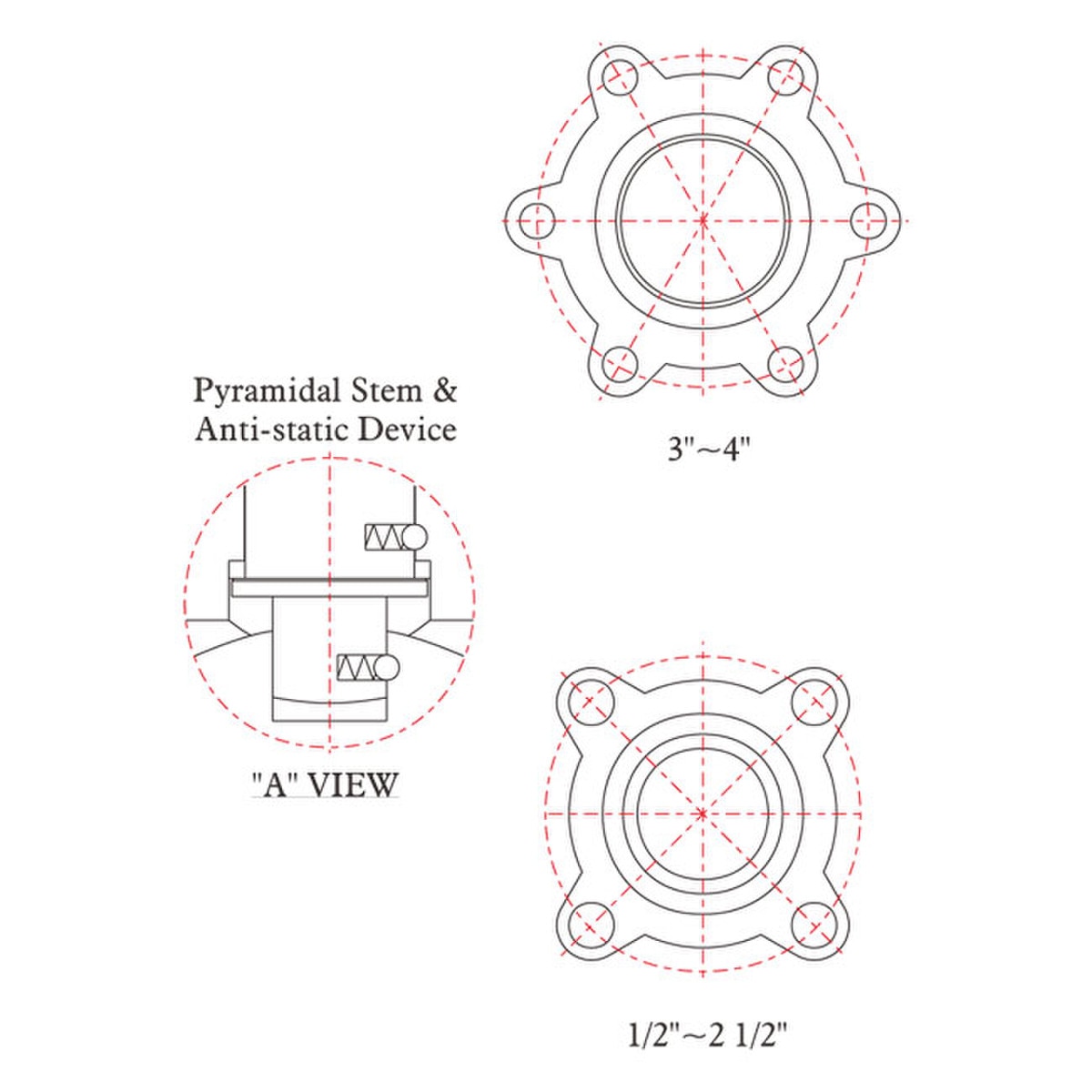

- Blow-out-proof Stem
- Anti-Static Device
- Adjustable Stem Packing
- Handle w/ Locking Device
- Full ISO-5211 Pad for Direct Mount Automation
- For food, extraction and general chemical service
- Test Standard: API 598
 | ||||||||||
| Size | d | D | L | H1 | h | S | T | ISO 5211 | Cv Factor | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.37" | 1.00" | 3.51" | 1.67" | 0.31" | 0.35" | 0.35" | F03 / F04 | 10 | 1.76 lbs |
| 3/4" | 0.63" | 1.00" | 4.00" | 1.83" | 0.39" | 0.35" | 0.35" | F03 / F04 | 28 | 2.31 lbs |
| 1" | 0.87" | 1.98" | 4.51" | 2.34" | 0.45" | 0.43" | 0.35" | F04 / F05 | 60 | 3.41 lbs |
| 1-1/2" | 1.38" | 1.98" | 5.52" | 3.11" | 0.78" | 0.55" | 0.51" | F05 / F07 | 200 | 7.25 lbs |
| 2" | 1.87" | 2.50" | 6.26" | 3.42" | 0.78" | 0.55" | 0.51" | F05 / F07 | 450 | 10.35 lbs |
| 2-1/2" | 2.37" | 3.05" | 6.85" | 4.41" | 1.08" | 0.67" | 0.51" | F07 / F10 | 700 | 20.64 lbs |
| 3" | 2.87" | 3.57" | 8.00" | 4.88" | 1.08" | 0.67" | 0.51" | F07 / F10 | 1000 | 34.14 lbs |
| 4" | 3.83" | 4.67" | 8.90" | 6.22" | 0.94" | 0.67" | 0.79" | F07 / F10 | 2000 | 51.76 lbs |
| Materials List (see image above for reference) | |||
| Item | Description | Material | Quantity |
|---|---|---|---|
| 1 | body | ASTM A351 Gr.CF8M | 1 |
| 2 | cap | ASTM A351 Gr.CF8M | 2 |
| 3 | ball | ASTM A351 Gr.CF8M | 1 |
| 4* | seat | PTFE | 2 |
| 5 | bolt | ASTM A192 Gr.B8 | 4-6 |
| 6* | gasket | PTFE | 2 |
| 7* | thrust washer | PTFE | 1 |
| 8 | stem | ASTM A276 Gr.316 | 1 |
| 9 | o-ring | viton | 1 |
| 10* | packing | ptfe | 1 |
| 11 | ring | ss304 | 1 |
| 12 | belleveille washer | 410 stainless steel | 2 |
| 13 | handle nut | 304 stainless steel | 2 |
| 14 | stopper | 304 stainless steel | 1 |
| 15 | locking plate | 304 stainless steel | 1 |
| 16 | handle | 304 stainless steel | 1 |
| 17 | handle sleeve | vinyl grip | 1 |
| 18 | bolt washer | 304 stainless steel | 4-6 |
| 19 | bolt nut | ASTM A194 Gr.8 | 4-6 |
| 20 | stop washer | 304 stainless steel | 1 |
| *Repair kit includes these items. | |||
