Encapsulated 2-Way 3 Piece Stainless Steel Ball Valve Repair Kit

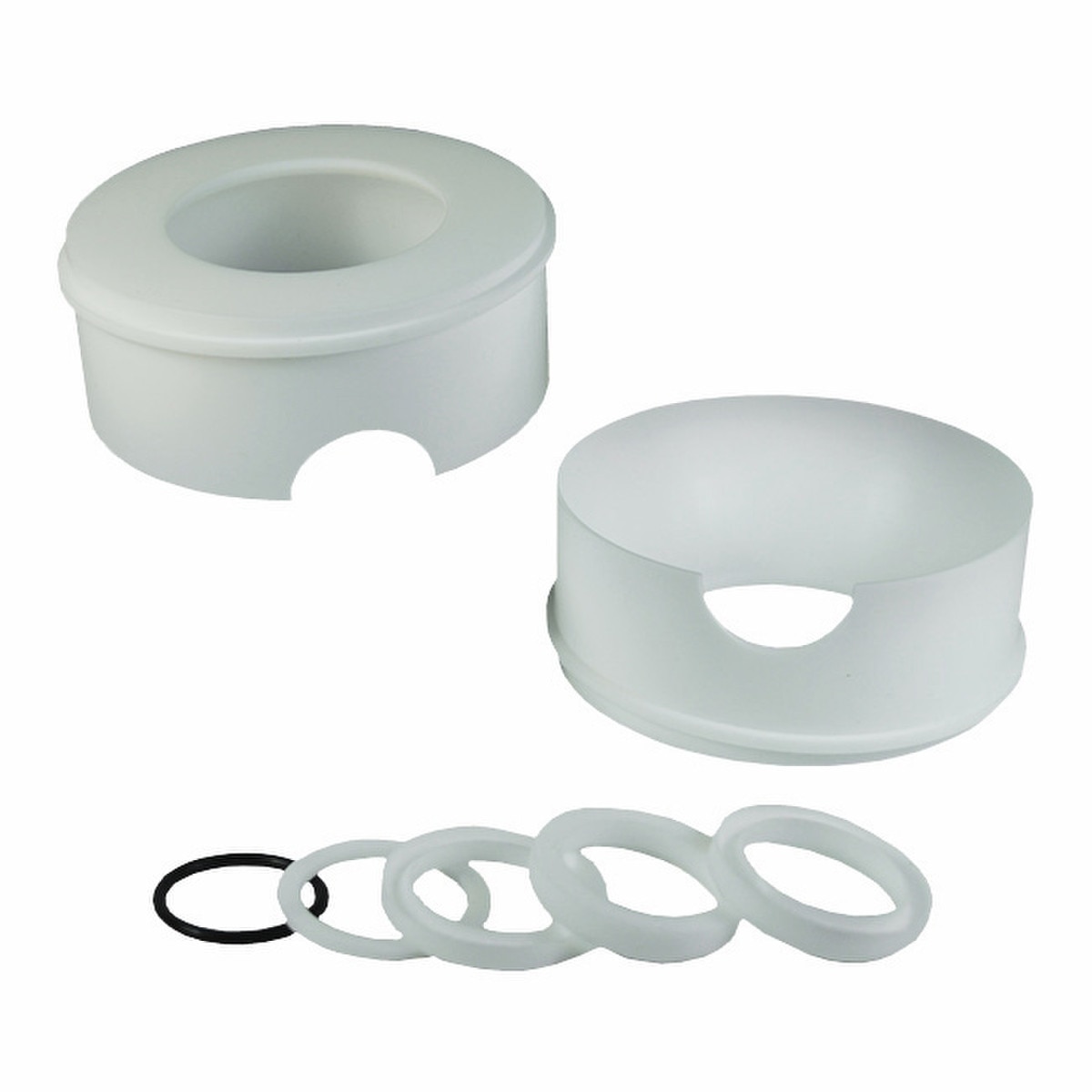

Dixon Sanitary BV2C Ball Valve Repair Kit for Encapsulated 2-Way 3 Piece Stainless Steel Ball Valve. This repair kit includes (1) O-Ring, (1) Thrust Washer, (3) Stem Packings, (2) Encapsulated Seats, and (2) Body Seals. Available in your choice of Virgin PTFE, RTFE, 25% Carbon PTFE, Stainless Steel PTFE, or UHMW.
Seal Materials:
- Virgin PTFE (V) - 100% Virgin Polytetrafluoroethylene (FOOD GRADE)
- Our standard seat material. Ideal for most sanitary services. Specified for applications requiring a low co-efficient of friction. - RTFE (G) - 15% Glass Reinforced Tetrafluoroethylene (FOOD GRADE)
- Slightly higher temperature and pressure rating than PTFE. Specified for applications requiring higher life cycle than PTFE. - 25% Carbon PTFE (C) - 25% Carbon Reinforced Tetrafluoroethylene
- Specified for higher temperature pressure applications. Ideal for steam and thermal fluid applications. Higher cycle than RTFE. - Stainless Steel PTFE (S) - 50% Stainless Steel Reinforced Polytetrafluoroethylene (FOOD GRADE)
- Specified for higher temperature pressure applications in a sanitary process. - UHMW (U) - Ultra-high Molecular Weight Polyethylene(FOOD GRADE)
- Specified for its low modulus of abrasion and minimal property degradation when exposed to moderate levels of radiation. Ideal for applications where fluorocarbons are not acceptable.
 | ||||||||
| Size | A | B | C | D | E | F(mm) | G | H |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 4.9 | 1.5 | 4.3 | 3.0 | 1.9 | 9 | F04 | F03 |
| 3/4" | 4.9 | 1.8 | 4.7 | 3.3 | 2.2 | 9 | F04 | F03 |
| 1" | 5.6 | 2.1 | 4.9 | 3.6 | 2.4 | 11 | F05 | F04 |
| 1 1/2" | 9.5 | 2.7 | 5.6 | 4.4 | 3.1 | 14 | F07 | F05 |
| 2" | 9.5 | 3.1 | 6.4 | 4.8 | 3.7 | 14 | F07 | F05 |
| 2 1/2" | 18.0 | 3.8 | 7.8 | 5.2 | 4.8 | 17 | F10 | F07 |
| 3" | 18.0 | 4.2 | 9 | 5.7 | 5.4 | 17 | F10 | F07 |
| 4" | 18.0 | 5.3 | 9.5 | 6.8 | 8.8 | 22 | F12 | F10 |
