Note: This unit can be furnished with Bevel Seat, I-Line, or Buttweld ends. Please call or email for more information.

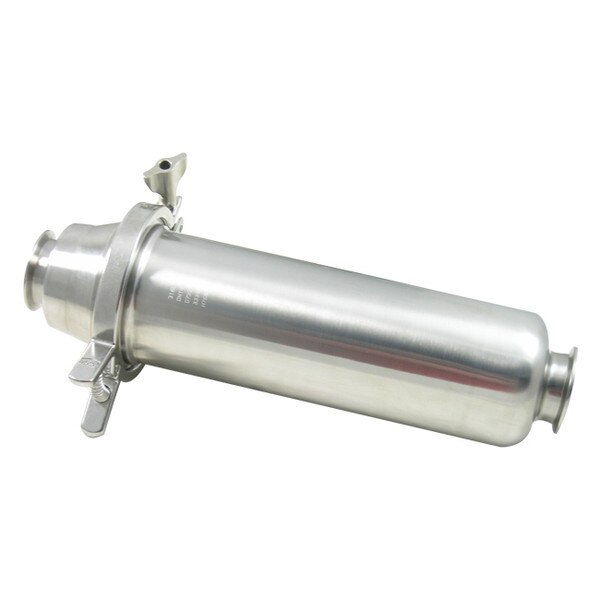

Dixon Sanitary's BSCCQ In-Line Filter / Strainer is capable of acting as either a filter or strainer by simply changing the internal media. This unit can be used to filter particles from 864 microns all the way down to 38 microns. The BSCCQ Filter / Strainers are available with 1" through 3" Tri-Clamp® ends for simple installation. Body and all wetted metal components are constructed of 316L Stainless with a 3A ID/OD finish. Meets 3A 10-04 requirements under the following conditions when mounted vertically and using a 1/4" Perforated Back-Up Tube. Filter / Strainer media sold separately.

Filter / Strainer Contents:

• Inlet / Outlet Body
• Buna Clamp Gasket
• Squeeze Clamp
• Distributor Cap
• Spring
• Perforated Back-Up Tube (1/8" version is not 3A compliant)

What are Filters / Strainers used for?

Filters - A filter uses a disposable media to remover finer particulate from the stream. Dixon Sanitary holds Authorization Number 1446 for the #A Sanitary Standard for Filters using Single Service Media, Number: 10-4. Vertical mounting is necessary to meet 3A 10-04 requirements for minimal product clingage. Click here to view available filter mediums for use with the BSCCQ. Note that filter medium are special order and minimum quantities may apply, please contact for details. Use of filter media will also require two Buna Retaining Rings.

Strainers - A strainer is a device used to separate solids from fluids. Here it is used for larger particulate matter from liquid or gas. It uses cleanable media. Click here to view available mesh strainer screens for use with the BSCCQ. These 316L Stainless Wire Cloth Mesh Over Screens are not 3A compatible.
