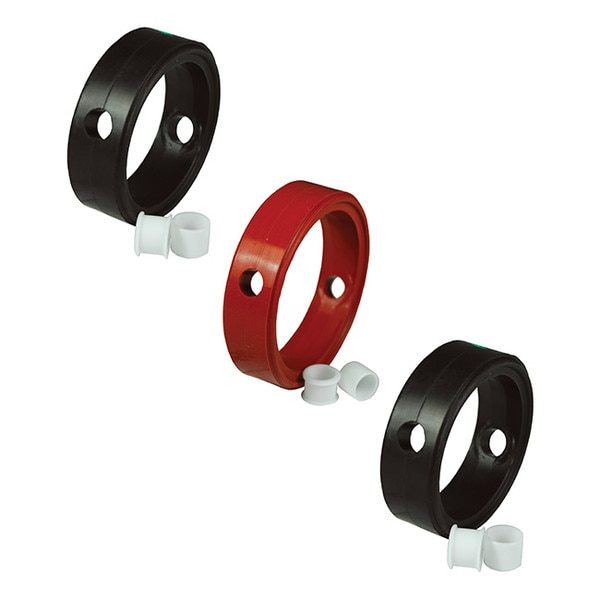

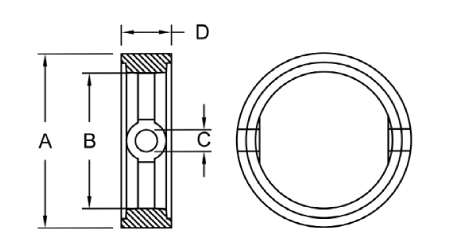

Dixon Sanitary B5102-RK Repair Kits for B5102 Series Butterfly Valves. These OEM seal kits contain one replacement seal and two bushings to repaired damaged or leaking valves. Seat material options include: EPDM (black), silicone (red), or FKM (brown). All kits have PTFE bushings.
All Dixon Sanitary B5102 Butterfly Valves are constructed from 316 Stainless Steel with a 32Ra ID/OD polish. The grooved housing of the B5102 Butterfly Valve connects directly to the corresponding sanitary clamp size ferrules. These valves effectively act as a clamp while also taking up minimal space in the line (just 3/4" for all sizes!). Each valve includes a 3-position reversable handle as standard, but actuated options are also available (fail close, fail open, or double acting). Handles can be modified for lockout/tagout. All valves are 100% hydraulic tested and 100% inspected prior to shipment! Rated for 0.4 inHg of vacuum at 68°F and operation at temperatures from 15°F to 200°F. Available with your choice of seat material (black epdm, red silicone, or brown FKM).
Dixon Sanitary offers a wide selection of stainless steel butterfly valves for use in sanitary process systems. These valves are simple, rugged and above all, dependable. Dixon B5102 Butterfly Valves can be used either as a shutoff valve (on/off service) or as a throttling valve (for flow control). Pneumatic or electric actuators are available for automated control. The slim design, superior craftsmanship, choice materials, top quality strength and surface finish make the B5102 the preference of many industries with sanitary requirements. Various elastomers, end types and accessories make this a highly versatile valve. Typical uses would include isolation of equipment, fill/drain systems, bypass systems and other similar applications.
Dixon B5102 Butterfly Valve Features:
- 316 Stainless Steel Body & Disc
- Dual function as a clamp for your line
- Utilize just 3/4" of line space for all sizes
- 100% Hydraulic Tested
- 100% Inspected
- All Wetted Surfaces Finished to < 32Ra
- Field Serviceable (no special tools)
- Tri-Clamp® or Weld Ends
- EPDM (black), Silicone (red), or FKM Seats (black) Available (6" only EPDM or Silicone, 8" only EPDM)
- Pull, Infinite, or Trigger Handle
- Vertical Canister Style Actuation Available (fail open, fail close, or double acting)
- Vacuum Rating: 0.4 inHg @ 68°F
- Temperature Range: 15°F to 200°F
