Dixon Sanitary B5101 Butterfly Valve - Clamp Ends w/ Pull Handle

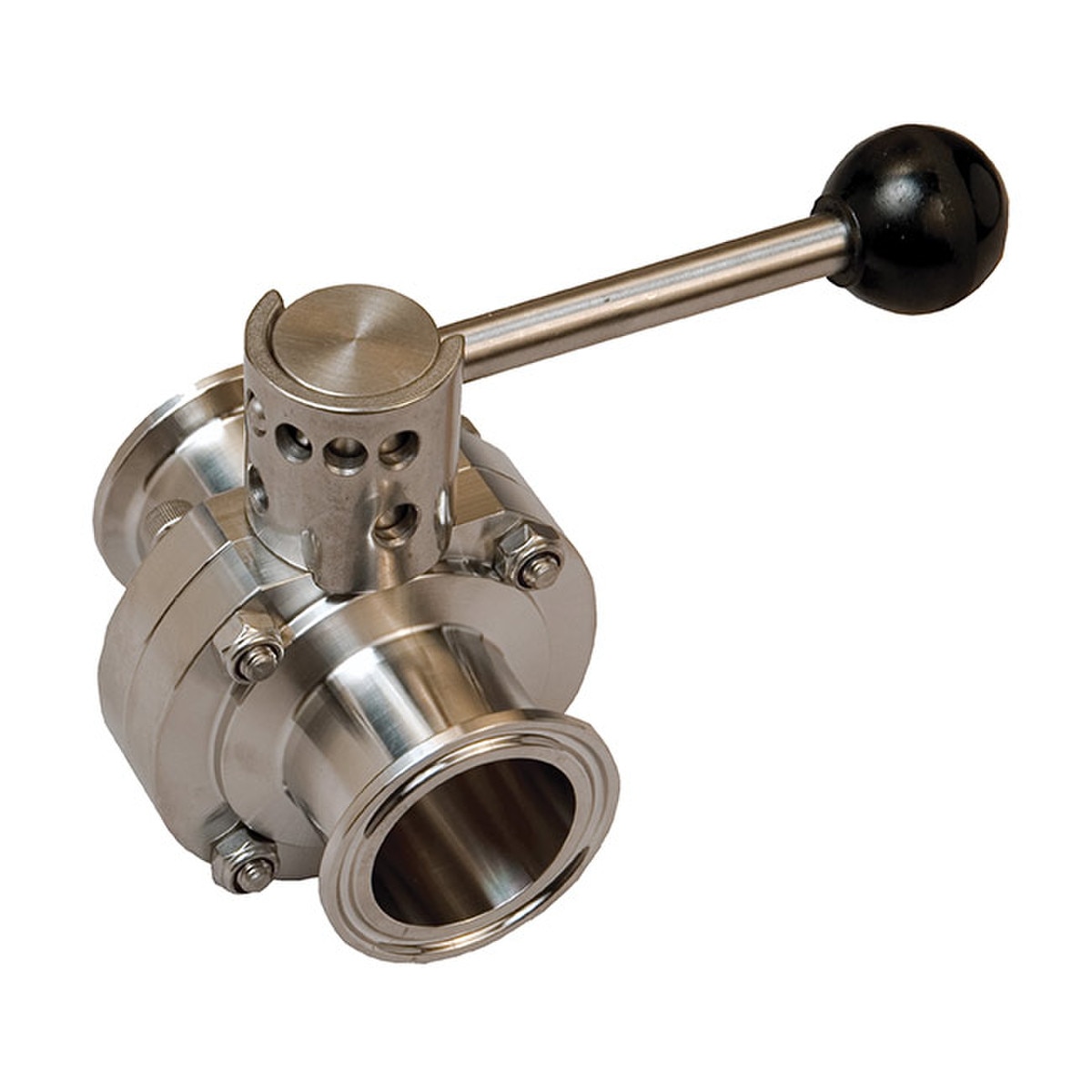

Dixon Sanitary "A" Style B5101 Butterfly Valves featuring clamp ends are available from 1/2" up to 6". Dixon "A" Style B5101 Valves feature their pull style handle with a black polymer knob.
All Dixon Sanitary B5101 Butterfly Valves are constructed from 316 Stainless Steel with a 32Ra ID/OD polish. Available with your choice of end connection (Tri-Clamp® or weld), seat material (black epdm, red silicone, or brown FKM), and handle style (pull, infinite, or trigger), or actuator (fail close, fail open, or double acting). All valves are 100% hydraulic tested and 100% inspected prior to shipment! Rated for 0.4 inHg of vacuum at 68°F and operation at temperatures from 15°F to 200°F.
Dixon Sanitary offers a wide selection of stainless steel butterfly valves for use in sanitary process systems. These valves are simple, rugged and above all, dependable. Dixon B5101 Butterfly Valves can be used either as a shutoff valve (on/off service) or as a throttling valve (for flow control). Pneumatic or electric actuators are available for automated control. The slim design, superior craftsmanship, choice materials, top quality strength and surface finish make the B5101 the preference of many industries with sanitary requirements. Various elastomers, end types and accessories make this a highly versatile valve. Typical uses would include isolation of equipment, fill/drain systems, bypass systems and other similar applications.
Dixon B5101 Butterfly Valve Features:
- 316 Stainless Steel Body & Disc
- 100% Hydraulic Tested
- 100% Inspected
- All Wetted Surfaces Finished to < 32Ra
- Field Serviceable (no special tools)
- Tri-Clamp® or Weld Ends
- EPDM (black), Silicone (red), or FKM Seats (black) Available (6" only EPDM or Silicone, 8" only EPDM)
- Pull, Infinite, or Trigger Handle
- Vertical Canister Style Actuation Available (fail open, fail close, or double acting)
- Vacuum Rating: 0.4 inHg @ 68°F
- Temperature Range: 15°F to 200°F
 | |||||||||
| Part Number | Size | A | B | C | D | E | F | G | Seat Material |
| B5101S050CC-A | 1/2" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | .37" | 3.1" | Silicone |
| B5101S075CC-A | 3/4" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | .62" | 3.1" | Silicone |
| B5101S100CC-A | 1" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | 0.9" | 3.1" | Silicone |
| B5101S150CC-A | 1-1/2" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | 1.4" | 3.1" | Silicone |
| B5101S200CC-A | 2" | 4.4" | 3.1" | 1.4" | 0.9" | 3.8" | 1.9" | 3.9" | Silicone |
| B5101S250CC-A | 2-1/2" | 4.4" | 3.5" | 1.4" | 0.9" | 3.8" | 2.4" | 4.6" | Silicone |
| B5101S300CC-A | 3" | 6.2" | 3.8" | 1.3" | 1.2" | 4.1" | 2.9" | 5.2" | Silicone |
| B5101S400CC-A | 4" | 6.2" | 4.5" | 1.3" | 1.2" | 4.8" | 3.8" | 6.7" | Silicone |
| B5101S600CC-A | 6" | 11.5" | 5.5" | 1.3" | 1.2" | 5.5" | 5.8" | 8.5" | Silicone |
| B5101E050CC-A | 1/2" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | .37" | 3.1" | EPDM |
| B5101E075CC-A | 3/4" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | .62" | 3.1" | EPDM |
| B5101E100CC-A | 1" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | 0.9" | 3.1" | EPDM |
| B5101E150CC-A | 1-1/2" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | 1.4" | 3.1" | EPDM |
| B5101E200CC-A | 2" | 4.4" | 3.1" | 1.4" | 0.9" | 3.8" | 1.9" | 3.9" | EPDM |
| B5101E250CC-A | 2-1/2" | 4.4" | 3.5" | 1.4" | 0.9" | 3.8" | 2.4" | 4.6" | EPDM |
| B5101E300CC-A | 3" | 6.2" | 3.8" | 1.3" | 1.2" | 4.1" | 2.9" | 5.2" | EPDM |
| B5101E400CC-A | 4" | 6.2" | 4.5" | 1.3" | 1.2" | 4.8" | 3.8" | 6.7" | EPDM |
| B5101E600CC-A | 6" | 11.5" | 5.5" | 1.3" | 1.2" | 5.5" | 5.8" | 8.5" | EPDM |
| B5101E800CC-A | 8" | 18.0" | 6.9" | 1.6" | 1.2" | 4.9" | 7.8" | 11.2" | EPDM |
| B5101V050CC-A | 1/2" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | .37" | 3.1" | FKM |
| B5101V075CC-A | 3/4" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | .62" | 3.1" | FKM |
| B5101V100CC-A | 1" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | 0.9" | 3.1" | FKM |
| B5101V150CC-A | 1-1/2" | 4.4" | 2.8" | 1.4" | 0.9" | 3.5" | 1.4" | 3.1" | FKM |
| B5101V200CC-A | 2" | 4.4" | 3.1" | 1.4" | 0.9" | 3.8" | 1.9" | 3.9" | FKM |
| B5101V250CC-A | 2-1/2" | 4.4" | 3.5" | 1.4" | 0.9" | 3.8" | 2.4" | 4.6" | FKM |
| B5101V300CC-A | 3" | 6.2" | 3.8" | 1.3" | 1.2" | 4.1" | 2.9" | 5.2" | FKM |
| B5101V400CC-A | 4" | 6.2" | 4.5" | 1.3" | 1.2" | 4.8" | 3.8" | 6.7" | FKM |
B5101 Bill of Materials | ||||
| Item Number | Description | Material | Quantity | Type |
| 1C | sprocket | CF8 | 1 | Trigger Handle |
| 2C | handle | CF8 | 1 | Trigger Handle |
| 3C | hex socket bolt | 304 | 1 | Trigger Handle |
| 4C | pin | 304 | 1 | Trigger Handle |
| 5C | spring | 304 | 1 | Trigger Handle |
| 6C | trigger | CF8 | 1 | Trigger Handle |
| 1B | hub | CF8 | 1 | Infinite Handle |
| 2B | hex socket screw | 304 | 1 | Infinite Handle |
| 3B | handle shaft | 304 | 1 | Infinite Handle |
| 4B | spring | polymer | 1 | Infinite Handle |
| 5B | knob | CF8 | 1 | Infinite Handle |
| 1A | hub housing | CF8 | 1 | Pull Handle |
| 2A | hub | CF8 | 1 | Pull Handle |
| 3A | handle shaft | 304 | 1 | Pull Handle |
| 4A | hex socket screw | 304 | 1 | Pull Handle |
| 5A | spring | 304 | 1 | Pull Handle |
| 6A | knob | polymer | 1 | Pull Handle |
| 1 | body half | 316 | 2 | Valve |
| 2 | disc | 316 | 1 | Valve |
| 3 | seat | Silicone, EPDM, FKM | 1 | Valve |
| 4 | bushing | polyacetal | 2 | Valve |
| 5 | hex nut | 304 | 4 | Valve |
| 6 | bolt | 304 | 4 | Valve |
| 6W | optional wing nut | 304 | 4 | Valve |
| B5101 Seat Dimensions | ||||
| Size | A | B | C | D |
|---|---|---|---|---|
| 1/2", 3/4", & 1" | 1.42" | 0.83" | 0.37" | 0.77" |
| 1-1/2" | 1.93" | 1.34" | 0.37" | 0.77" |
| 2" | 2.56" | 1.73" | 0.37" | 0.78" |
| 2-1/2" | 3.03" | 2.35" | 0.46" | 0.91" |
| 3" | 3.66" | 2.80" | 0.55" | 1.10" |
| 4" | 4.96" | 3.86" | 0.62" | 1.43" |
| 6" | 6.83" | 5.79" | 0.62" | 1.70" |
| 8" | 9.32 | 7.89" | 0.67" | 1.59" |
