Dixon Sanitary Quick Weld Clamp Ferrules

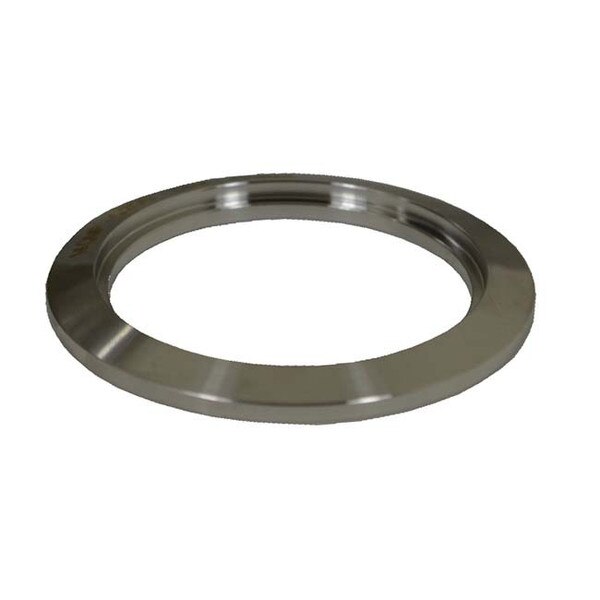

Dixon Sanitary 14QMP Quick Weld Ferrules feature are a low profile ferrule face that is counterbored to slip over sanitary OD tubing. These Tri-Clamp® Ferrules can easily be fillet welded to your tubing for a quick and simple installation. Due to the nature of a socket weld versus a traditional buttweld we only recommend these fittings for low demand applications that aren't subject to high mechanical stresses or heat cycling. Features 100% 304 Stainless Steel construction and standard Tri-Clamp® ferrule face. These fitting do not carry a 3A stamp, but are polished to 3A specifications. They are intended for non-hygienic applications.

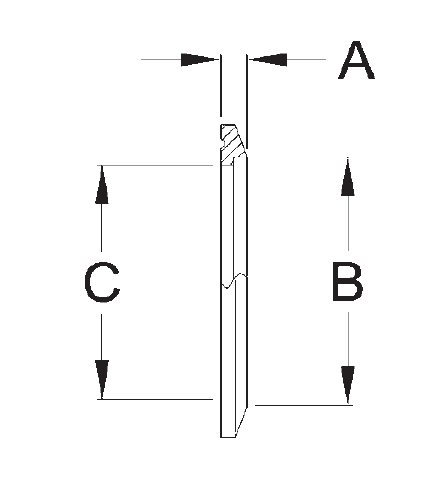

Part Number | Tube OD | A | B | C | Material |
---|---|---|---|---|---|
14QMP-G100 | 1" | 0.290" | 1.005" | 0.870" | 304 Stainless Steel |
14QMP-G150 | 1-1/2" | 0.199" | 1.505" | 1.370" | 304 Stainless Steel |
14QMP-G200 | 2" | 0.205" | 2.005" | 1.870" | 304 Stainless Steel |
14QMP-G250 | 2-1/2" | 0.210" | 2.505" | 2.370" | 304 Stainless Steel |
14QMP-G300 | 3" | 0.257" | 3.005" | 2.870" | 304 Stainless Steel |
14QMP-G400 | 4" | 0.235" | 4.005" | 3.834" | 304 Stainless Steel |
14QMP-G600 | 6" | 0.321" | 6.005" | 5.782" | 304 Stainless Steel |
