• Weld x Weld x Clamp Tee, 316L SS

Weld x Weld x Clamp Tee, 316L SS

(0)No Reviews yet
Back

Weld x Weld x Clamp Tee made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)
  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

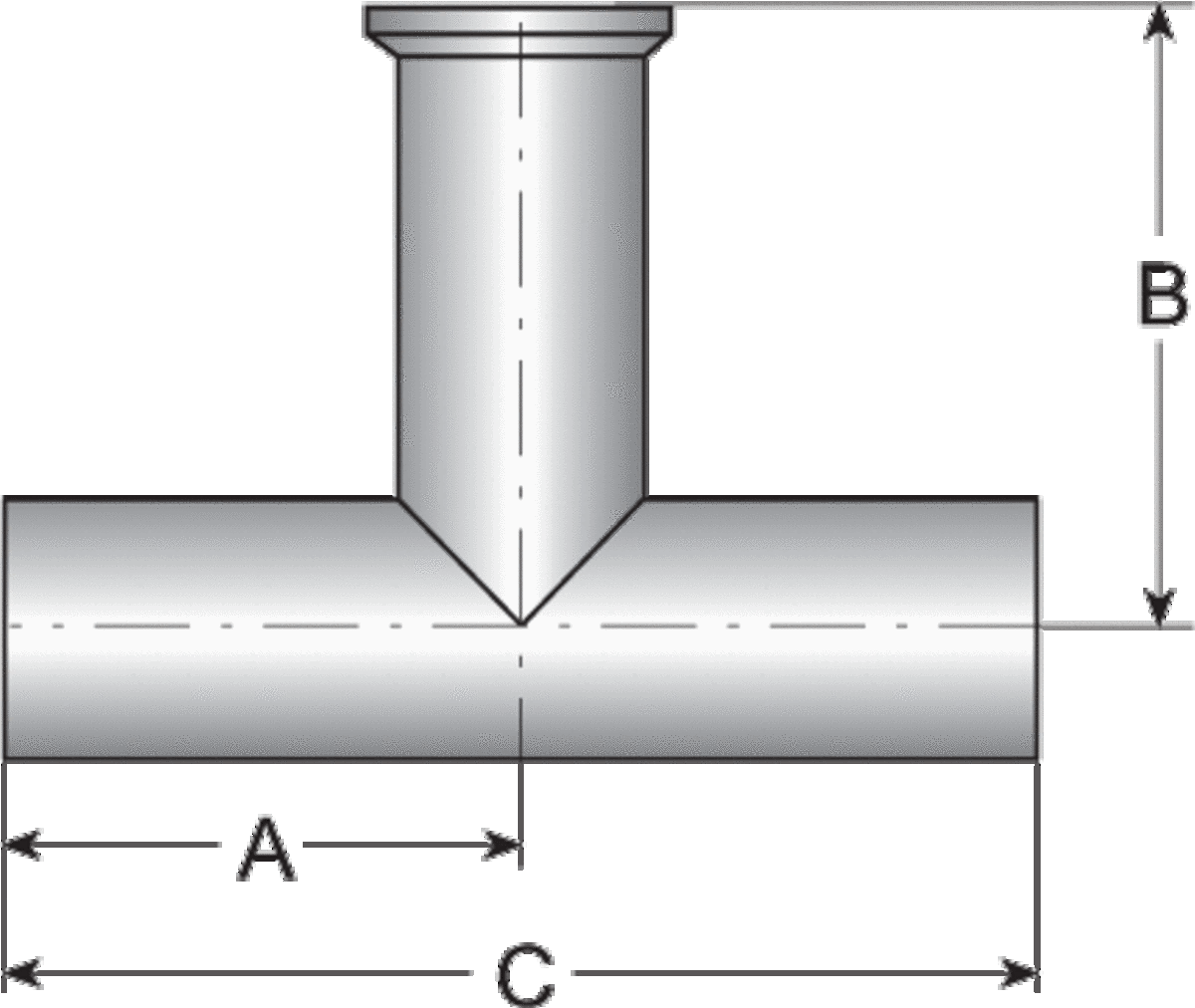

    Ordering CodeNominal Size(in.)A (in.)A (mm)B (in.)B (mm)C (in.)C (mm)
    TE7WWC6L.5-..1/21.875in.47.6mm2.250in.57.20mm3.750in.95.2mm
    TE7WWC6L.75-..3/42.000in.50.8mm2.375in.60.30mm4.000in.101.6mm
    TE7WWC6L1.0-..12.125in.54.0mm2.625in.66.68mm4.250in.108.0mm
    TE7WWC6L1.5-..1 1/22.375in.60.3mm2.875in.73.03mm4.750in.120.6mm
    TE7WWC6L2.0-..22.875in.73.0mm3.375in.85.70mm5.750in.146.0mm
    TE7WWC6L2.5-..2 1/23.125in.79.4mm3.625in.92.08mm6.250in.158.8mm
    TE7WWC6L3.0-..33.375in.85.7mm3.875in.98.43mm6.750in.171.4mm
    TE7WWC6L4.0-..44.125in.104.8mm4.750in.120.65mm8.250in.209.6mm
    TE7WWC6L6.0-..65.625in.142.9mm7.125in.181.0mm11.250in.285.8mm
