• Weld x Weld Short Concentric Reducer, 316L SS

Weld x Weld Short Concentric Reducer, 316L SS

(0)No Reviews yet
Back

Weld x Weld Short Concentric Reducer made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

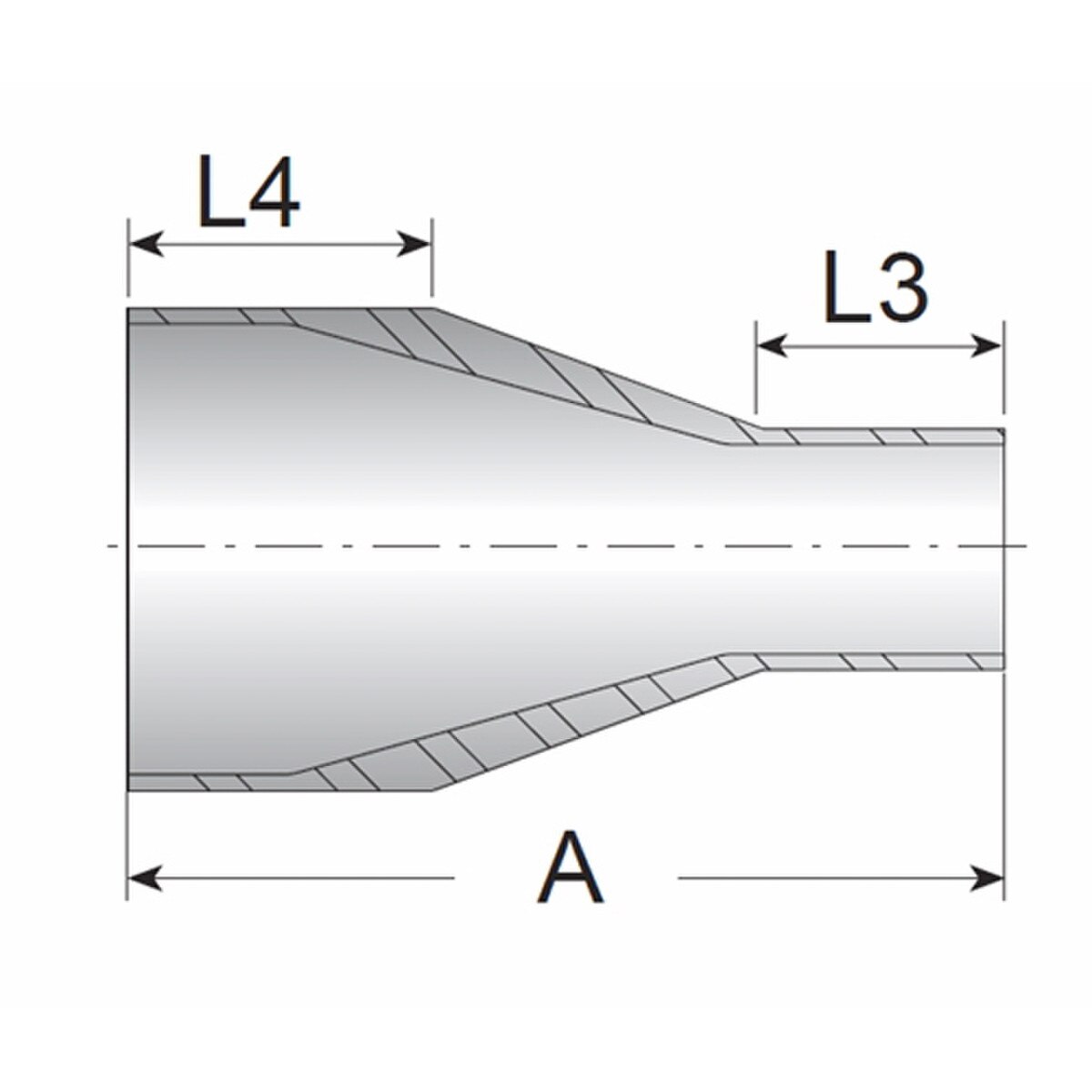

    Ordering CodeNominal Size(in.)A (in.)A (mm)L3 (in.)L3 (mm)L4 (in.)L4 (mm)
    TE31SWW6L.375x.25-..3/8 x 1/41.625in.41.275mm0.750in.19.05mm0.750in.19.05mm
    TE31SWW6L.5x.25-..1/2 x 1/41.875in.47.625mm0.750in.19.05mm1.000in.25.4mm
    TE31SWW6L.5x.375-..1/2 x 3/81.875in.47.625mm0.750in.19.05mm1.000in.25.4mm
    TE31SWW6L.75x.375-..3/4 x 3/82.000in.50.8mm0.750in.19.05mm1.000in.25.4mm
    TE31SWW6L.75x.5-..3/4 x 1/22.125in.53.975mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L1.0x.5-..1 x 1/22.500in.63.5mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L1.0x.75-..1 x 3/42.125in.53.975mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L1.5x.75-..1 1/2 x 3/43.000in.76.2mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L1.5x1.0-..1 1/2 x 12.500in.63.5mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L2.0x1.0-..2 x 13.375in.85.725mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L2.0x1.5-..2 x 1 1/22.500in.63.5mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L2.5x1.5-..2 1/2 x 1 1/23.375in.85.725mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L2.5x2.0-..2 1/2 x 22.500in.63.5mm1.000in.25.4mm1.000in.25.4mm
    TE31SWW6L3.0x1.5-..3 x 1 1/24.250in.107.95mm1.000in.25.4mm1.500in.38.1mm
    TE31SWW6L3.0x2.0-..3 x 23.375in.85.725mm1.000in.25.4mm1.500in.38.1mm
    TE31SWW6L3.0x2.5-..3 x 2 1/22.625in.66.675mm1.000in.25.4mm1.500in.38.1mm
    TE31SWW6L4.0x2.0-..4 x 25.125in.130.175mm1.000in.25.4mm1.500in.38.1mm
    TE31SWW6L4.0x2.5-..4 x 2 1/24.250in.107.95mm1.000in.25.4mm1.500in.38.1mm
    TE31SWW6L4.0x3.0-..4 x 33.875in.98.425mm1.500in.38.1mm1.500in.38.1mm
    TE31SWW6L6.0x3.0-..6 x 37.250in.184.15mm1.500in.38.1mm2.000in.50.8mm
    TE31SWW6L6.0x4.0-..6 x 45.625in.142.875mm1.500in.38.1mm2.000in.50.8mm
