VNE Plain Bevel Seat Ferrules - Short

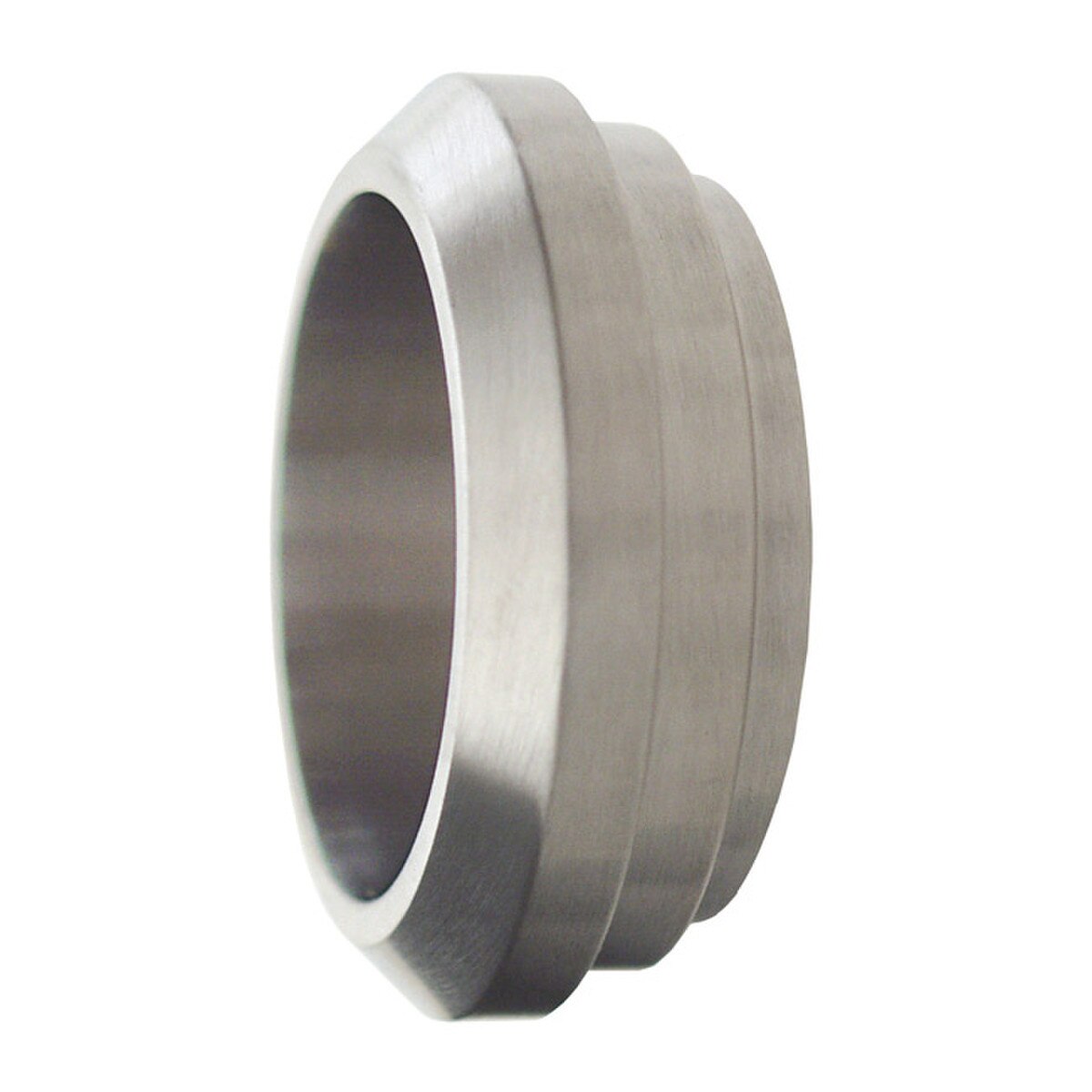

VNE 14PR Plain Bevel Seat Short Ferrules are available in 304 or 316L Stainless Steel from 1" up to 4". These stainless steel plain bevel seat ferrules are supplied with a 3A sanitary polished finish (32 Ra ID/OD).

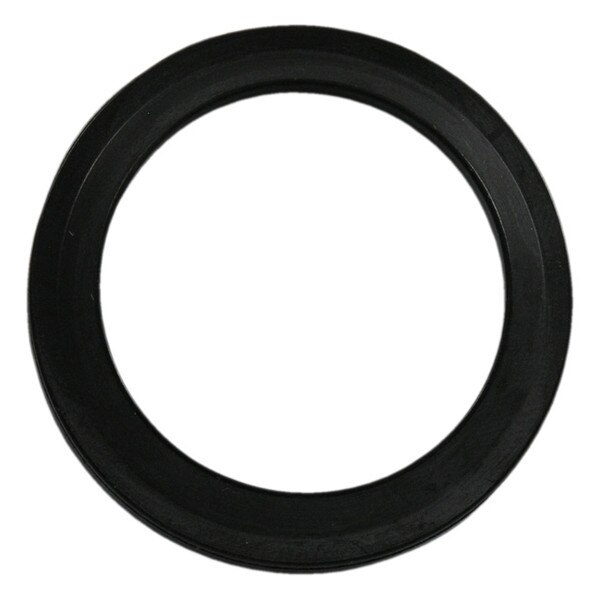

Bevel Seat Fittings are used on process equipment and piping to ensure rigidity of the system. Bevel Seat Unions consist of a threaded bevel seat ferrule mated with a plain bevel ferrule. Both styles are available in 304 of 316L Stainless Steel. Hex union nuts made of only 304 Stainless Steel are used to complete the union. Gaskets for VNE Bevel Seat Unions are not required for positive shut-off, but may be purchased upon request. VNE's bevel seat fittings meet all 3A requirements.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | ||||
| Part Number | Tube OD | A | B | Material |
|---|---|---|---|---|
| 14PR1.0 | 1" | 0.687" | 0.870" | 304 Stainless Steel |
| 14PR1.5 | 1-1/2" | 0.687" | 1.370" | 304 Stainless Steel |
| 14PR2.0 | 2" | 0.718" | 1.870" | 304 Stainless Steel |
| 14PR2.5 | 2-1/2" | 0.843" | 2.370" | 304 Stainless Steel |
| 14PR3.0 | 3" | 0.937" | 2.870" | 304 Stainless Steel |
| 14PR4.0 | 4" | 1.000" | 3.834" | 304 Stainless Steel |
| 14PR-6L1.0 | 1" | 0.687" | 0.870" | 316L Stainless Steel |
| 14PR-6L1.5 | 1-1/2" | 0.687" | 1.370" | 316L Stainless Steel |
| 14PR-6L2.0 | 2" | 0.718" | 1.870" | 316L Stainless Steel |
| 14PR-6L2.5 | 2-1/2" | 0.843" | 2.370" | 316L Stainless Steel |
| 14PR-6L3.0 | 3" | 0.937" | 2.870" | 316L Stainless Steel |
| 14PR-6L4.0 | 4" | 1.000" | 3.834" | 316L Stainless Steel |
