Heavy Duty Sanitary Clamps - VNE High Pressure Bolted

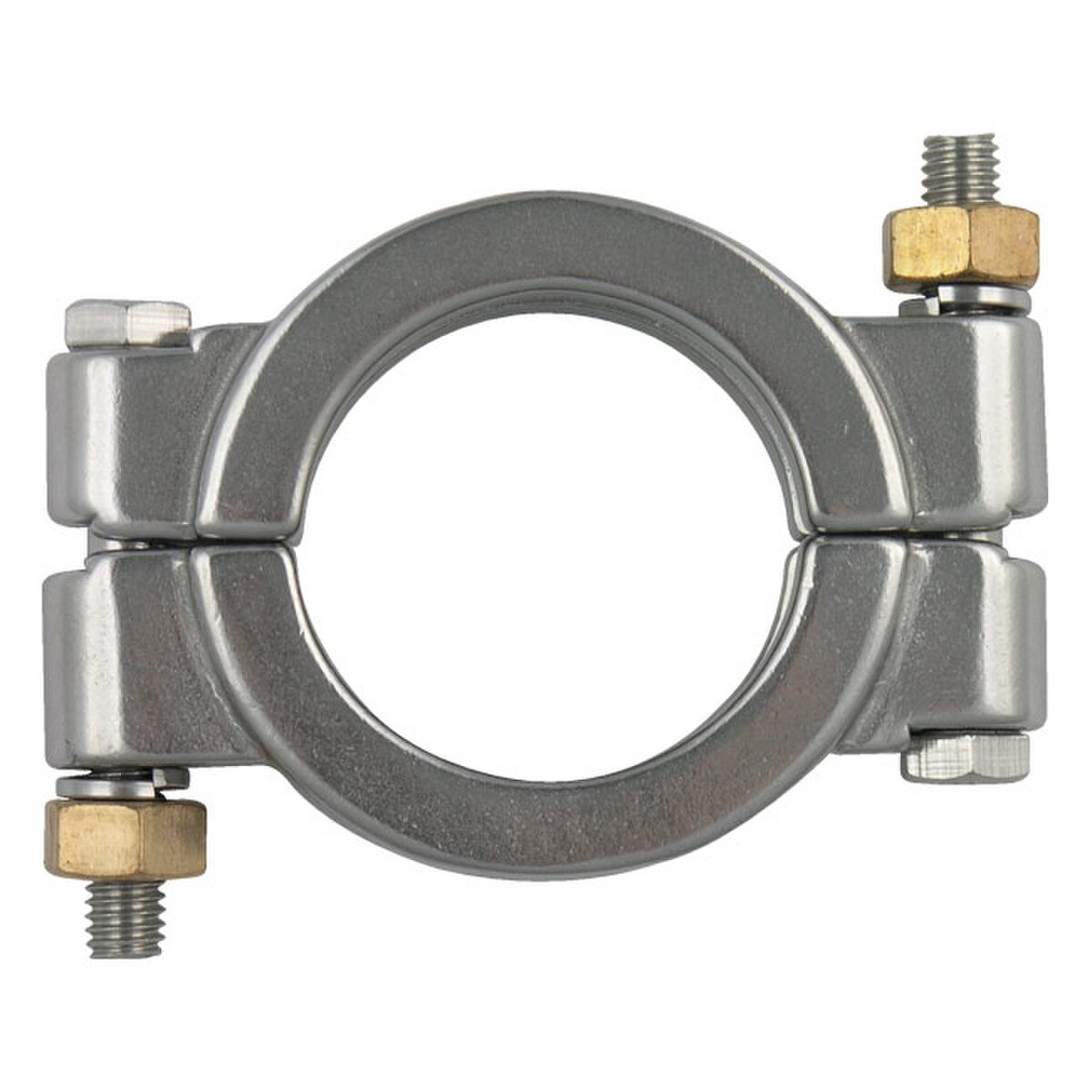

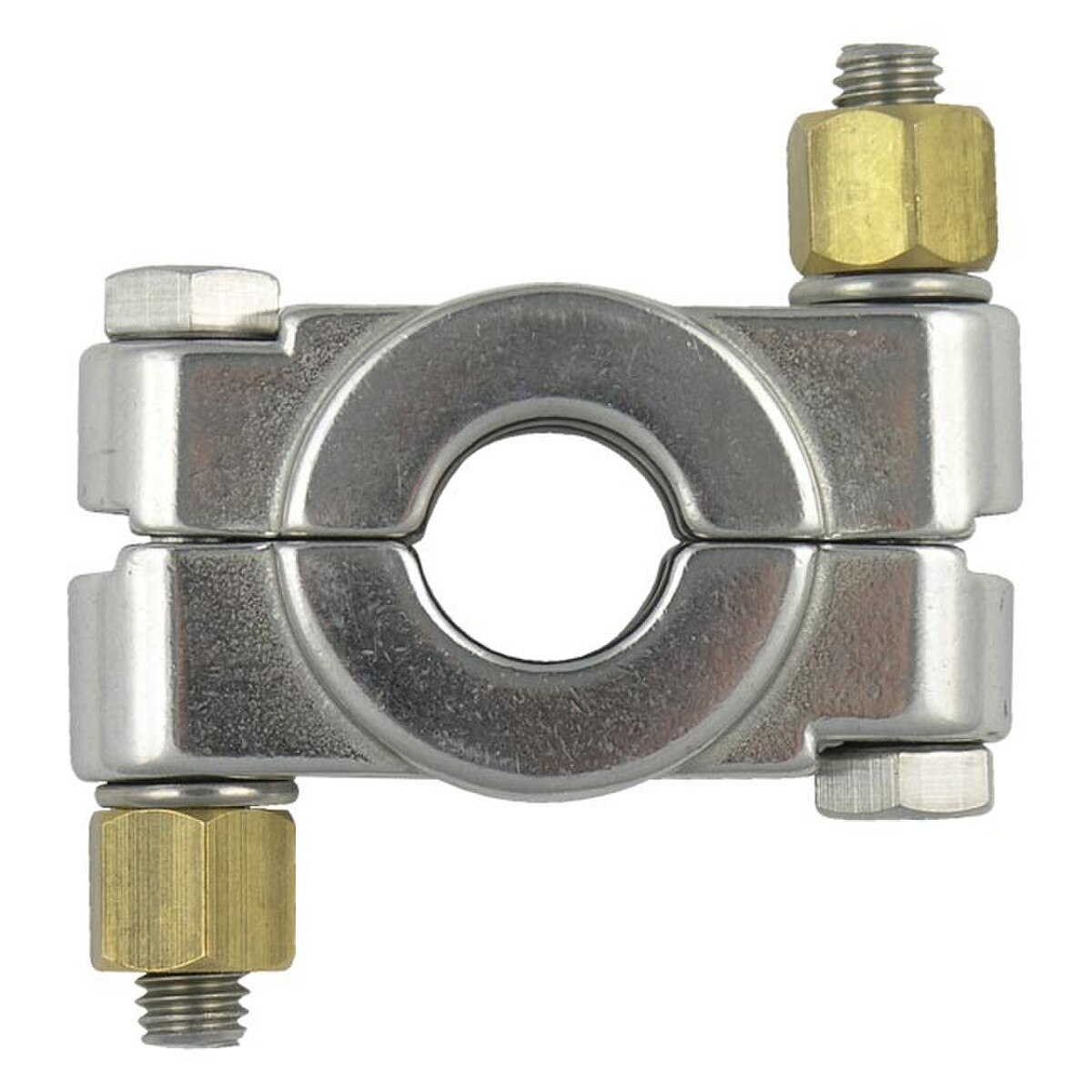

VNE 13MHP High Pressure Clamps are constructed from 304 Stainless Steel for long lasting performance. High pressure sanitary clamps are capable of withstanding nearly twice the pressure of a like sized hinge clamp. High pressure clamps are often a necessity where temperature fluctuations occur and PTFE gaskets are installed.
Clamp style fittings are most popular due to the easy assembly and breakdown of process lines and equipment for repair or maintenance. VNE Clamp Fittings are offered in 304 and 316L Stainless Steel and meet all 3A requirements.
Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads. Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | ||||
| Part Number | Tube OD | A | Service Pressure Rating @ 70°F* | Service Pressure Rating @ 250°F* |
|---|---|---|---|---|
| 13MHP.75 | 1/2" & 3/4" | 1.125" | 1500 psi | 1200 psi |
| 13MHP1.5 | 1" & 1-1/2" | 2.046" | 1500 psi | 1200 psi |
| 13MHP2.0 | 2" | 2.578" | 1000 psi | 800 psi |
| 13MHP2.5 | 2-1/2" | 3.110" | 1000 psi | 800 psi |
| 13MHP3.0 | 3" | 3.640" | 1000 psi | 800 psi |
| 13MHP4.0 | 4" | 4.744" | 1000 psi | 800 psi |
| 13MHP6.0 | 6" | 6.632" | 300 psi | 200 psi |
| * Service ratings are based upon hydrostatic tests using Standard Molded Buna-N gasket material with proper expansion of ferrules, joint assembly, and the absence of shock pressure. All ratings systems are dependent upon related components in the system and proper installation | ||||
