VNE Heavy Duty E-Line Clamps

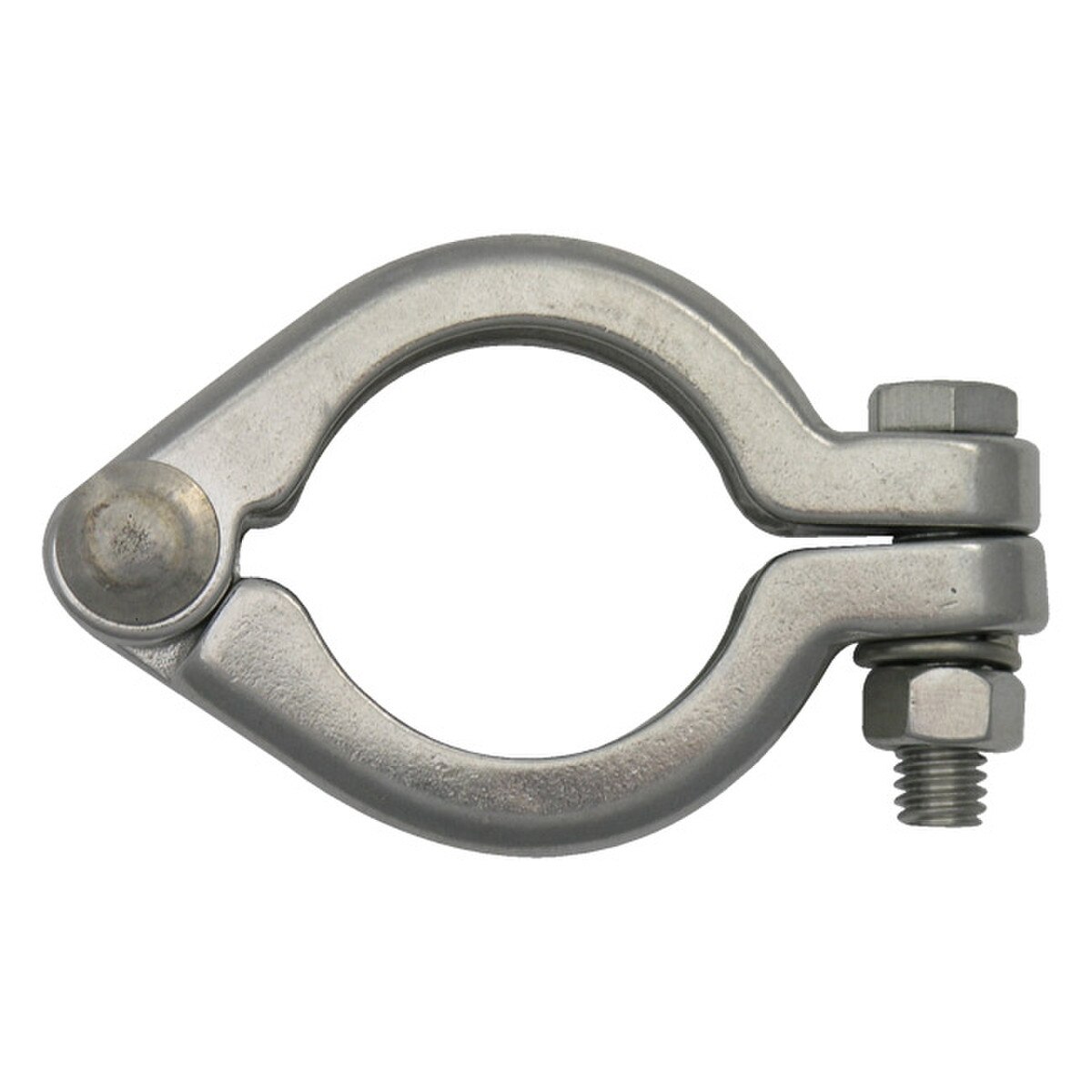

VNE E13IS Bolted E-Line Clamps are a single pin clamp that is secured with a nut and bolt. These clamps feature full stainless steel construction, including the bolt, nut, and pin.
Service pressure ratings are based upon hydrostatic tests using standard molded buna-n gasket material with proper expansion of the ferrules, joint assembly, and the absense of shock pressure. All ratings systems are dependent upon related components in the system and proper installation.
E-Line Fittings have a male and female interface construction to ensure rigidity of your system. VNE offers E-Line Fittings in sizes from 1" up to 6" in both 304 and 316L Stainless Steel. VNE E-Line fittings are provided with a 32 RA polished ID/OD. VNE E-Lines are interchangable with other vendors I-Line fittings.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | ||||
| Part Number | Tube OD | A | Service Pressure Rating @ 70°F* | Service Pressure Rating @ 250°F* |
|---|---|---|---|---|
| E13IS1.5 | 1" & 1-1/2" | 2.122" | 500 psi | 250 psi |
| E13IS2.0 | 2" | 2.800" | 450 psi | 250 psi |
| E13IS2.5 | 2-1/2" | 3.500" | 400 psi | 200 psi |
| E13IS3.0 | 3" | 4.060" | 350 psi | 150 psi |
| E13IS4.0 | 4" | 5.000" | 200 psi | 125 psi |
| E13IS6.0 | 6" | 7.625" | 150 psi | 75 psi |
| * Service ratings are based upon hydrostatic tests using Standard Molded Buna-N gasket material with proper expansion of ferrules, joint assembly, and the absence of shock pressure. All ratings systems are dependent upon related components in the system and proper installation | ||||
