VNE Female E-Line Solid End Caps

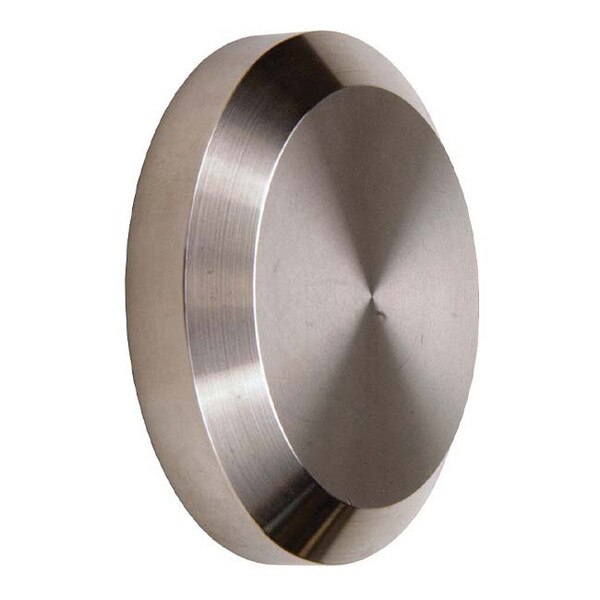

VNE E16AI-15I E-Line Solid End Caps are available in 304 or 316L Stainless Steel from 1" up to 6". These stainless steel E-Line Caps are supplied with a 3A sanitary polished finish (32 Ra ID/OD).
E-Line Fittings have a male and female interface construction to ensure rigidity of your system. VNE offers E-Line Fittings in sizes from 1" up to 6" in both 304 and 316L Stainless Steel. VNE E-Line fittings are provided with a 32 RA polished ID/OD. VNE E-Lines are interchangable with other vendors I-Line fittings.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | |||||
| Part Number | Tube OD | A | B | Material | Finish |
|---|---|---|---|---|---|
| E16AI-15I1.0 | 1" | 0.500" | 2.000" | 304 Stainless Steel | Polished |
| E16AI-15I1.5 | 1-1/2" | 0.500" | 2.000" | 304 Stainless Steel | Polished |
| E16AI-15I2.0 | 2" | 0.687" | 2.625" | 304 Stainless Steel | Polished |
| E16AI-15I2.5 | 2-1/2" | 0.750" | 3.312" | 304 Stainless Steel | Polished |
| E16AI-15I3.0 | 3" | 0.750" | 3.875" | 304 Stainless Steel | Polished |
| E16AI-15I4.0 | 4" | 0.750" | 4.875" | 304 Stainless Steel | Polished |
| E16AI-15I6.0 | 6" | 0.750" | 7.500" | 304 Stainless Steel | Polished |
| E16AI-15I-6L1.0 | 1" | 0.500" | 2.000" | 316L Stainless Steel | Polished |
| E16AI-15I-6L1.5 | 1-1/2" | 0.500" | 2.000" | 316L Stainless Steel | Polished |
| E16AI-15I-6L2.0 | 2" | 0.687" | 2.625" | 316L Stainless Steel | Polished |
| E16AI-15I-6L2.5 | 2-1/2" | 0.750" | 3.312" | 316L Stainless Steel | Polished |
| E16AI-15I-6L3.0 | 3" | 0.750" | 3.875" | 316L Stainless Steel | Polished |
| E16AI-15I-6L4.0 | 4" | 0.750" | 4.875" | 316L Stainless Steel | Polished |
| E16AI-15I-6L6.0 | 6" | 0.750" | 7.500" | 316L Stainless Steel | Polished |
