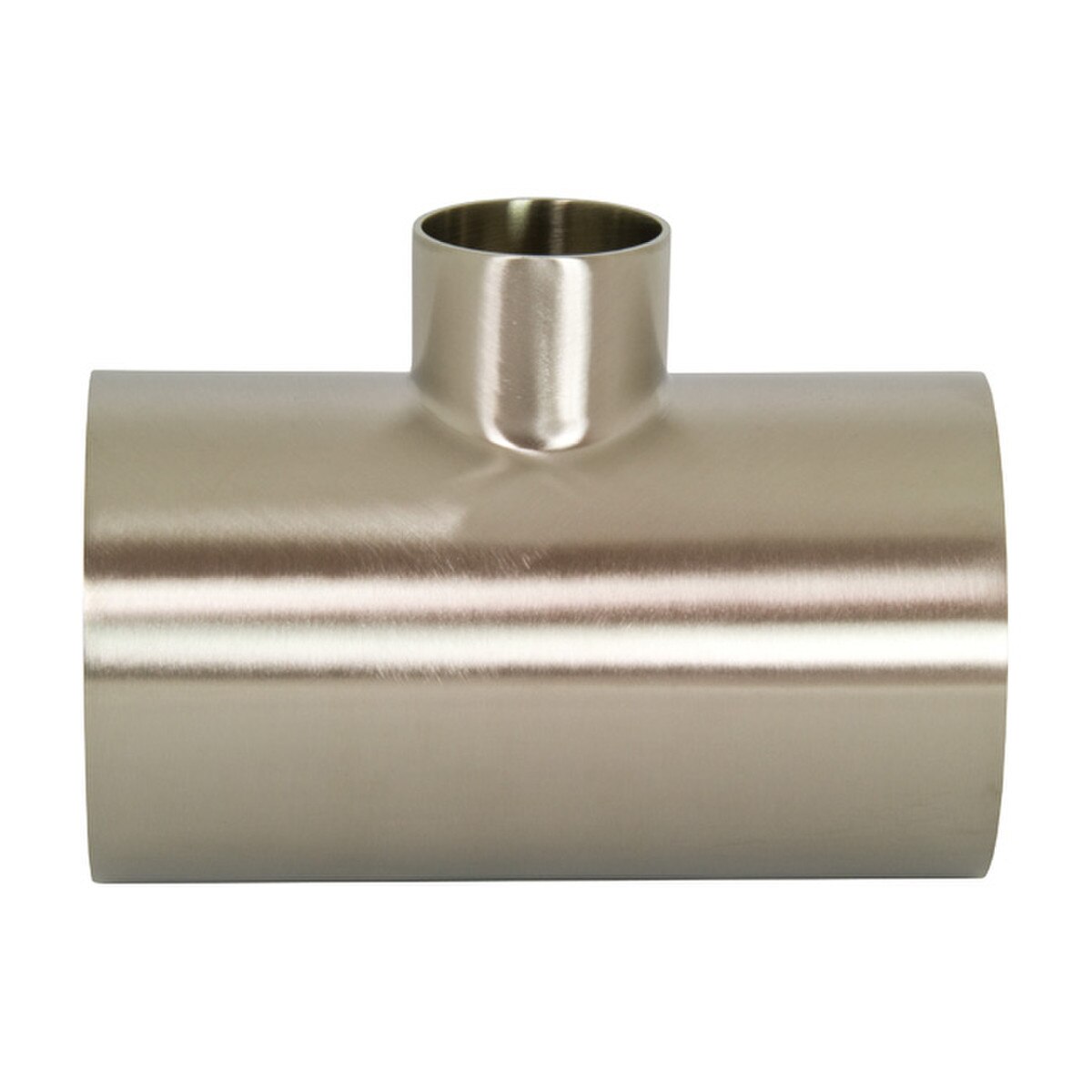

VNE Buttweld Short Reducing Tees
VNE E7RWWW Buttweld Short Reducing Tees are available in 304 or 316L Stainless Steel from 1/2" up to 6". These stainless steel buttweld reducers are supplied with a 3A sanitary polished finish (32 Ra ID/OD). 3A Sanitary Polished Fittings are ideal for food and beverage lines where a mill finish could facilitate microbe growth and contaminate the end product.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | |||||||
| Part Number | Tube OD | B | BB | C | Nom. Wall Run | Material | Finish |
|---|---|---|---|---|---|---|---|
| E7RWWW1.5X1.0 | 1-1/2" x 1" | 1.650" | 3.312" | 1.375" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW2.0X1.0 | 2" x 1" | 2.060" | 4.125" | 1.625" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW2.0X1.5 | 2" x 1-1/2" | 2.060" | 4.125" | 1.906" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW2.5X1.0 | 2-1/2" x 1" | 2.340" | 4.687" | 1.875" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW2.5X1.5 | 2-1/2" x 1-1/2" | 2.340" | 4.687" | 2.150" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW2.5X2.0 | 2-1/2" x 2" | 2.340" | 4.687" | 2.312" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW3.0X1.0 | 3" x 1" | 2.590" | 5.187" | 2.125" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW3.0X1.5 | 3" x 1-1/2" | 2.590" | 5.187" | 2.400" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW3.0X2.0 | 3" x 2" | 2.590" | 5.187" | 2.562" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW3.0X2.5 | 3" x 2-1/2" | 2.590" | 5.187" | 2.590" | 0.065" | 304 Stainless Steel | Polished |
| E7RWWW4.0X1.5 | 4" x 1-1/2" | 3.430" | 6.875" | 4.906" | 0.083" x 0.065" | 304 Stainless Steel | Polished |
| E7RWWW4.0X2.0 | 4" x 2" | 3.430" | 6.875" | 3.090" | 0.083" x 0.065" | 304 Stainless Steel | Polished |
| E7RWWW4.0X2.5 | 4" x 2-1/2" | 3.430" | 6.875" | 3.090" | 0.083" x 0.065" | 304 Stainless Steel | Polished |
| E7RWWW4.0X3.0 | 4" x 3" | 3.590" | 6.875" | 3.090" | 0.083" x 0.065" | 304 Stainless Steel | Polished |
| E7RWWW6.0X2.0 | 6" x 2" | 5.625" | 11.250" | 5.625" | 0.109" x 0.065" | 304 Stainless Steel | Polished |
| E7RWWW6.0X3.0 | 6" x 3" | 5.625" | 11.250" | 5.625" | 0.109" x 0.065" | 304 Stainless Steel | Polished |
| E7RWWW6.0X4.0 | 6" x 4" | 5.625" | 11.250" | 5.625" | 0.109" x 0.083" | 304 Stainless Steel | Polished |
| E7RWWW-6L1.5X1.0 | 1-1/2" x 1" | 1.650" | 3.312" | 1.375" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L2.0X1.0 | 2" x 1" | 2.060" | 4.125" | 1.625" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L2.0X1.5 | 2" x 1-1/2" | 2.060" | 4.125" | 1.906" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L2.5X1.0 | 2-1/2" x 1" | 2.340" | 4.687" | 1.875" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L2.5X1.5 | 2-1/2" x 1-1/2" | 2.340" | 4.687" | 2.150" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L2.5X2.0 | 2-1/2" x 2" | 2.340" | 4.687" | 2.312" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L3.0X1.0 | 3" x 1" | 2.590" | 5.187" | 2.125" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L3.0X1.5 | 3" x 1-1/2" | 2.590" | 5.187" | 2.400" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L3.0X2.0 | 3" x 2" | 2.590" | 5.187" | 2.562" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L3.0X2.5 | 3" x 2-1/2" | 2.590" | 5.187" | 2.590" | 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L4.0X1.5 | 4" x 1-1/2" | 3.430" | 6.875" | 4.906" | 0.083" x 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L4.0X2.0 | 4" x 2" | 3.430" | 6.875" | 3.090" | 0.083" x 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L4.0X2.5 | 4" x 2-1/2" | 3.430" | 6.875" | 3.090" | 0.083" x 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L4.0X3.0 | 4" x 3" | 3.590" | 6.875" | 3.090" | 0.083" x 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L6.0X2.0 | 6" x 2" | 5.625" | 11.250" | 5.625" | 0.109" x 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L6.0X3.0 | 6" x 3" | 5.625" | 11.250" | 5.625" | 0.109" x 0.065" | 316L Stainless Steel | Polished |
| E7RWWW-6L6.0X4.0 | 6" x 4" | 5.625" | 11.250" | 5.625" | 0.109" x 0.083" | 316L Stainless Steel | Polished |
