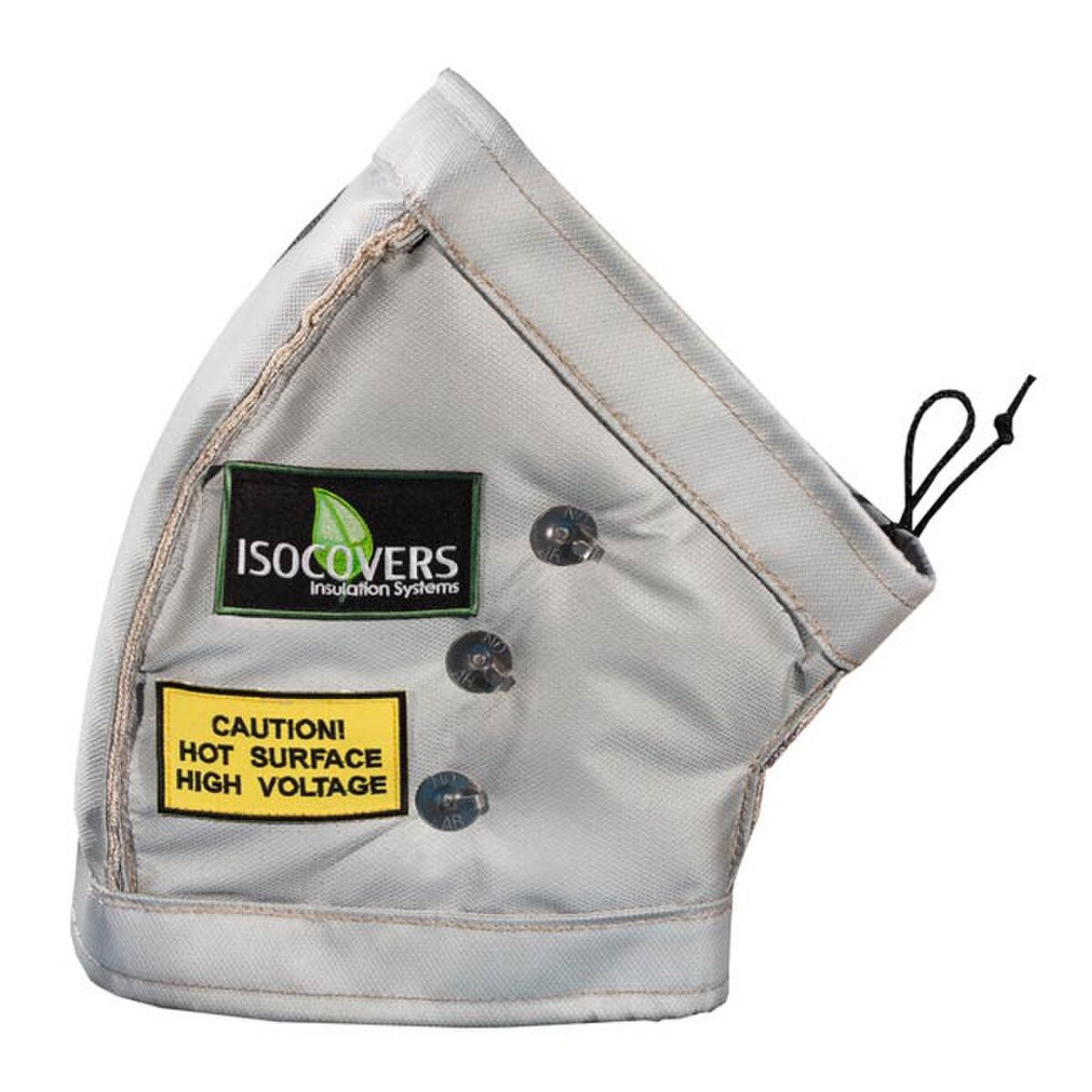

UniTherm® ISO-ELBOW 45° Insulation Jackets

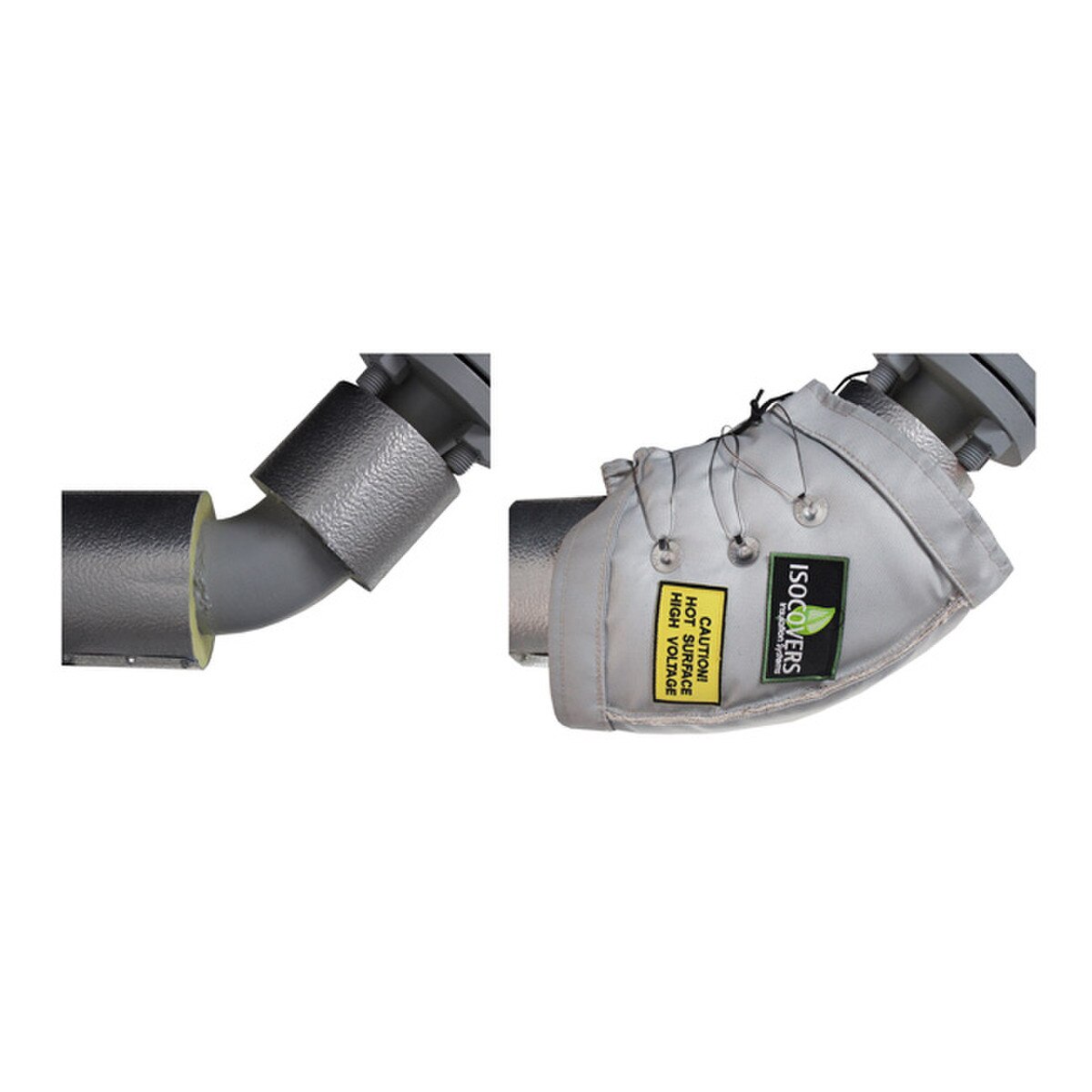

Unitherm 45 Degree ISO-ELBOW Insulation Jackets are part of the ISOCOVER lineup which consists of various designs of thermal insulating jackets that are suitable for both straight run and/or irregular shape piping. ISOCOVER Insulation Systems offer a broad base of superior, energy-saving solutions that conserve energy, preserve process temperatures and improve workplace safety. ISOCOVERS Insulation Systems are used on various applications within the process industry where heat conservation and process temperature are concerns. ISOCOVERS Insulation Systems are used for insulation of hot, cold, concealed and exposed piping in commercial buildings, industrial facilities, and process or power plants. They are appropriate for all high-pressure and temperature application ranging from -120°F (-84°C) to 800°F (427°C). Fastens with hook and stainless steel wire.
Benefits:
- Removable and reusable
- Personnel protection
- Meets and exceeds OSHA's Touch Safe Rating
- Reduces energy consumption
- Improves equipment efficiency and longevity
- Reduces heat loss and unnecessary emissions

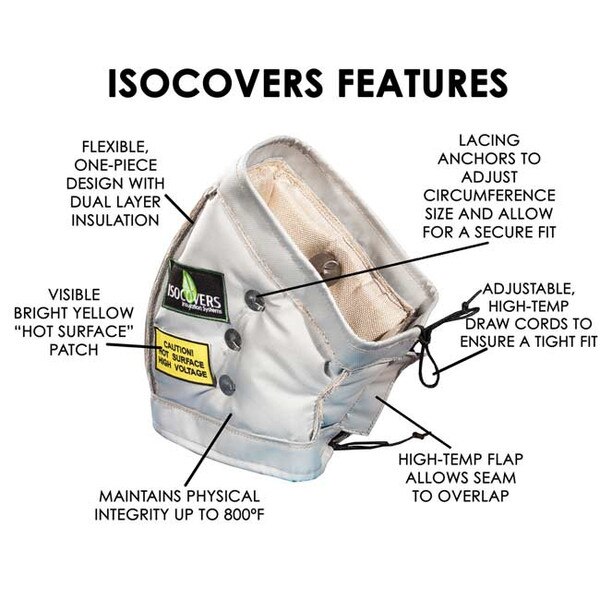

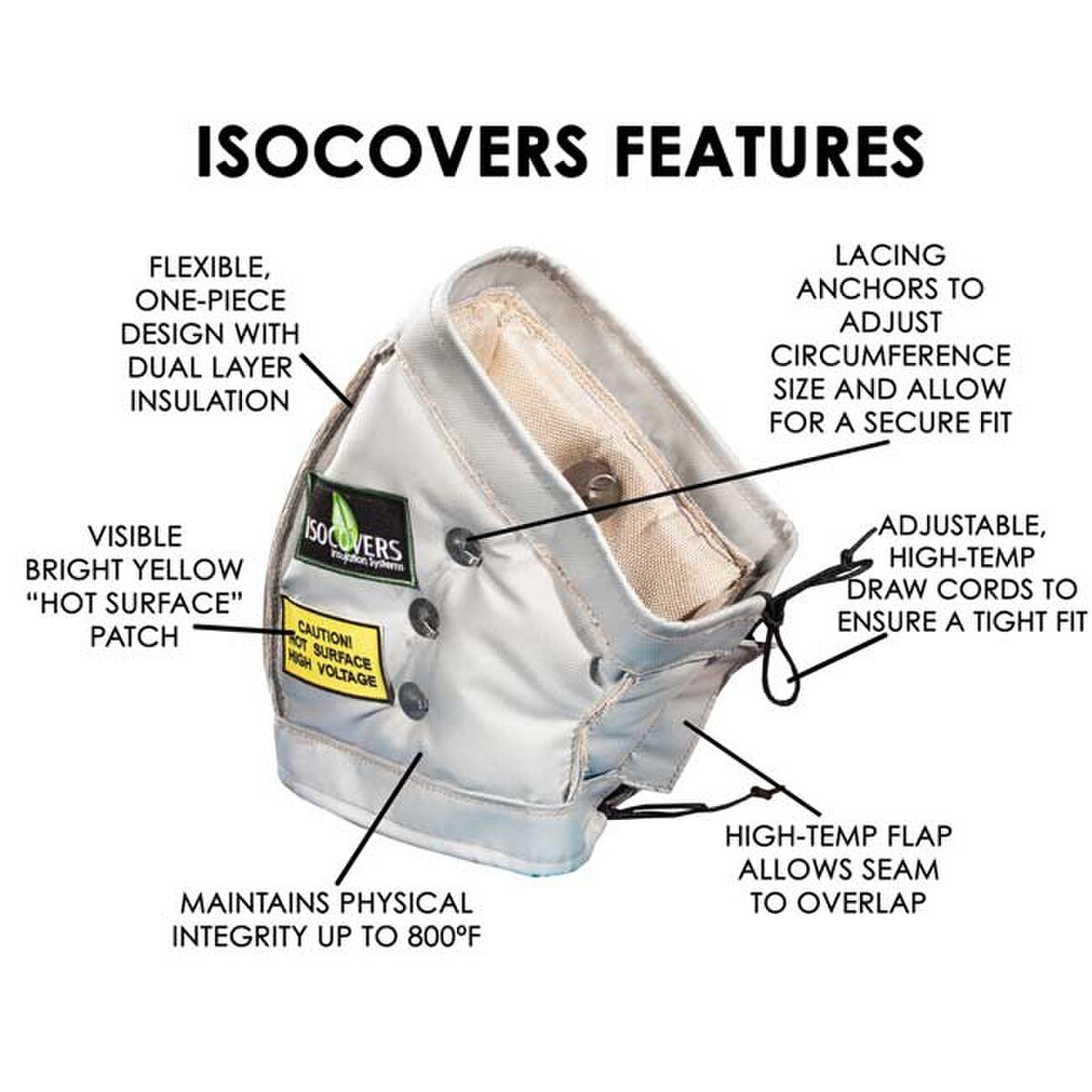

Features:
- Adjustable draw cord to ensure a tight fit.
- Maintains physical integrity up to 800°F (427°C)

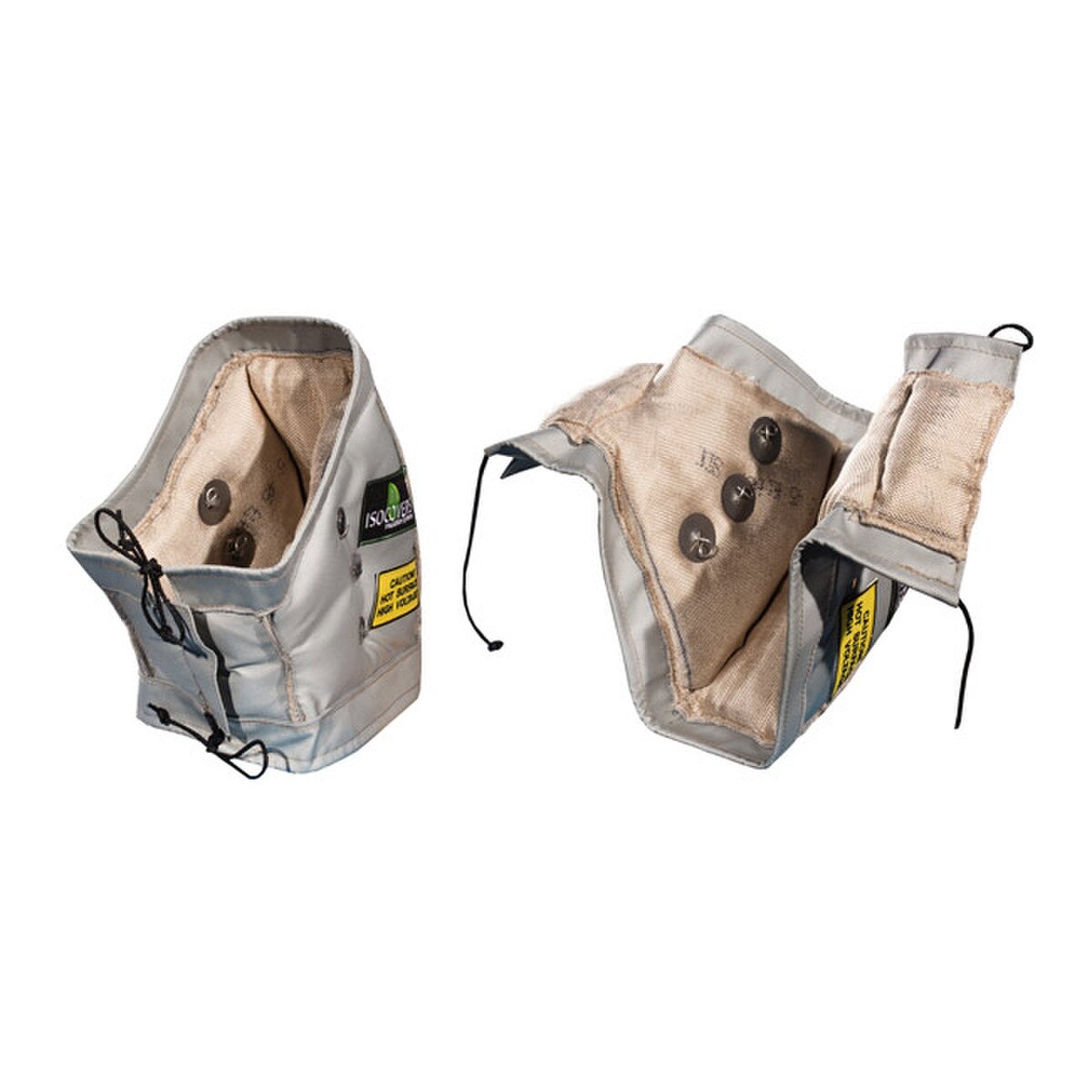

- Flexible one-piece design
- High-temperature flap allows seam to overlap
- Bright yellow, visible hot-surface patch
- Lacing anchors to adjust circumference
UniTherm® ISOCOVERS® Elbow Insulation Jackets | |||||||
---|---|---|---|---|---|---|---|
MFG Part | Length Range | Degree | Thickness | Diameter Range | Circumference Range | Core Material | Cover Material |
IE0245, IE0445, IE0645, IE0845, IE1045, IE1245, IE1445, IE1645, IE1845 | 2" - 18" | 45° | 3" | 0"-2", 2"-4", 4"-6", 6"-8", 8"-10", 10"-12", 12"-14", 14"-16", 16"-18" | 0"-6", 6"-13", 13"-19", 19"-25", 25"-31", 31"-38", 38"-44", 44"-50", 50"-57" | Mineral Wool, Fiberglass | Silicone Coated Fiberglass Cloth |
IE0290, IE0490, IE0690, IE0890, IE1090, IE1290, IE1490, IE1690, IE1890 | 2" - 18" | 90° | 3" | 0"-2", 2"-4", 4"-6", 6"-8", 8"-10", 10"-12", 12"-14", 14"-16", 16"-18" | 0"-6", 6"-13", 13"-19", 19"-25", 25"-31", 31"-38", 38"-44", 44"-50", 50"-57" | Mineral Wool, Fiberglass | Silicone Coated Fiberglass Cloth |
