• UniTherm® FreezePro® Wrap Insulation Jackets

UniTherm® FreezePro® Wrap Insulation Jackets

(0)No Reviews yet

Unitherm FreezePro Wrap Insulation Jackets are suitable for straight sections of pipe, which do not involve complex shapes, such as flanges, couplings, or the like. As part of the FreezePro Frost Protection System, FreezePro Wrap delivers a barrier of uniform, directional heat where it is needed most - to tanks, pipelines, drums, buckets, IBC totes, and other temperature sensitive equipment.

FreezePro Frost Protection Systems are used for freeze protection or temperature maintenance of piping, tanks, and equipment. They are specially designed to maintain desired temperatures through an evenly heated area, keeping chemicals and other industrial materials within customer defined temperature ranges. Recommended for applications ranging from -40°F (-40°C) to 200°F (93°C). The advanced, all-in-one design of FreezePro eliminates the need for multiple product purchases and simplifies the entire implementation process while saving time and money. The end result is an efficient heating solution with the most cost-effective method for minimizing damage caused by harsh or freezing temperatures.

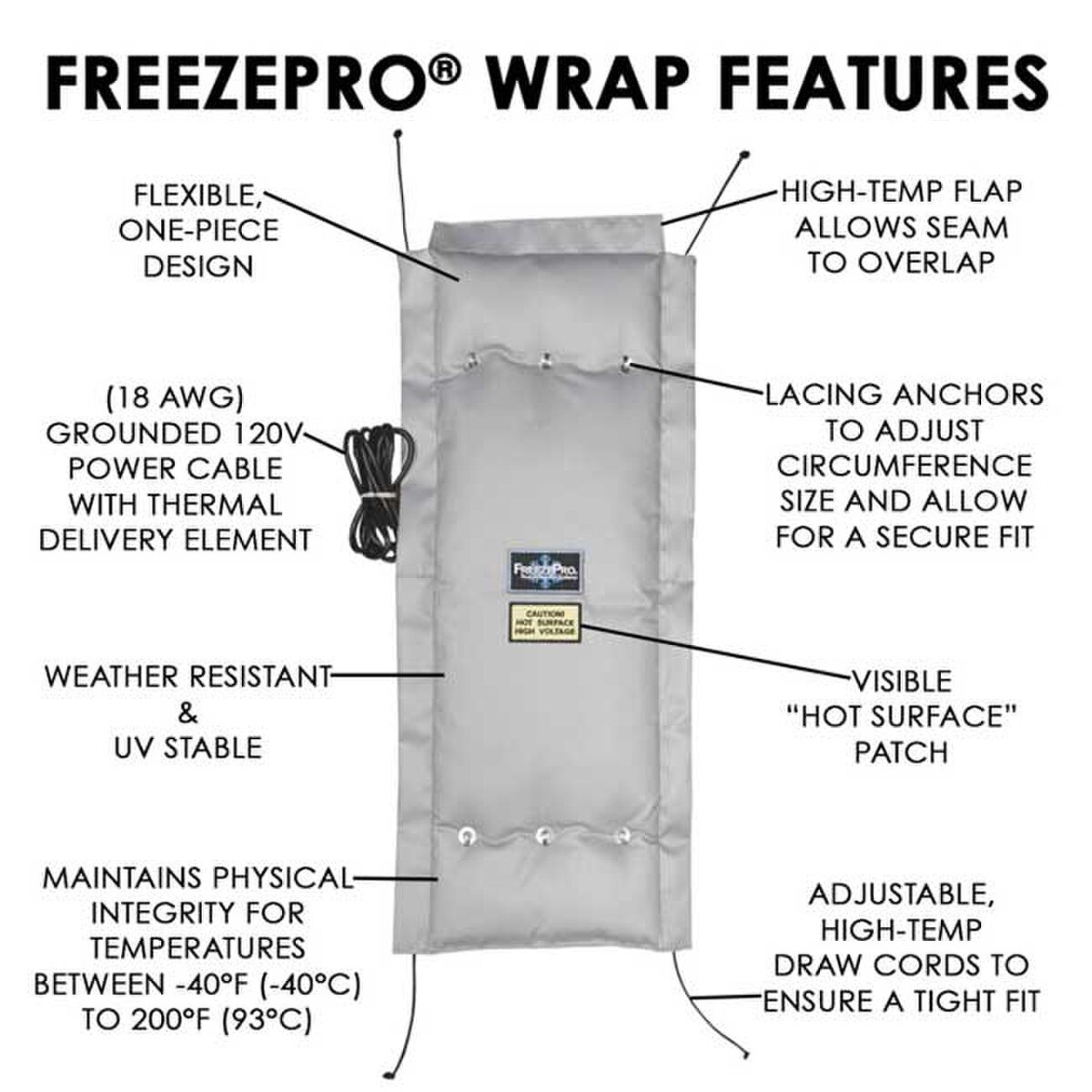

Features:

  • Flexible, one-piece design
  • Lacing anchors to adjust circumference size and allow for a secure fit
  • Adjustable, high-temp draw cords to ensure a tight fit
  • High-temp flap allows seam to overlap
  • Visible "hot surface" patch
  • Weather resistant and UV stable
  • Maintains Physical Integrity For Temperatures Between -40°F (-40°C) To 200°F (93°C)
  • (18 AWG) Grounded 120V Power Cable With Thermal Delivery Element

Benefits:

  • Protects key components from freezing and help prevent costly damage from occurring.
  • Creates a safer working environment for your employees and increase equipment lifespan by protecting key components from extreme temperatures.
  • Made with standard, readily available, off-the-shelf components that can be easily configured for almost any application requirement.
  • Compliant with OSHA Safe-Touch standards for exposed surfaces (if there is a potential for injury).
  • Delivers an increased control of process temperatures to enhance production capacity by maintaining temperatures and minimizing heat loss to keep equipment running at optimal temperatures.
  • FreezePro Frost Protection Systems all-in-one design simplifies the overall system configuration requirements and eliminates the need for additional/expensive add-ons.

Applications:

  • Fittings
  • Pipes
  • Manifolds
  • Flanges
  • Strainers
  • Valve & pipeline strainers
  • Ball reducers
  • Industrial HVAC equipment
  • Reducing sockets
  • Sockets parallel & taper
  • Hex nipples
  • Bronze screw valves
  • Flange strainers
  • Thermo-dynamic steam traps
  • Float & thermostatic steam traps
  • Balanced pressure steam traps
  • Inverted bucket steam traps
  • Bimetallic steam traps

UniTherm® FreezePro® Wrap Insulation Jackets
MFG Part(s)Width RangeLengthThicknessDiameter RangeCircumference RangeCore MaterialCover Material
FPW1206, FPW1212, FPW1218, FPW12246", 12", 18", 24"12"3"0"-2"0"-6"Mineral WoolSilicone
FPW1806, FPW1812, FPW1818, FPW18246", 12", 18", 24"18"3"2"-4"6"-13"Mineral WoolSilicone
FPW2406, FPW2412, FPW2418, FPW24246", 12", 18", 24"24"3"4"-6"13"-19"Mineral WoolSilicone
FPW3006, FPW3012, FPW3018, FPW30246", 12", 18", 24"30"3"6"-8"19"-25"Mineral WoolSilicone
FPW3606, FPW3612, FPW3618, FPW36246", 12", 18", 24"36"3"8"-10"25"-31"Mineral WoolSilicone
FPW4206, FPW4212, FPW4218, FPW42246", 12", 18", 24"42"3"10"-12"31"-38"Mineral WoolSilicone
FPW4806, FPW4812, FPW4818, FPW48246", 12", 18", 24"48"3"12"-14"38"-44"Mineral WoolSilicone
FPW6006, FPW6012, FPW6018, FPW60246", 12", 18", 24"60"3"14"-17"44"-53"Mineral WoolSilicone
