Tylok QC Series Quick Connect Stem - CBC-Lok Port (Valved)

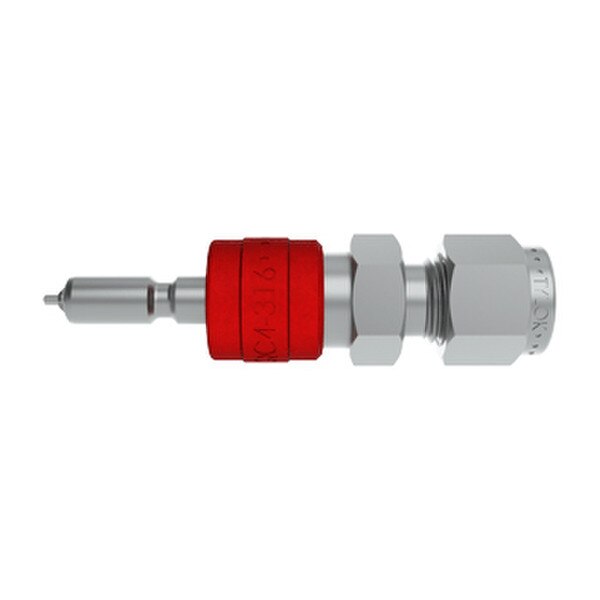

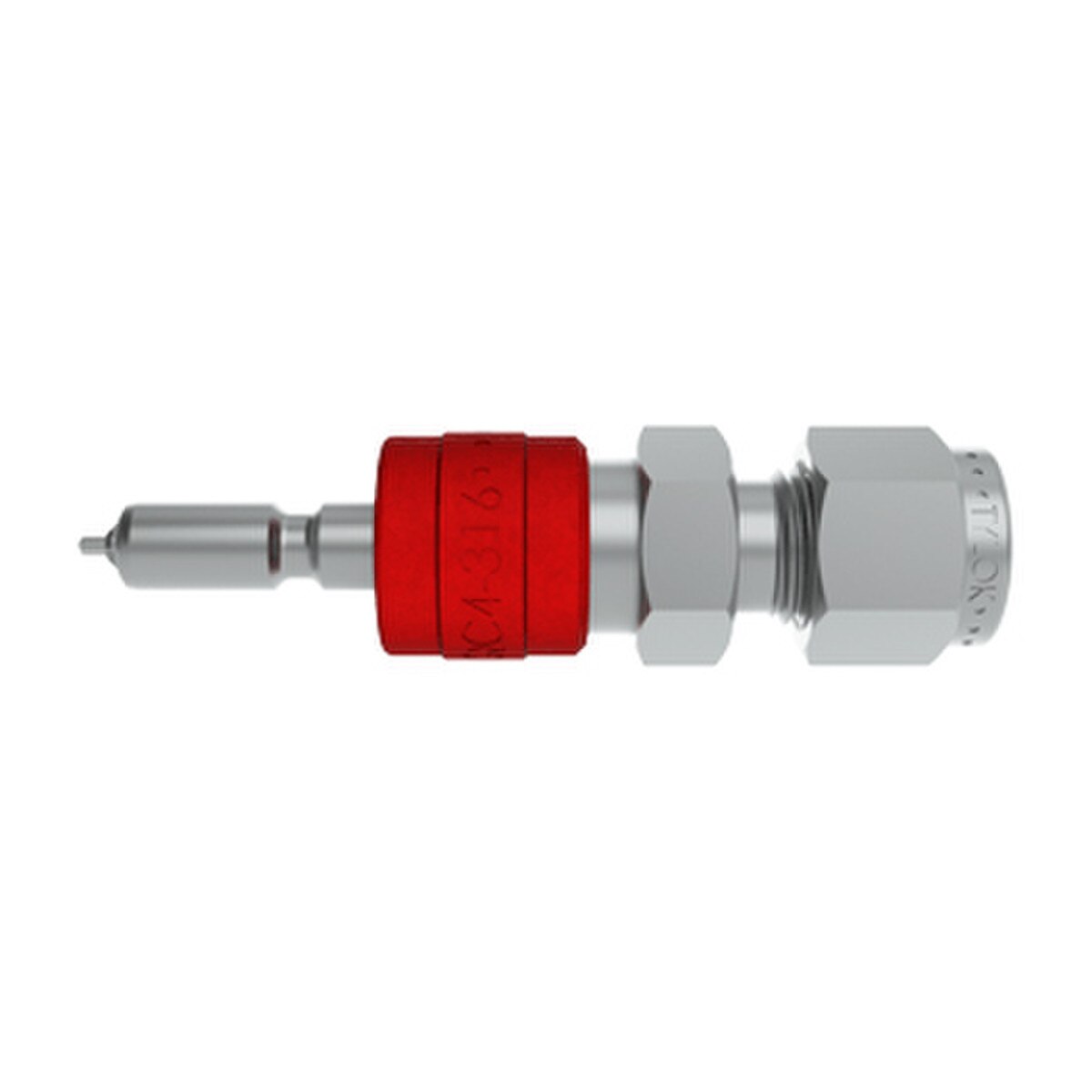

These Valved Tylok QC Quick Connect Stems with CBC-Lok Tube Fitting Ends are available in 1/4" or 3/8" body sizing with 1/8", 1/4", or 3/8" ports for a wide variety of applications. Valved stems give you the full security of a double end shut off (DESO) connection that prevents spillage from both the body and plug side of the quick connect. These quick connects feature 316 stainless steel machined parts, springs, and retaining rings. Featuring a dependable poppet valve and redundant Viton® (FKM) o-ring seals to provide a quick, leak tight seal in both vacuum and pressure systems. A positive valve stop prevents flow checking into the quick connect and a set of guides improve the reliability of the seal. A smooth entrance and positive engagement is insured by Teflon® (PTFE) bonded locking "dogs".
Features:
- 100% leak tested
- Valved for a DESO connection
- 1/4" or 3/8" bodies available
- 316 stainless steel machined parts, springs, and retaining rings
- Viton® (FKM) o-ring seals standard
- Buna N, EP, Kalrez®, or Neoprene o-ring seals by request
- Teflon® (PTFE) bonded locking "dogs"
- Perbuoropolyether based seal lubricant
- -15°F to 400°F operating range
- CBC-Lok ends are interchangeable with Swagelok® and Parker A-Lok® tube ends
 | |
| 1) | Redundant Viton O-ring Seals provide quick leak tight sealing in vacuum or pressure systems. |
| 2) | Dependable poppet valves with integral Viton O-ring seals are standard in all quick connect bodies and valved plugs. |
| 3) | Positive valve stops prevent flow checking in the quick connect. Valve guides improve reliability by providing precise alignment to the seat. |
| 4) | Smooth entrance and positive engagement, firmly gripping the plug, is insured by Teflon® bonded locking "dogs". |
| 5) | All quick connect valve springs are made of 316 stainless steel. |
| 6) | Tylok CBC-Lok® double ferrule tube ends are completely interchangeable with Swagelok® and Parker A-Lok® tube ends. |
| 7) | Tylok CS-Lok® single ferrule tube ends are completely interchangeable with Parker CPI® tube ends. |
| Rated Working Pressure | |||
| Body Size | Connected Position | Disconnected Position | Connect Under Pressure |
| 1/4" | 3000 psi (207 bar) | 3000 psi (207 bar) | 250 psi (17 bar) |
| 3/8" | 3000 psi (207 bar) | 3000 psi (207 bar) | 250 psi (17 bar) |
| CBC-Lok DESO Stem Dimensions | |||||
| Series | Size | MFG Part Number | OAL | Stem OD | Hex Flat Length |
| QC4 | 1/8" | SS-QC4-D-2D | 2.74" (69.6mm) | 0.62" (15.7mm) | 5/8" (15.88mm) |
| QC4 | 1/4" | SS-QC4-D-4D | 2.35" (59.7mm) | 0.62" (15.7mm) | 9/16" (14.29mm) |
| QC6 | 3/8" | SS-QC6-D-6D | 2.56" (65.0mm) | 0.74" (18.8mm) | 11/16" (17.46mm) |
