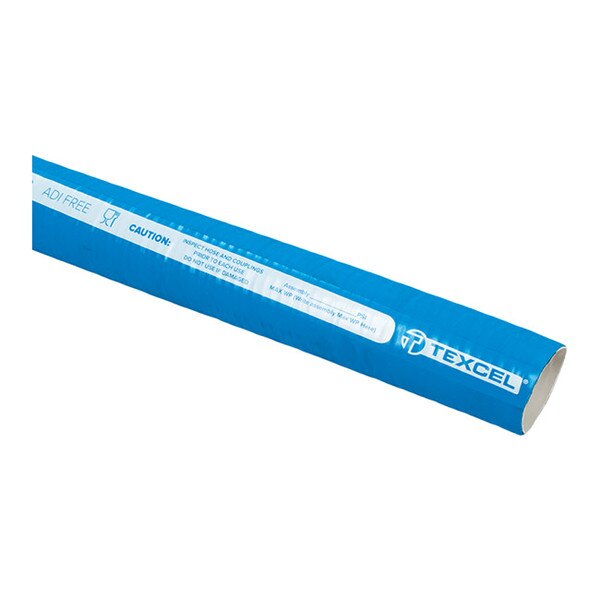

Texcel DAIRY-KING Milk Hose - Standard Length (100 ft)
Texcel DAIRY-KING Milk Hose is specifically designed for the suction and delivery of milk and other fatty foods. The DAIRY-KING dairy hose has a white, smooth, NBR rubber tube to insure product quality, is odorless and does not alter taste. Its blue, smooth, cloth impression EPDM rubber cover offers abrasion-, ozone- and weather-resistance. This hose can be sterilized with steam at 230°F for 30 minutes. Meets FDA Title 21 part.177.2600(f) for fatty foods, BfR, ADI free, D.M. 21/03/73, EC 1935/2004. Hose conform to 3A standards.
Many hoses are available cut-to-length and pre-assembled with crimped, swaged or internal expanded ends. Additional services available include: hydro-static testing, destructive and non-destruction testing, certifying to USCG and NAHAD-HAG standards, export crating, labeling, tagging, stenciling and microchip tagging. Please contact us at sales@austenitex.com to request a custom hose assembly quotation.
Hose Inspection
Safety experts recommend inspecting hoses on a daily basis. Any change in the hose can indicate a possible problem. Possible causes include chemical incompatibility, leakage paths, ozone aging and damaged hose. It may be necessary to shut down operations in order to closely inspect a hose. Inspection intervals depend on the application.
Important Factors Include:
- Critical nature of application
- Working temperature
- Working pressure
- Environmental influences/concerns
Signs to Look For:
- Cover or reinforcement damage such as blisters, crazing, abrasions, cuts, exposed reinforcement, etc.
- Change in cover or tube color
- Change in flexibility or hardness of hose
- Blisters on the hose cover
- Kinked or damaged hose
- Leaking
Texcel DAIRY-KING Dairy Hose Features:
- Sold in 100 Foot Rolls Standard (available in cut lengths at additional charge)
- Inner Tube: NBR (White)
- Outer Cover: EPDM (Blue)
- Reinforcement: High strength synthetic plies with steel wire spirals
- Safety Factor: 3:1
- Temperature Range: -40°F to +248°F
- Branding: TEXCEL® DAIRY-KING MILK HOSE 150 PSI (10 BAR) W.P TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE
| MFG Part # | ID | OD | Standard Length | Working Pressure (psi) | Vacuum (inHg) | Bend Radius | Weight (lb/ft) |
|---|---|---|---|---|---|---|---|
| MILK-.75-100 | 3/4" | 1-9/64" | 100' | 150 | 29 | 2.5" | 0.45 |
| MILK-1.0-100 | 1" | 1-3/8" | 100' | 150 | 29 | 3.5" | 0.54 |
| MILK-1.5-100 | 1-1/2" | 1-31/32" | 100' | 150 | 29 | 5" | 0.93 |
| MILK-2.0-100 | 2" | 2-1/2" | 100' | 150 | 29 | 7.5" | 1.26 |
| MILK-3.0-100 | 3" | 3-1/2" | 100' | 150 | 29 | 11" | 2.02 |
| MILK-4.0-100 | 4" | 4-9/16" | 100' | 150 | 29 | 13" | 3.09 |
