Spirax Sarco SSC20 Sanitary Sample Cooler

Note: Certifications are available at an additional cost and must be requested at the time of ordering, please contact us if you require certification with these parts.

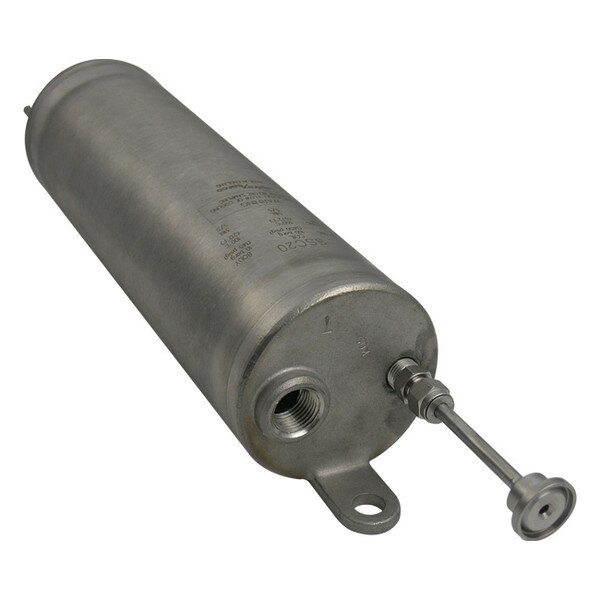

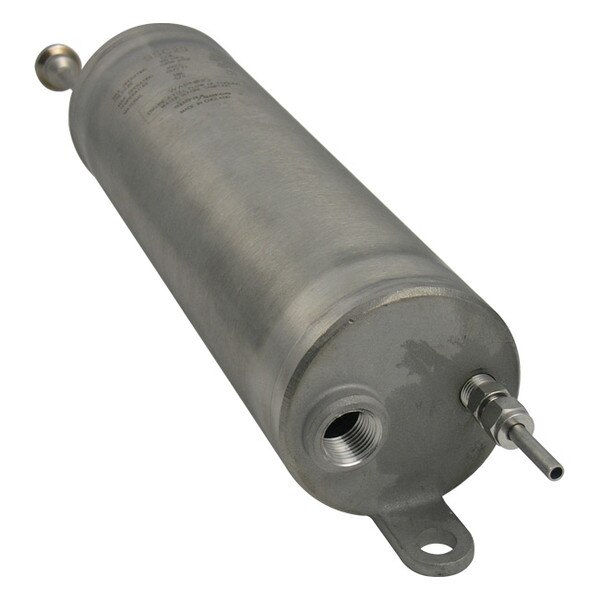

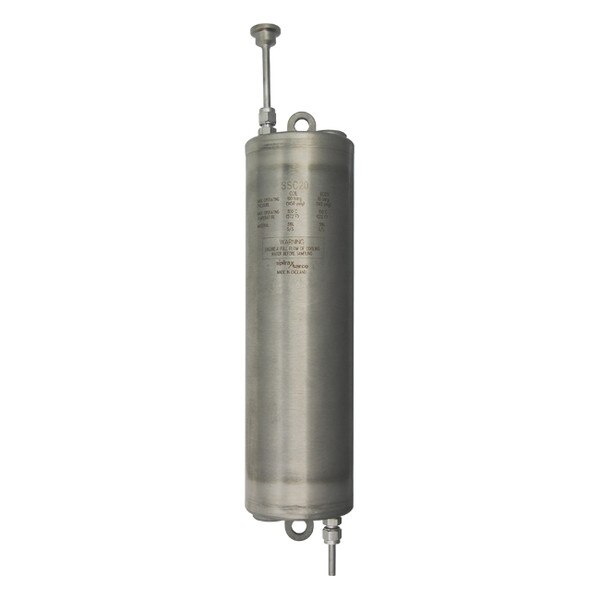

The Spirax Sarco SSC20 Sanitary Sample Cooler has been specifically designed for taking high quality chemical, conductivity, and microbiological samples quickly and safely from clean/pure steam, water for injection (WFI) and other high purity media systems. The unit consists of high quality 316L stainless steel components and utilizes a counter current flow to maximize cooler efficiency, resulting in a compact, space saving design. All sample contact surfaces are compliant to current ASME BPE requirements, surface finish of better than 20 µ-in Ra (0.5 µ-m Ra). The unit is provided with an integral pre drilled mounting bracket to allow simple installation at point of use.

Installation:

See Installation and Maintenance Instructions for full details, as insufficient information is given here for safe installation. To avoid the risk of scalding, it is ESSENTIAL that a full flow of cooling water is present before opening the sample inlet valve. Always close the sample inlet valve before turning off the cooling water. Sample pipework becomes very hot under normal working conditions, and will cause burns if touched. We recommend the use of corrosion resistant pipework suitable for the fluid being sampled. Keep the length of all pipe runs to the minimum. Cooling water must be clean and free from scale forming salts. The sample cooler must be mounted vertically. The cooling water inlet and outlet are connected with 1/2" NPT pipe thread. The cooling water outlet should be piped to an open drain or funnel. The sample inlet pipe should be in 6 mm OD tube and utilize a 1/4", 3/8" or 1/2" ferrule. We recommend that a funnel piped to drain is located under the outlet, with sufficient space below it for a beaker or similar sample container.

Maintenance:

No routine maintenance is required.
