Spirax Sarco M80i Sanitary Ball Valve (2-1/2" thru 4")
Note: All certification/inspection requirements are available at an additional cost and must be requested at the time of order placement. This item is available with certification to EN 10204 3.1. Please

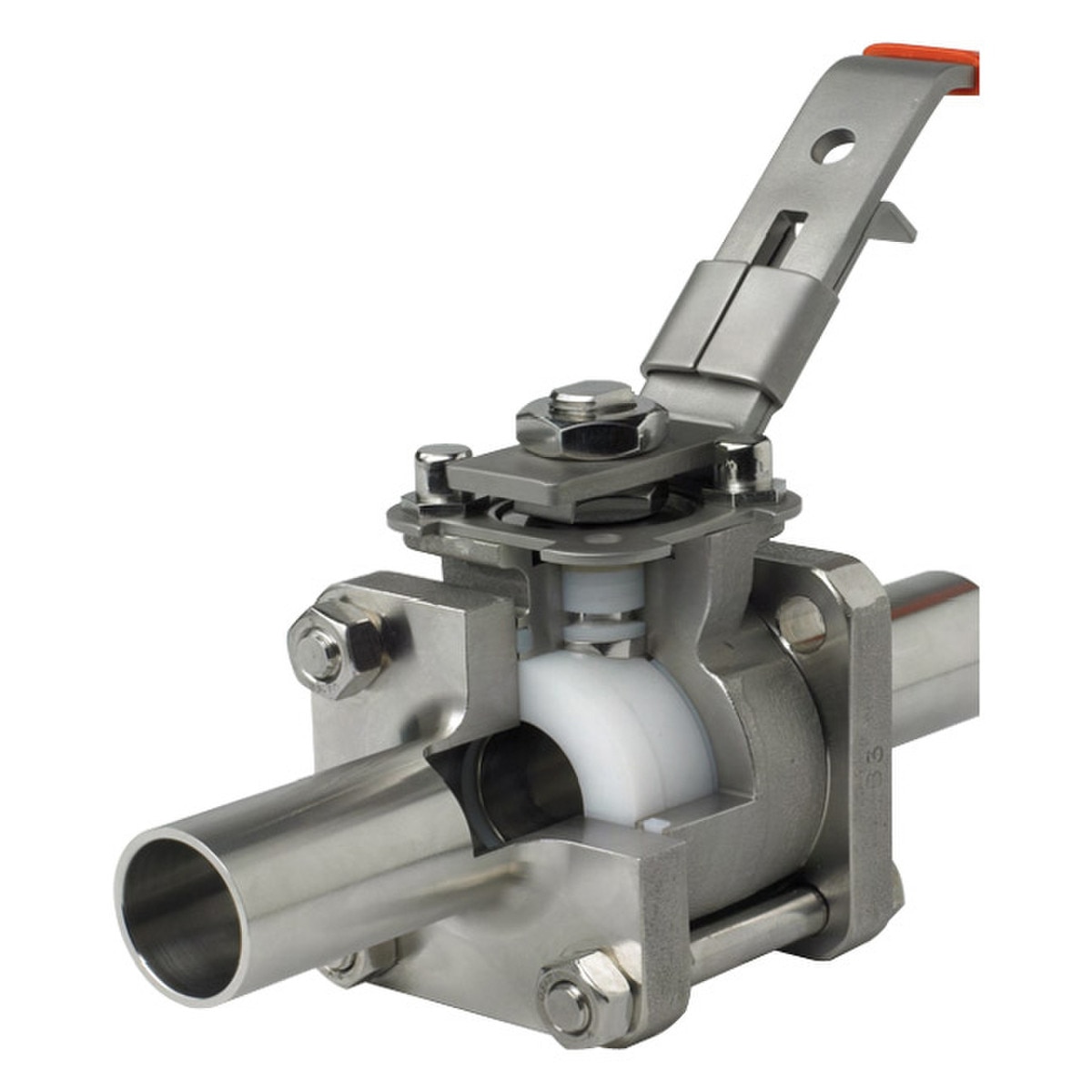

The Spirax Sarco M80i Stainless Steel Ball Valves are intended for high purity sanitary applications. Designed and manufactured in accordance with ASME BPE Standards for use as an isolating valve on high purity and aseptic processes where bacteria and media deposits can put product quality at risk. Spirax Sarco M80i Sanitary Ball Valves are a low maintenance, clean design that is suitable for steam, liquid, or gas service ranging from vacuum to high temperature and pressure applications. Applications include the pharmaceutical, biotech, food and beverage and cosmetics industries.
Please note that the 2-1/2" version has four studs and eight nuts and washers, and the 3" and 4" units have six studs and twelve nuts and washers.
Spirax Sarco M70i Isolation Ball Valve Features:
- Available from 1/4" up to 2"
- Available with Tri-Clamp® or Tube Extensions end connections
- True Port Design for full drainability
- Modified Linear flow characteristics
- Forged Construction - high integrity ASTM A182 F316L
- Low Ferrite Body and End Connections to prevent rouge
- Electro-polished 15 μ-in Ra (0.375 μm Ra) Internal Surface Finish
- External surface finishes are as cast/machined
- Virgin PTFE Seat/Seals
- Cavity Fillers are provided as standard
- BPE Compliant Tube Extensions available for orbital welding
- Fully complies with the requirements of the European Pressure Equipment Directive 97/23/EC
- ISO 5211 Mounting Pad
- Spring Loaded Handle locks valve in position
- CMTR's Available for Material Certification to EN 10204 3.1, Elastomer FDA / USP Compliance Certificate, and surface finish
- All certification / inspection requirements must be stated at the time of order placement

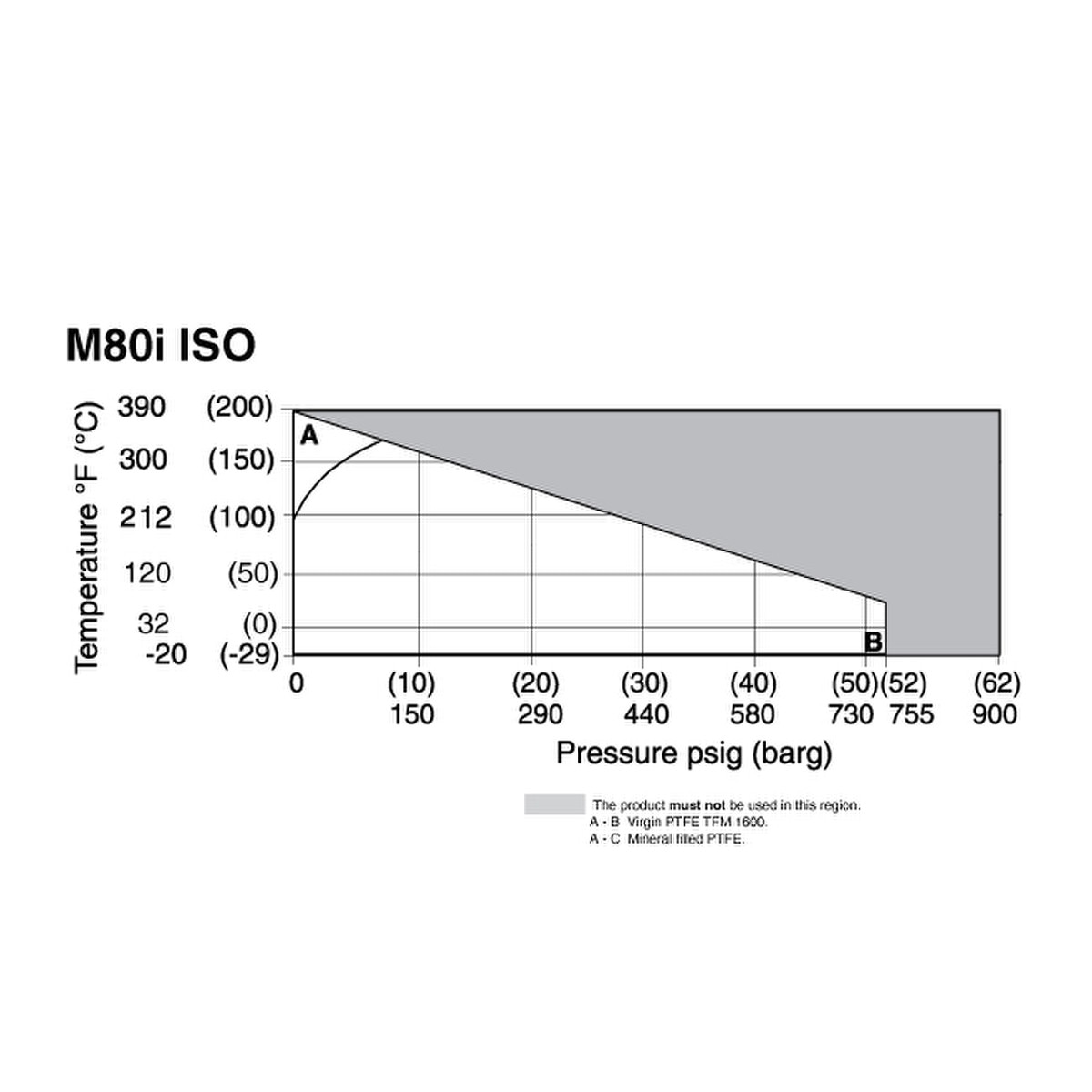

- Max Allowable Pressure (PMA): 900 psig @ 68°F (62 barg @ 20°C)
- Max Allowable Temperature (TMA): 390°F @ 0 psig (200°C @ 0 barg)
- Min Allowable Temperature*: -20°F (-29°C)
- Max Allowable Pressure for Sat. Steam (PMO): 100 psig (7 barg)
- Max Operating Temperature (TMO): 390°F @ 0 psig
- Minimum Operating Temperature*: 32°F (0°C)
- Max Cold Hydraulic Test Pressure: 1350 psig (93 barg)
- Please see the M70i Ball Valve for sizes under 2-1/2"
Size | Cv | Torque |
---|---|---|
2-1/2" | 786 | 34 |
33" | 995 | 37 |
4" | 2255 | 56 |
Part # | Size | Style | A | B | C | D | F | G |
---|---|---|---|---|---|---|---|---|
4398080 | 2-1/2" | Tri-Clamp® | 6.76" (171.6mm) | 14.58" (370mm) | 4.14" (105mm) | 2.21" (56.14mm) | 2.38" (60.3mm) | 33.81" (85.80mm) |
4398085 | 3" | Tri-Clamp® | 9.01" (228.6mm) | 14.58" (370mm) | 4.53" (115mm) | 3.07" (78.03mm) | 2.88" (73.0mm) | 4.50" (114.30mm) |
4398090 | 4" | Tri-Clamp® | 10.01" (254.1mm) | 15.76" (400mm) | 5.59" (142mm) | 3.96" (100.60mm) | 3.84" (97.4mm) | 5.01" (127.05mm) |
4398030 | 2-1/2" | Tube Ext. | 7.53" (191.0mm) | 14.58" (370mm) | 4.14" (105mm) | 2.21" (56.14mm) | 2.38" (60.3mm) | 3.76" (95.50mm) |
4398035 | 3" | Tube Ext. | 9.06" (230.0mm) | 14.58" (370mm) | 4.53" (115mm) | 3.07" (78.03mm) | 2.88" (73.0mm) | 4.53" (115.00mm) |
4398040 | 4" | Tube Ext. | 9.99" (253.5mm) | 15.76" (400mm) | 5.59" (142mm) | 3.96" (100.60mm) | 3.84" (97.4mm) | 4.99" (126.75mm) |

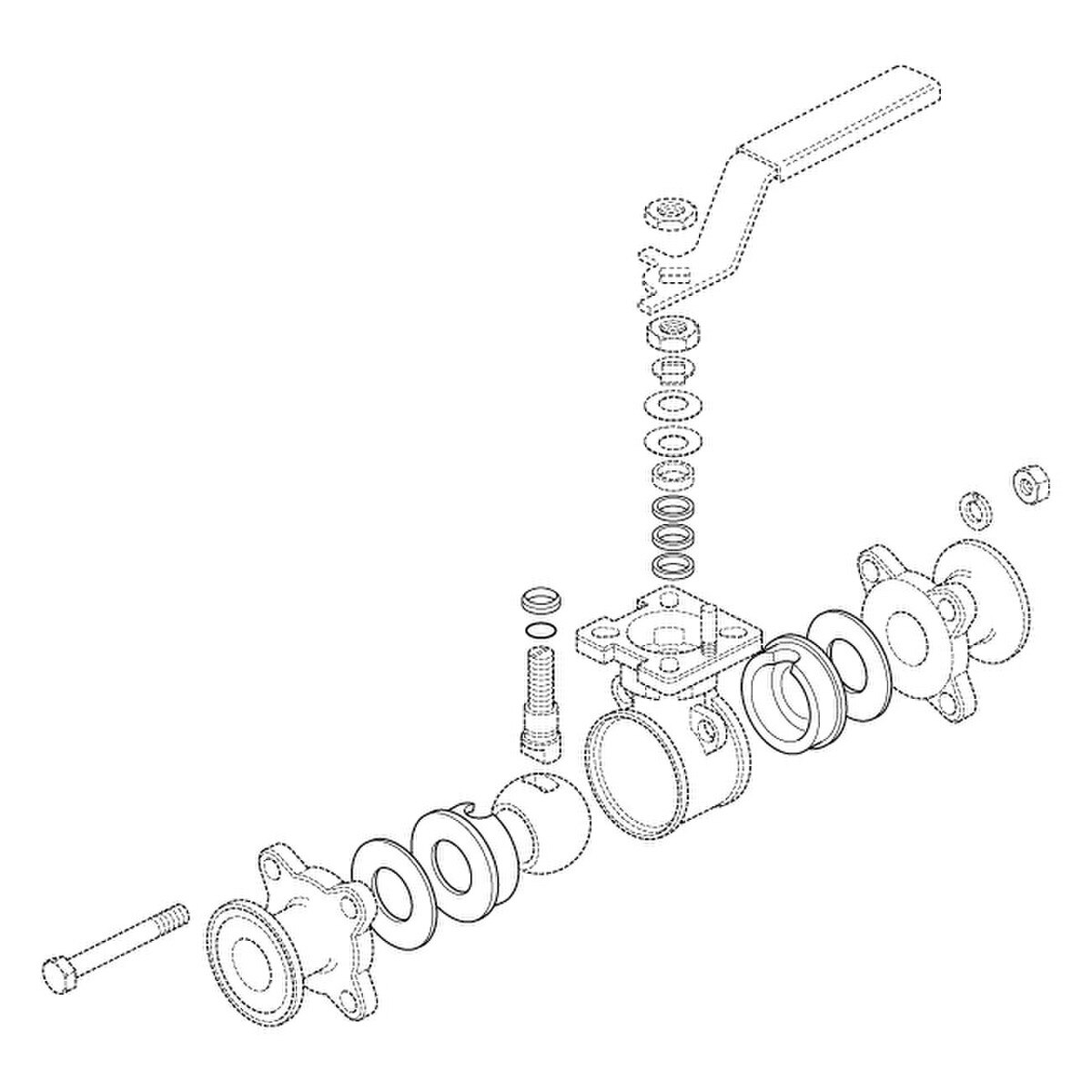

No. | Part | Material |
---|---|---|
1 | Body | ASTM A351 Gr. CF3M Stainless Steel (316L) |
2 | End Connections | ASTM A351 Gr. CF3M Stainless Steel (316L) |
3 | Ball | ASTM A351 Gr. CF3M Stainless Steel (316L) |
4 | Stem | AISI 316L Stainless Steel |
5* | Seat and Cavity Filler | Virgin PTFE TFM 1600 |
6* | Stem Seals | PTFE TFM 1600 |
7 | Spacer | AISI 304 Stainless Steel |
8 | Compression Nut | AISI 304 Stainless Steel |
9 | Lock Washer | AISI 304 Stainless Steel |
10 | Stem Nut | AISI 304 Stainless Steel |
11* | O-Ring | Viton |
12 | Handle | AISI 304 Stainless Steel |
13 | Cover | Vinyl |
14 | Studs and Nuts | AISI 304 Stainless Steel |
15* | Bolt Washer | AISI 304 Stainless Steel |
16* | Body Seal | Virgin PTFE TFM 1600 |
17 | Belleville Washer | AISI 301 |
*Note: Available spare parts sold as a kit |
