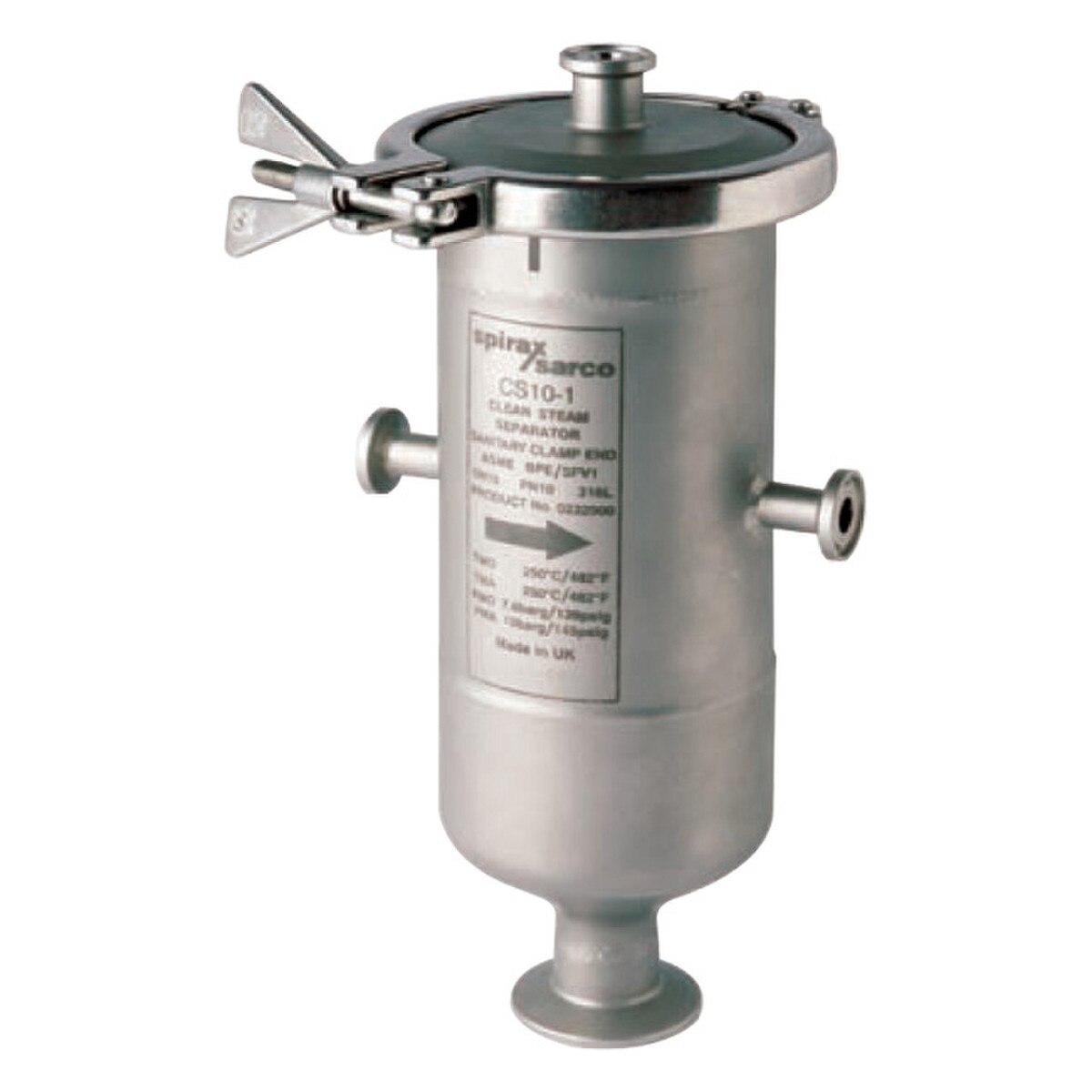

Spirax Sarco CS10 Clean Steam Separator
Note: Certifications are available at an additional cost and must be requested at the time of ordering, please contact us if you require certification with these parts.
The Spirax Sarco CS10 Series Clean Steam Separator is design to remove entrained moisture from clean and pure steam systems. Even in the cleanest and best designed clean steam system entrained moisture can still occur, resulting in an unacceptably low dryness fraction, non-compliance of critical sterilization standards, damage to control valves/instrumentation and a generally low efficiency of the system. These separators feature a removable baffle plate, allowing the unit to be fully inspected prior to installation and to ease periodic cleaning and de-rouging. This product has been designed in accordance with the latest standard of the ASME BPE guide. It also complies with the requirements of the European Pressure Equipment Directive 97/23/EC. All elastomers used comply with FDA regulation CFR 21 paragraph 177 section 2600. Additionally, 1/2", 3/4", and 1" sizes are available with USP class VI.
Installation:
The CS10 is designed for installation in horizontal lines. Check arrow on the body for correct orientation. The body and internals must be handled carefully to ensure that the surface finishes are not damaged.
 | |||
| No. | Part | Material | |
|---|---|---|---|
| 1 | Body | Fabricated Stainless Steel | ASTM A312 316L |
| ASTM A240 316L | |||
| ASTM A276 316L | |||
| 2 | Cover + Baffle | Fabricated Stainless Steel | ASTM A240 316L |
| ASTM A276 316L | |||
| 3 | Seal | Viton | |
| 4 | Clamp | Stainless Steel | AISI 316 |
 | ||||||||||
| Steam inlet / outlet size | A | B | C | D | F (drain) | G (vent) | H | J | Weights | Volume |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 5.3" (135mm) | 6.3" (161mm) | 11.4" (290mm) | 3.5" (88.9mm) | 1" | 1/2" | 0.9" (23mm) | 8.5" (215mm) | 6.6 lbs.(3.0kg) | 1.2 L (0.3 gal) |
| 3/4" | 6.3" (160mm) | 7.0" (178mm) | 14.6" (371mm) | 4.5" (114.3mm) | 1" | 1/2" | 0.9" (23mm) | 11.4" (290mm) | 5.0 lbs.(11.0kg) | 2.5 L (0.7 gal) |
| 1" | 6.3" (160mm) | 7.0" (178mm) | 14.6" (371mm) | 4.5" (114.3mm) | 1" | 1/2" | 0.9" (23mm) | 11.4" (290mm) | 5.0 lbs.(11.0kg) | 2.5 L (0.7 gal) |
| 1-1/2" | 7.7" (195mm) | 8.4" (213mm) | 19.1" (485mm) | 5.6" (141.3mm) | 1" | 1/2" | 1.1" (27mm) | 15.7" (400mm) | 9.2 lbs.(20.3kg) | 5.5 L (1.5 gal) |
| 2" | 7.7" (195mm) | 8.4" (213mm) | 21.0" (535mm) | 5.6" (141.3mm) | 1" | 1/2" | 1.1" (27mm) | 17.7" (450mm) | 10.0 lbs.(22.0kg) | 6.3 L (1.7 gal) |
 | |
| Pressure / temperature limits | |
|---|---|
| Body design condition | PN7 |
| PMA Maximum allowable pressure | 10 bar g @ 50°C (145 psig @ 122°F) |
| TMA Maximum allowable temperature | 250°C (482°F) |
| Minimum allowable temperature | -10°C (14°F) |
| PMO Maximum operating pressure for saturated steam service | 7.6 bar g (110 psi g) |
| TMO Maximum operating temperature | 250°C @ 6.8 bar g (99 psig @ 482°F) |
| Minimum operating temperature | 0°C (32°F) |
| Designed for a maximum cold hydraulic test pressure of 15 bar g (217 psig) | |
 | |
| Pressure / temperature limits | |
|---|---|
| Body design condition | PN10 |
| PMA Maximum allowable pressure | 10 bar g @ 50°C (145 psi g @ 122°F) |
| TMA Maximum allowable temperature | 250°C (482°F) |
| Minimum allowable temperature | -10°C (14°F) |
| PMO Maximum operating pressure for saturated steam service | 7.6 bar g (110 psi g) |
| TMO Maximum operating temperature | 250°C @ 6.8 bar g (482°F @ 98 psi g) |
| Minimum operating temperature | 0°C (32°F) |
| Designed for a maximum cold hydraulic test pressure of 15 bar g (217 psi g) | |
