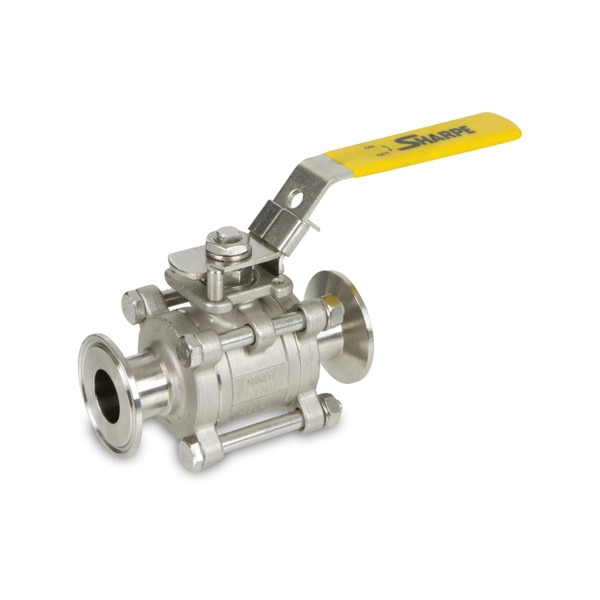

Sharpe Series N66 High Purity Ball Valves are constructed with a 316 stainless steel body. These 3 piece stainless steel ball valves maintain a full port for unrestricted flow of media through the ball. The valve stem is live loaded, blowout proof, anti-static, and features packing that extends the valve life cycle over conventional ball valves - making it the ideal choice for actuation.

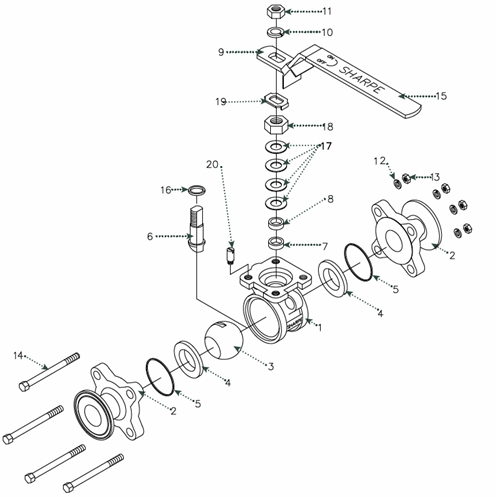

The Series N66 Ball Valves 3-Piece design allows for inline serviceability by swinging the center section out for easy access to internal components without disturbing tubing alignment. Holding together the body are heavy duty 304 stainless steel hex bolts and 316 stainless steel nuts.
Sharpe High Purity Series N66 Valves ship standard with a traditional lever handle that is lockable in both open and closed positions to protect from accidental actuation as well as be compliant for LOTO (Lockout/Tagout) practices. Oval trip-proof handles also available upon request.
Sharpe Series N66 3-Piece Ball Valve Features:
- Full tube port
- 1000 CWP (1/2" - 2")
- 600 CWP (2-1/2" - 4")
- 316 stainless steel body
- Clamp, extended Butt-weld or short Butt-weld ends available
- 3-Piece design
- ISO 5211 mounting pad
- High Cycle Stem Packing
- Live Loaded Stem 4 Belleville Washers
- Lockable handle lever or oval handle
- Cavity-filled seats available (PTFE)
- 180 Grit Mechanical Polish ID
Custom Options (contact for details):
- Oxygen Clean
- Silicone Free
- Oval Handle
