Dixon™ 2-way ball valves are quarter-turn, straight through valves that use a ball to shut-off flow by sealing around matching seats to create a uniform sealing. Ball valves are used in situations where a tight shut-off is necessary.

A wide selection of Ball Valves is offered in varied applications. These valves are simple, rugged, and above all, dependable. Pneumatic and electric actuators are available for automated control. All Dixon™ ball valves are assembled without silicones.

Application

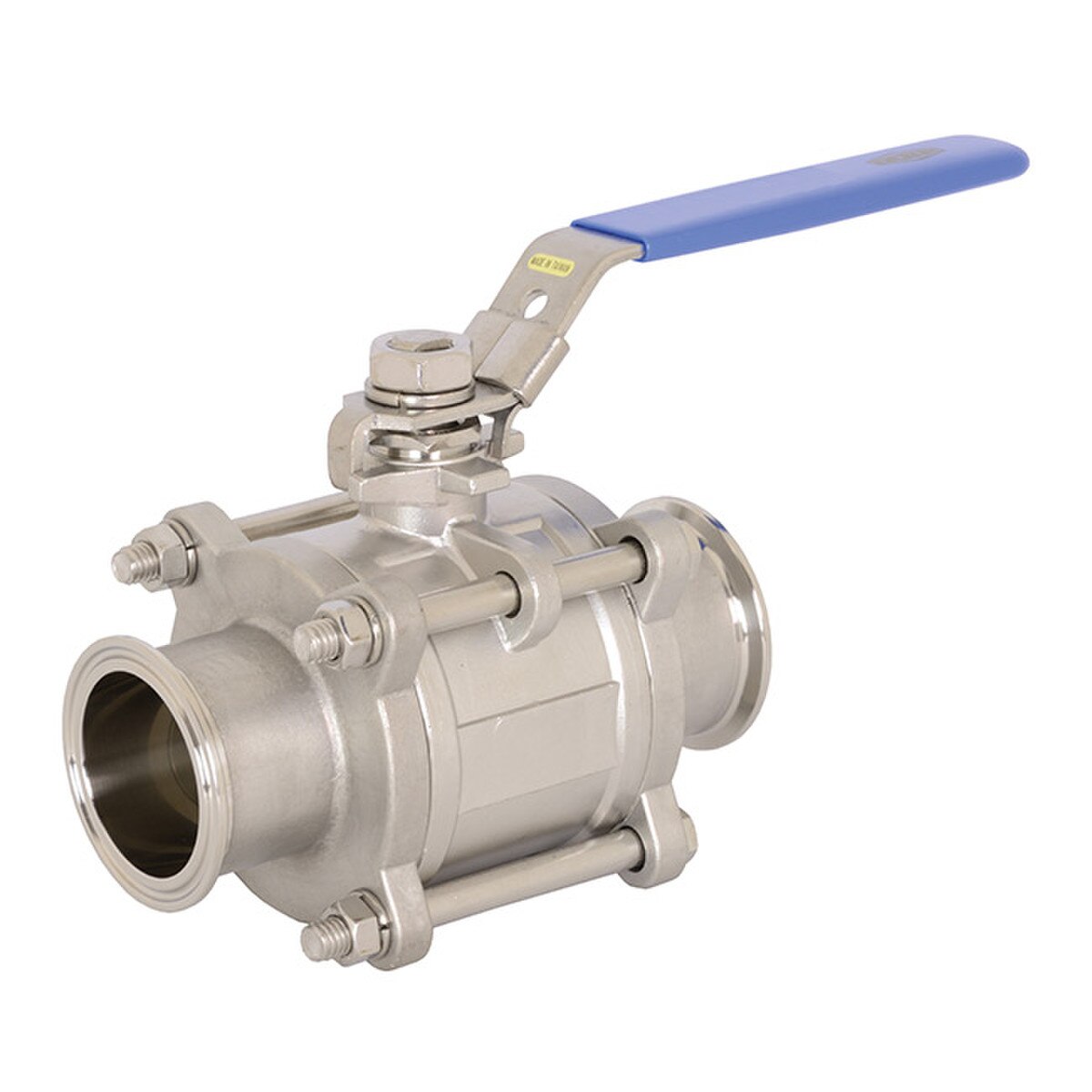

Get control with Dixon™ non-encapsulated 2-way 3 piece stainless steel ball valves. The 3 piece full port valves are used in applications for a wide range of fluids. The 3 piece construction with swing out center section is designed for easy maintenance and cleaning.

Working Principal
The non-encapsulated 2-way 3 piece stainless steel ball valves are actuated manually with a handle only. The non-encapsulated, no-pad design is manufactured to the same superior standards as Dixon™'s encapsulated valves. When encapsulation and automation are not required, the BV2G is the choice for economical operation and exceptional performance.

Features and Benefits
• Sizes ½" thru 4"
• Compact design for areas with tight space restrictions
• Full port design offers lower pressure drop and a less turbulent flow
• Balanced non-encapsulated construction minimizes cold flow
• Precision stainless steel balls reduce torque and friction losses while extending seat life
• Blow-out proof stem
• Live loaded stem packing with Belleville washers
• Lockable handle can prevent accidental actuation when used
• ID polish is Ra 32 minimum
• Pressure rating: 1000 PSI WOG
