• Multi-Port 3-Way Sanitary Stainless Steel Ball Valve (BV3S) Repair Kit

Multi-Port 3-Way Sanitary Stainless Steel Ball Valve (BV3S) Repair Kit

(0)No Reviews yet

Details

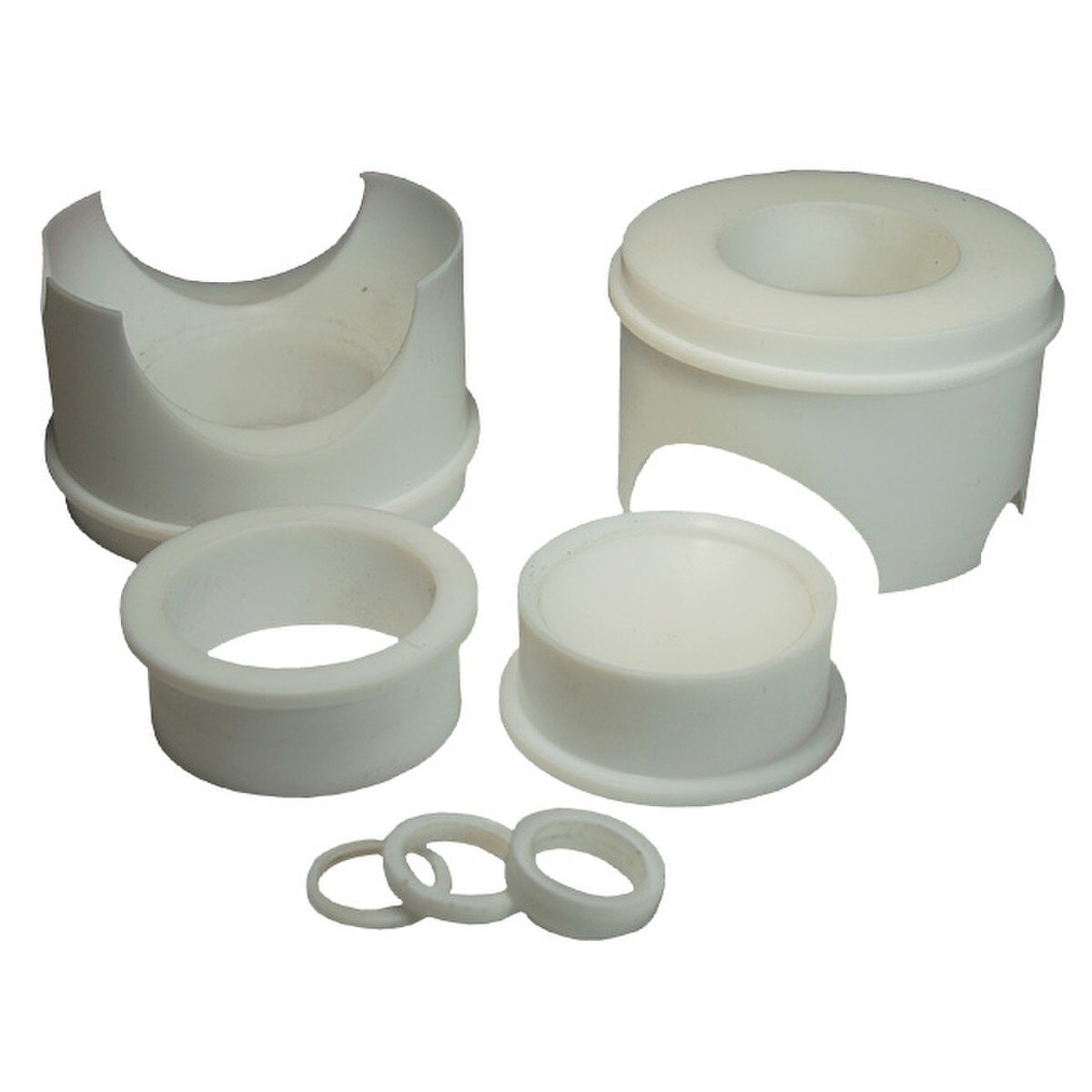

Repair Kit for Multi-Port 3-Way Sanitary Stainless Steel Ball Valve.

    Repair Kit Contains:
  • 2 Body Seals
  • 2 O-Rings
  • 1 Thrust Washer
  • 3 Stem Packings

Seat Materials:

    Virgin PTFE - Virgin polytetrafluoroethylene
  • The standard seat material and ideal for most sanitary applications. Use where a low co-efficient of friction is specified. This is a 3A and FDA approved material.
    RTFE® - 15% Glass reinforced tetrafluoroethylene
  • This has a slightly higher temperature and pressure rating than PTFE. Used for applications requiring a high cycle life than PTFE offers. This is a 3A and FDA approved material.
    25% Carbon PTFE - 25% Carbon reinforced tetrafluoroethylene
  • Use for higher temperature pressure applications in steam and thermal fluid applications. This is a 3A and FDA approved material.
    Stainless Steel PTFE - 50% Stainless Steel filled tetrafluoroethylene
  • Use for higher temperature pressure applications in a sanitary process. This is a 3A and FDA approved material.
    UHMW - Ultra-high Molecular Weight Polyethylene
  • This has a low modulus of abrasion and minimal property degradation when exposed to radiation. Use this where fluorocarbon's are not acceptable. This is a 3A and FDA approved material. Call for pricing and availabilbity on UHMW.
