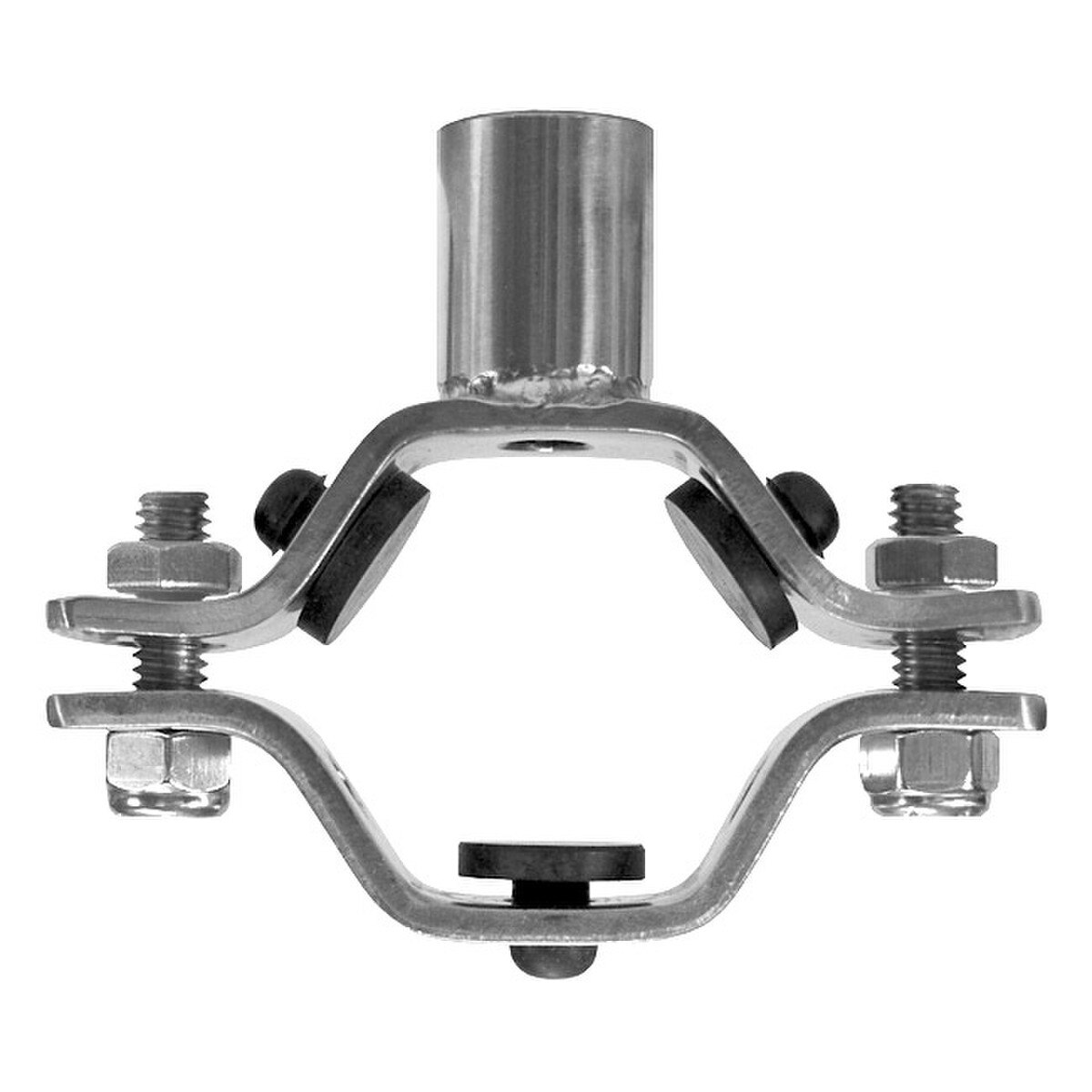

Hex Tube Hanger w/ Nitrile Grommets and 3/8 NPT Coupler
Nitrile grommets have a maximum temperature of 230 degrees Fahrenheit.
Dixon Sanitary polishes all their hangers and ensures that all sharp edges are removed.
Dixon Offers:
- Hex Tube Hangers: For flexibility in temperature variations
- Round Tube Hangers: For resisting movement and vibration
- Block Tube Hangers: For flexibility and FDA applications
Support Guidelines:
- Lines should not be anchored to equipment.
- Lines need to be able to float with temperature variations
Installing:
- Support straight sections every 10 feet
- Support both sides of every valve at both sides as close to the connection as possible
- Support at every change of direction
 | |||||
| Part Number | Tube OD | A | B | C | Material |
|---|---|---|---|---|---|
| B24RGC-G75 | 1/2" - 3/4" | 3.425 | 1.450 | .750 | 304 Stainless |
| B24RGC-G100 | 1" | 3.425 | 1.450 | .750 | 304 Stainless |
| B24RGC-G150 | 1 1/2" | 4.000 | 2.125 | .750 | 304 Stainless |
| B24RGC-G200 | 2" | 4.500 | 2.500 | .750 | 304 Stainless |
| B24RGC-G250 | 2 1/2" | 4.750 | 3.125 | .750 | 304 Stainless |
| B24RGC-G300 | 3" | 5.500 | 3.750 | .750 | 304 Stainless |
| B24RGC-G400 | 4" | 6.750 | 4.750 | .750 | 304 Stainless |
| B24RGC-G600 | 6" | 9.250 | 6.625 | .750 | 304 Stainless |
| B24RGC-G800 | 8" | 11.500 | 8.625 | .750 | 304 Stainless |
