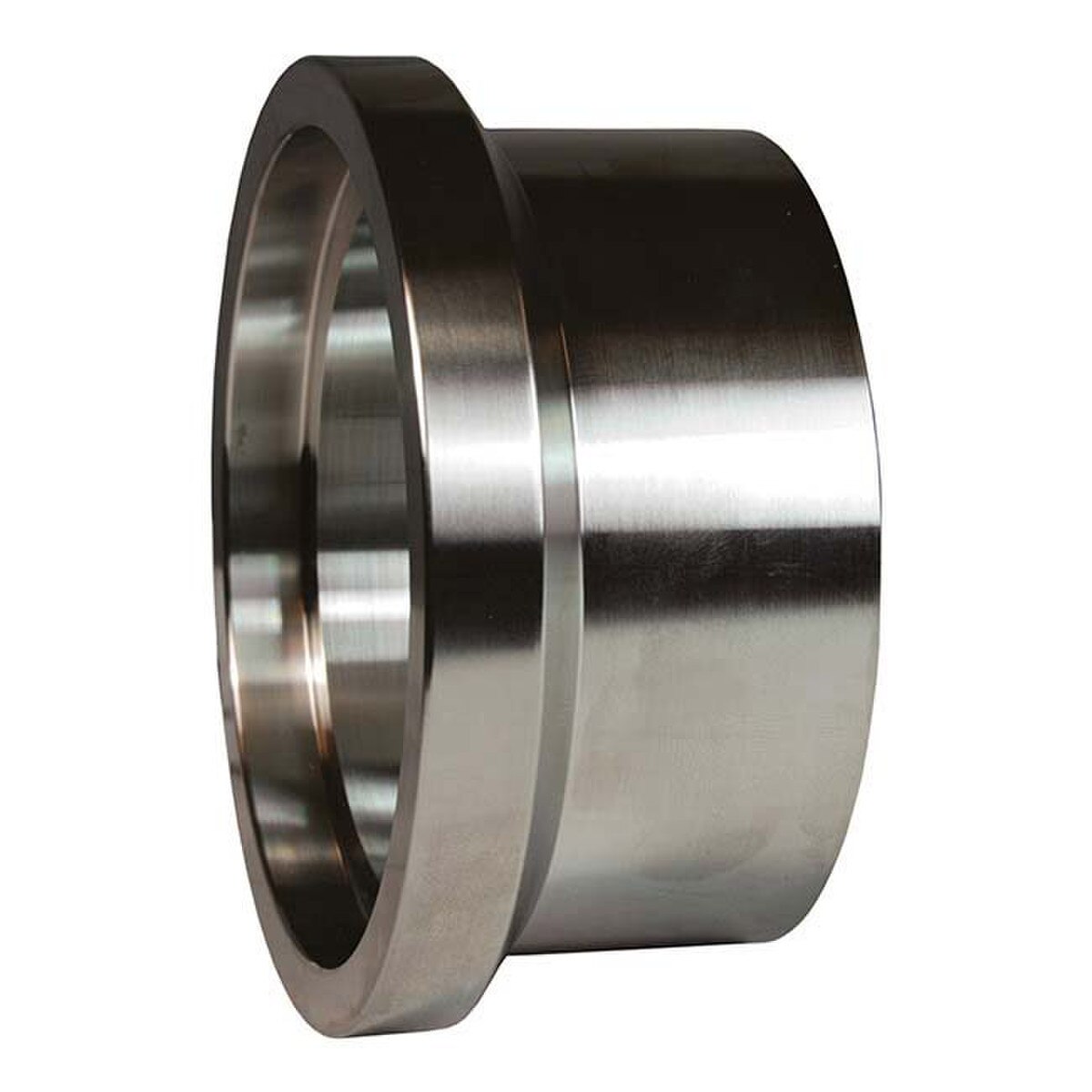

Female I-Line Heavy Wall Ferrules

(0)No Reviews yet

I-Line fittings use a male and female connection to make alignments easier. Just a gasket and a special wing nut or bolted clamp are needed to complete the connection. These fittings have been preferred by the beverage industry for years.

Dixon Sanitary offers a wide range of I-Line fittings in 304 and 316L materials with sizes from 1" to 8". If you don't find what you need just contact us and we can likely get it for you.

Dixon™ Fittings have earned and maintain the 3A standard, which requires an annual evaluation of each product. This standard was collaboratively developed by a group of processors, suppliers, regulatory officials and sanitation specialists and is recognized by the USDA and the USFDA as well as many other authorities. Dixon™ Sanitary Fittings meet the 3A Standards for milk and milk products, #63-03 (Authorization Number 621).

Part NumberTube ODAMaterial
15WHI-G1001"1.500304 Stainless
15WHI-G1501 1/2"1.625304 Stainless
15WHI-G2002"1.750304 Stainless
15WHI-G2502 1/2"1.750304 Stainless
15WHI-G3003"1.812304 Stainless
15WHI-G4004"2.125304 Stainless
15WHI-R1001"1.500316L Stainless
15WHI-R1501 1/2"1.625316L Stainless
15WHI-R2002"1.750316L Stainless
15WHI-R2502 1/2"1.750316L Stainless
15WHI-R3003"1.812316L Stainless
15WHI-R4004"2.125316L Stainless
