Dixon Sanitary STC Stationary Spray Balls

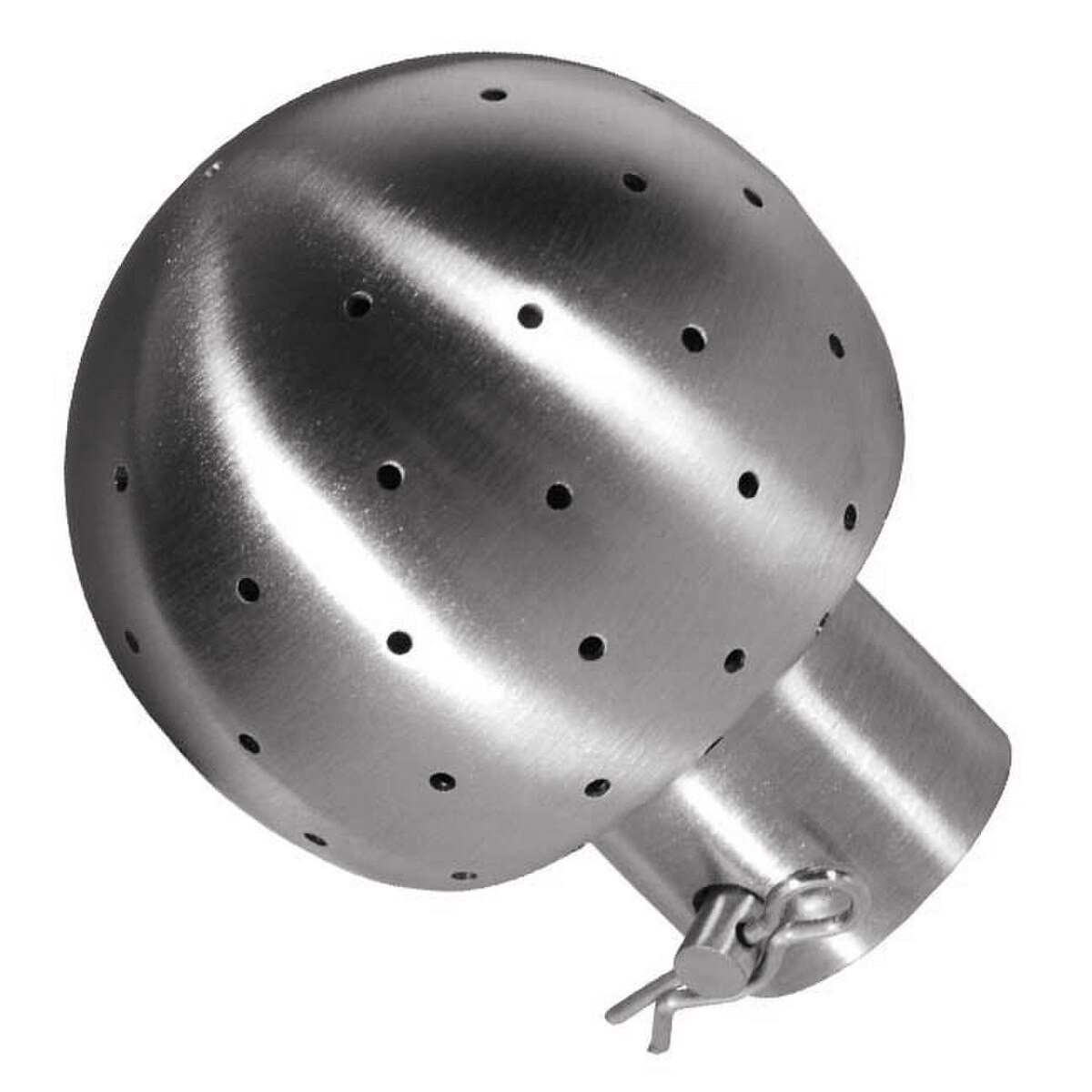

Dixon Sanitary's STC Stationary Spray Balls are typically used in food and beverage applications for cleaning storage tanks. Featuring 2mm spray holes, these sanitary spray balls are available in three different spray patterns - 360°, 180° Bottom, and 180° Top. Blanks are also available as special order so you can create your own custom spray pattern. These stainless steel spray balls are designed to be mounted to either a tube or pipe.
 | ||||||||
| Part Number | Size | Spray Pattern | A | B | C | D | E | Pin Size |
|---|---|---|---|---|---|---|---|---|
| STC-360-R100 | 1" | 360° | 2.50" | 3.04" | 1.005" | 0.975" | 0.445" | 0.226" x 1.47" |
| STC-360-R150 | 1-1/2" | 360° | 2.95" | 3.55" | 1.505" | 1.050" | 0.445" | 0.226" x 1.95" |
| STC-180B-R100 | 1" | 180° Bottom | 3.54" | 2.95" | 1.005" | 0.975" | 0.445" | 0.226" x 1.47" |
| STC-180B-R150 | 1-1/2" | 180° Bottom | 3.54" | 2.95" | 1.505"" | 0.975" | 0.445" | 0.226" x 1.95" |
| STC-180T-R100 | 1" | 180° Top | 3.54" | 2.95" | 1.005" | 0.975" | 0.445" | 0.226" x 1.47" |
| STC-180T-R150 | 1-1/2" | 180° Top | 3.54" | 2.95" | 1.505" | 0.975" | 0.445" | 0.226" x 1.95" |
