Dixon Sanitary B54BMPS Compact Sight Glass - Replacement Glass

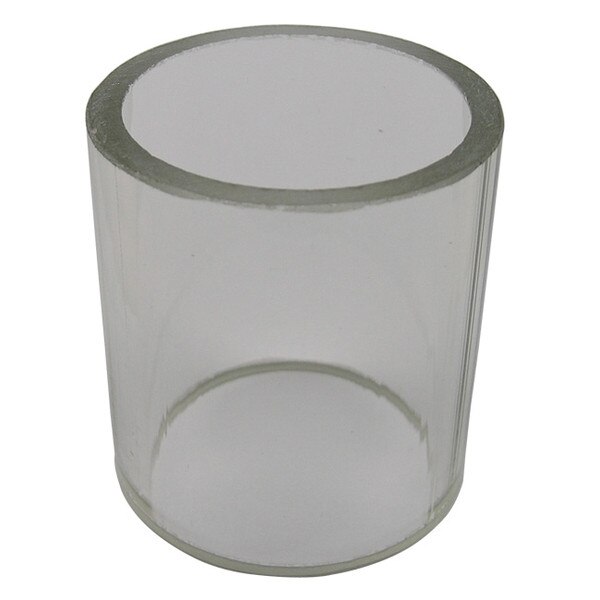

B54BMPS-GL Replacement Glass for Dixon Sanitary B54BMPS Compact Sight Glasses are available in either Borosilicate Glass or Polycarbonate Plastic. Easy replacement with just the use of an allen key. Dixon's compact sight glasses are used widely in the food, dairy and beverage sanitary processes to view products and fluids. The compact design of Dixons Compact Tri-Clamp® Sight Glass is perfect for use with hoses. Dixon Sanitary Sights Glasses are constructed of 316L Stainless Steel with a Borosilicate Glass or Polycarbonate Plastic and Buna or FKM seals. The B54BMPS is a fully serviceable unit with replacement seal kits and glass available. Available for 1", 1-1/2" 2" and 3" Tri-Clamp® hoses and process lines. Rated for 200°F and 100 psi max.
| B54BMPS Replacement Glass Part Numbers | ||
| Part # | Size | Insert Material |
|---|---|---|
| B54BMPS-GL100 | 1" | Borosilicate Glass |
| B54BMPS-GL150 | 1-1/2" | Borosilicate Glass |
| B54BMPS-GL200 | 2" | Borosilicate Glass |
| B54BMPS-GL300 | 3" | Borosilicate Glass |
| B54BMPS-GL400 | 4" | Borosilicate Glass |
| B54BMPS-LX100 | 1" | Polycarbonate Plastic |
| B54BMPS-LX150 | 1-1/2" | Polycarbonate Plastic |
| B54BMPS-LX200 | 2" | Polycarbonate Plastic |
| B54BMPS-LX300 | 3" | Polycarbonate Plastic |
| B54BMPS-LX400 | 4" | Polycarbonate Plastic |
