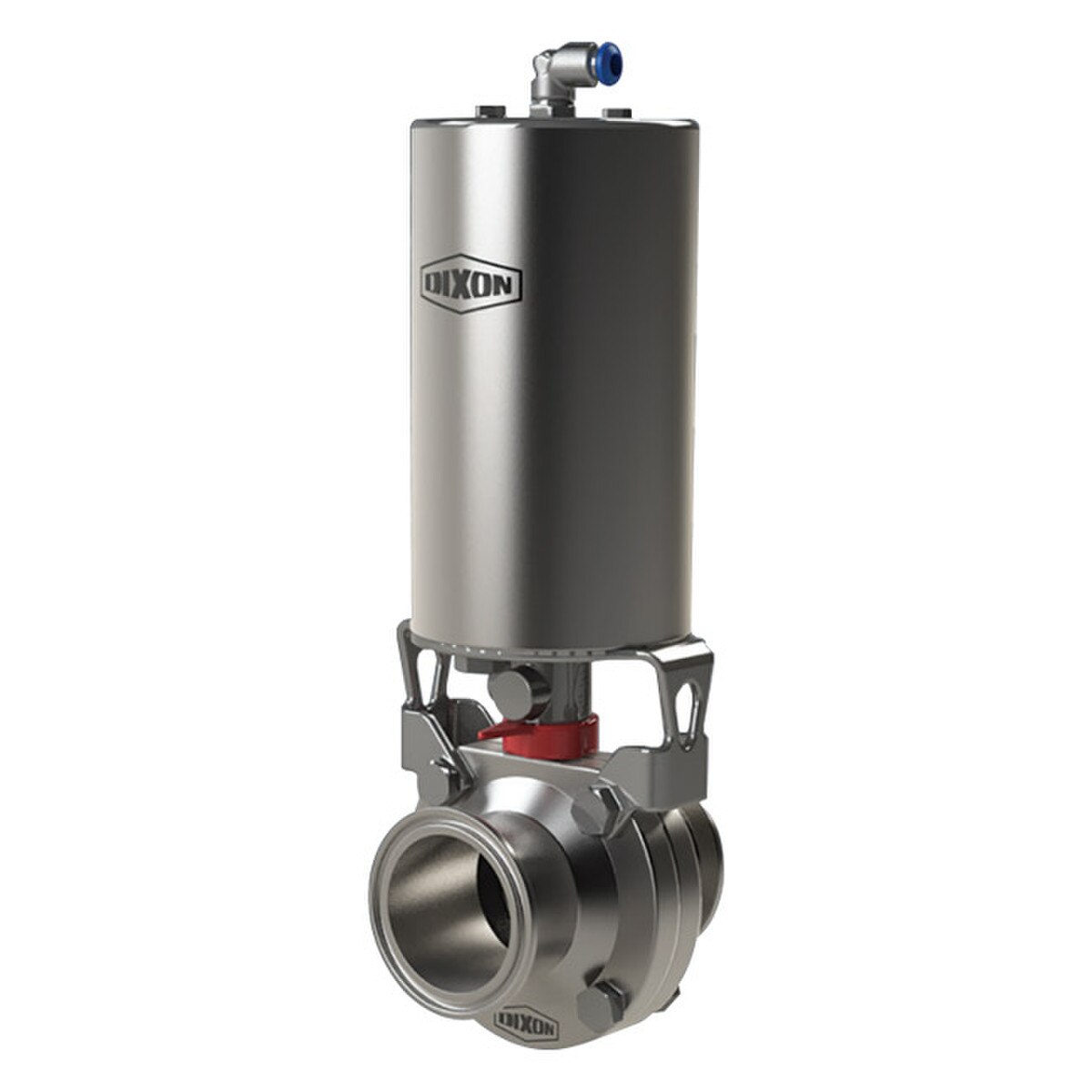

Dixon Sanitary B5107 Butterfly Valve - Clamp Ends w/ EPDM Seat & Actuator (Double Acting)
Dixon Sanitary B5107 Series Actuated Butterfly Valves are shipped fully assembled for quick and simple installation. The "H" Style B5107 Butterfly Valves include a double acting pneumatic vertical canister style actuator. Upon instrument air failure the discs in these valves will remain in place at time of failure to allow the process to continue flowing as it was. All actuated valves ship standard with EPDM seats, please contact us if you would like to substitute silicone or FKM seats.
All Dixon Sanitary B5107 Butterfly Valves are constructed from 316 Stainless Steel with a 32Ra ID/OD polish. Available with your choice of end connection (Tri-Clamp® or weld), seat material (black epdm, red silicone, or brown FKM), and handle style (standard push/pull, infinite, or trigger), or actuator (fail close, fail open, or double acting). All valves are 100% hydraulic tested and 100% inspected prior to shipment! Rated for 0.4 inHg of vacuum at 68°F and operation at temperatures from 15°F to 200°F.
Dixon Sanitary offers a wide selection of stainless steel butterfly valves for use in sanitary process systems. These valves are simple, rugged and above all, dependable. Dixon B5107 Butterfly Valves can be used either as a shutoff valve (on/off service) or as a throttling valve (for flow control). Pneumatic or electric actuators are available for automated control. The slim design, superior craftsmanship, choice materials, top quality strength and surface finish make the B5107 the preference of many industries with sanitary requirements. Various elastomers, end types and accessories make this a highly versatile valve. Typical uses would include isolation of equipment, fill/drain systems, bypass systems and other similar applications.
Improvements Over B5101 Valve:
- Improved EPDM and silicone rubber seat compound with self-lubricating properties
- Reduced torque minimizing the potential for stem twist in high-cycle and viscous/tacky process applications
- Improved sealing and operational characteristics for low temperature applications
- New stronger stem design on sizes 1/2” to 2-1/2”
- Revised exterior valve body geometry for easier cleaning
- Redesigned single-piece mounting bracket and coupler for actuated variants
Dixon B5107 Butterfly Valve Features:
- 316 Stainless Steel Body & Disc
- 100% Hydraulic Tested
- 100% Inspected
- All Wetted Surfaces Finished to < 32Ra
- Field Serviceable (no special tools)
- Tri-Clamp® or Weld Ends
- EPDM (black), Silicone (red), or FKM Seats (black) Available (6" only EPDM or Silicone, 8" only EPDM)
- Standard push/pull, Infinite, or Trigger Handle
- Vertical Canister Style Actuation Available (fail open, fail close, or double acting)
- Vacuum Rating: 0.4 inHg @ 68°F
- Temperature Range: 15°F to 200°F
 | |||||||
| Part Number | Size | A | D | E | F | G | Seat Material |
|---|---|---|---|---|---|---|---|
| B5107E050CC-H | 1/2" | 2.7" | 0.9" | 3.5" | 0.37" | 3.1" | EPDM |
| B5107E075CC-H | 3/4" | 2.7" | 0.9" | 3.5" | 0.62" | 3.1" | EPDM |
| B5107E100CC-H | 1" | 2.7" | 0.9" | 3.5" | 0.9" | 3.1" | EPDM |
| B5107E150CC-H | 1-1/2" | 2.7" | 0.9" | 3.5" | 1.4" | 3.1" | EPDM |
| B5107E200CC-H | 2" | 3.1" | 0.9" | 3.8" | 1.9" | 3.9" | EPDM |
| B5107E250CC-H | 2-1/2" | 3.5" | 0.9" | 3.8" | 2.4" | 4.6" | EPDM |
| B5107E300CC-H | 3" | 3.7" | 1.2" | 4.1" | 2.9" | 5.2" | EPDM |
| B5107E400CC-H | 4" | 4.5" | 1.2" | 4.8" | 3.8" | 6.7" | EPDM |
| B5107 Product Specifications (based on water media @ 68°F) | ||||||
| Size | Break Torque (Silicone) | Break Torque (EPDM) | Break Torque (FKM) | Pressure Rating (psi) | Flow Coefficient (Cv) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 1/2" | 20 | 13 | 70 | 140 | 7 | 2.2 |
| 3/4" | 20 | 13 | 70 | 140 | 11 | 2.2 |
| 1" | 20 | 13 | 70 | 140 | 23 | 2.2 |
| 1-1/2" | 35 | 20 | 125 | 140 | 80 | 2.9 |
| 2" | 35 | 48 | 175 | 140 | 230 | 3.5 |
| 2-1/2" | 133 | 98 | 220 | 110 | 264 | 3.7 |
| 3" | 133 | 146 | 310 | 110 | 372 | 4.4 |
| 4" | 266 | 341 | 450 | 85 | 800 | 9.0 |
| 6" | 700 | 1550 | n/a | 60 | 1200 | 18.5 |
| 8" | n/a | 1650 | n/a | 60 | 2800 | 13.6 |
B5107 Bill of Materials | ||||
| Item Number | Description | Material | Quantity | Type |
| 1C | sprocket | CF8 | 1 | Trigger Handle |
| 2C | handle | CF8 | 1 | Trigger Handle |
| 3C | hex socket bolt | 304 | 1 | Trigger Handle |
| 4C | pin | 304 | 1 | Trigger Handle |
| 5C | spring | 304 | 1 | Trigger Handle |
| 6C | trigger | CF8 | 1 | Trigger Handle |
| 1B | hub | CF8 | 1 | Infinite Handle |
| 2B | hex socket screw | 304 | 1 | Infinite Handle |
| 3B | handle shaft | 304 | 1 | Infinite Handle |
| 4B | spring | polymer | 1 | Infinite Handle |
| 5B | knob | CF8 | 1 | Infinite Handle |
| 1A | hub housing | CF8 | 1 | Pull Handle |
| 2A | hub | CF8 | 1 | Pull Handle |
| 3A | handle shaft | 304 | 1 | Pull Handle |
| 4A | hex socket screw | 304 | 1 | Pull Handle |
| 5A | spring | 304 | 1 | Pull Handle |
| 6A | knob | polymer | 1 | Pull Handle |
| 1 | body half | 316 | 2 | Valve |
| 2 | disc | 316 | 1 | Valve |
| 3 | seat | Silicone, EPDM, FKM | 1 | Valve |
| 4 | bushing | polyacetal | 2 | Valve |
| 5 | hex nut | 304 | 4 | Valve |
| 6 | bolt | 304 | 4 | Valve |
| 6W | optional wing nut | 304 | 4 | Valve |
B5107 Seat Dimensions | ||||
| Size | A | B | C | D |
|---|---|---|---|---|
| 1/2", 3/4", & 1" | 1.42" | 0.83" | 0.37" | 0.77" |
| 1-1/2" | 1.93" | 1.34" | 0.37" | 0.77" |
| 2" | 2.56" | 1.73" | 0.37" | 0.78" |
| 2-1/2" | 3.03" | 2.35" | 0.46" | 0.91" |
| 3" | 3.66" | 2.80" | 0.55" | 1.10" |
| 4" | 4.96" | 3.86" | 0.62" | 1.43" |
| 6" | 6.83" | 5.79" | 0.62" | 1.70" |
| 8" | 9.32 | 7.89" | 0.67" | 1.59" |
