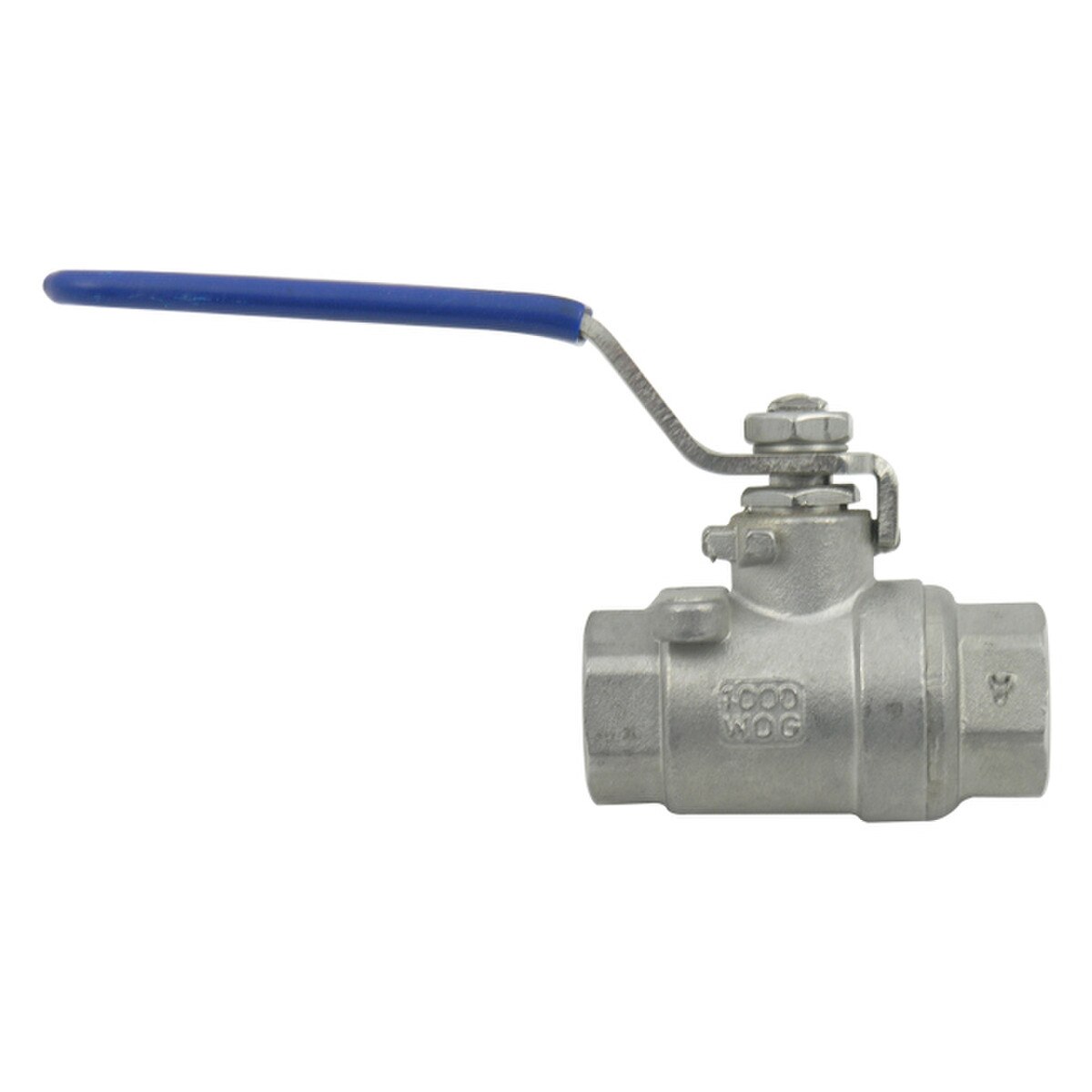

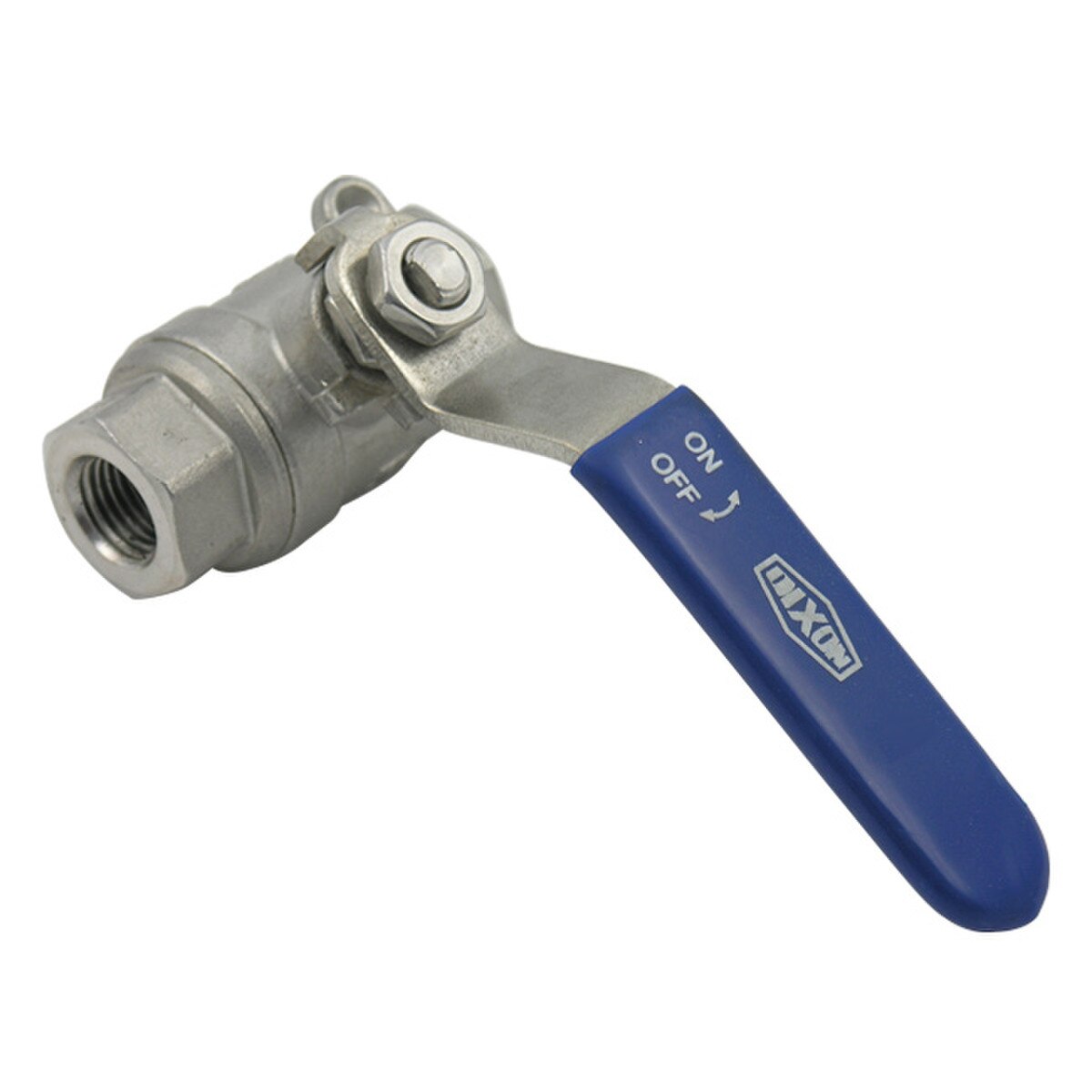

Dixon SSBV Industrial Ball Valves, 316 Stainless Steel (Full Port)
Dixon SSBV Full Port Stainless Steel Industrial Ball Valves are for use on water, oil, or gas lines. These full port ball valves are available from 1/4" NPT up to 3" NPT with the option for private labeled handle covers (contact for details). Full port, blow-out proof stem design is capable of service pressures up to 1000 psi CWP (WOG Service) for 1/2" thru 2" valves and up to 800 psi CWP (WOG Service) for 2-1/2" thru 3" valves. All sizes rated for 100 psi saturated steam service. All SSBV stainless ball valves utilize a PTFE seat, joint gasket, and thrust washer, giving them an operating range from -20°F up to 300°F.
 | ||||
| MFG Part # | Size | A | B | C |
|---|---|---|---|---|
| SSBV25 | 1/4" | 5.25" | 2.75" | 1.25" |
| SSBV38 | 1/4" | 5.25" | 3.00" | 2.25" |
| SSBV50 | 3/8" | 6.50" | 3.25" | 2.75" |
| SSBV75 | 1/2" | 6.75" | 3.50" | 3.00" |
| SSBV100 | 3/4" | 8.25" | 4.00" | 3.50" |
| SSBV125 | 1" | 8.75" | 4.50" | 4.00" |
| SSBV150 | 1-1/2" | 9.75" | 5.00" | 4.50" |
| SSBV200 | 2" | 10.00" | 5.75" | 5.00" |
| SSBV250 | 2-1/2" | 13.50" | 7.75" | 6.50" |
| SSBV300 | 3" | 14.00" | 8.50" | 7.00" |
