Dixon™ 2-way ball valves are quarter-turn, straight through valves that use a ball to shut-off flow by sealing around matching seats to create a uniform sealing. Ball valves are used in situations where a tight shut-off is necessary.

A wide selection of Ball Valves is offered in varied applications. These valves are simple, rugged, and above all, dependable. Pneumatic and electric actuators are available for automated control. All Dixon™ ball valves are assembled without silicones.

Application

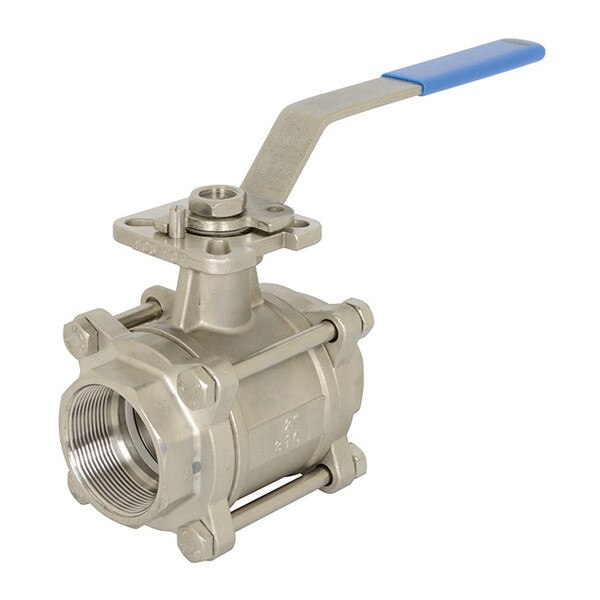

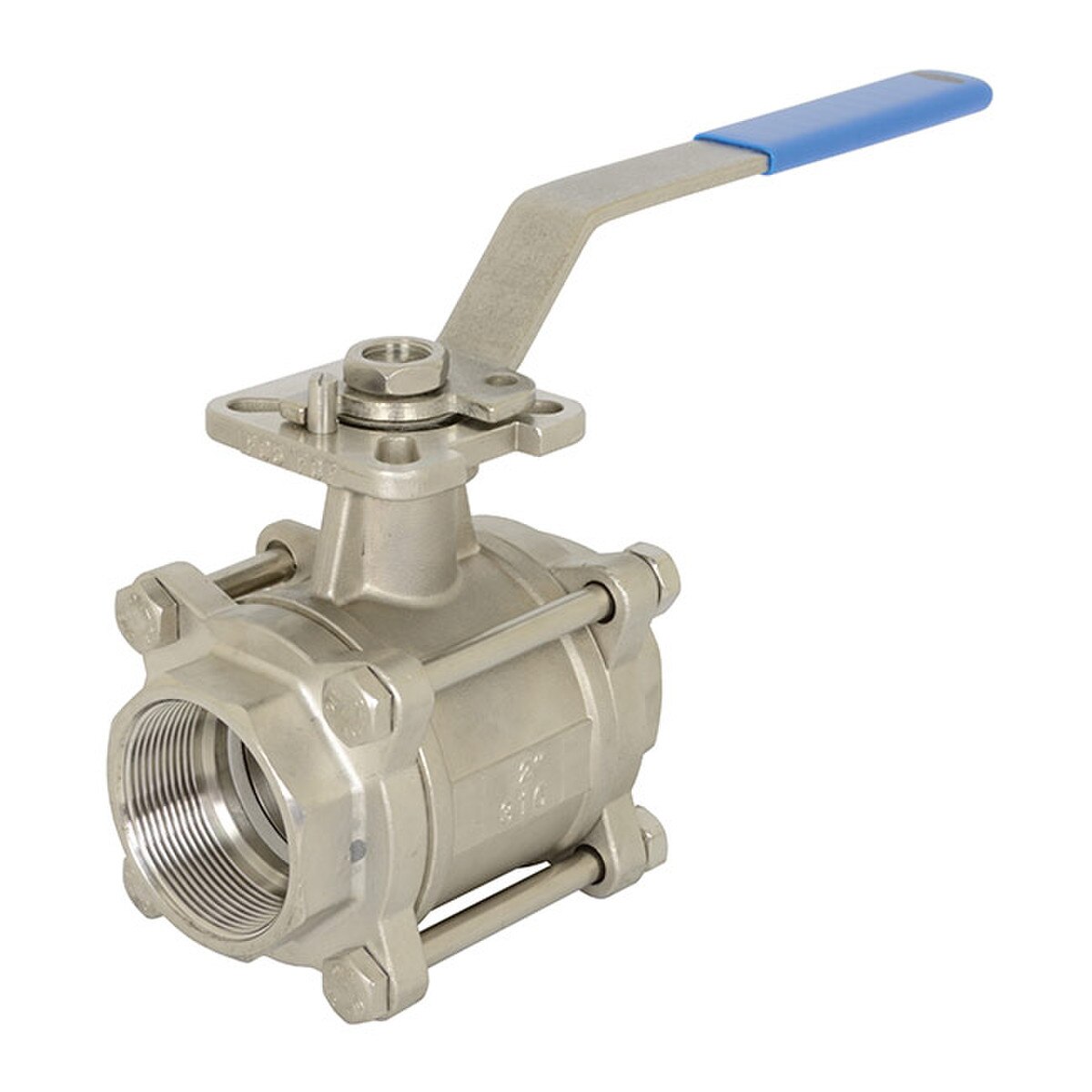

Get control with Dixon™ 3 piece industrial stainless steel ball valves. The 3 piece full port valves are used in industrial and commercial applications for a wide range of fluids. The 3 piece construction with swing out center section is designed for easy maintenance and cleaning. The superior low torque-low profile design results in economical operation and exceptional performance.

Working Principal
A pneumatic or electric actuator operates the 3 piece industrial stainless steel ball valves manually or remotely. Dixon™ pneumatic actuators are available in spring return or double acting. Electric actuators are available in a variety of voltages and options.

Features and Benefits
• Full port stainless steel with female NPT ends
• ISO 5211 mounting pad
• 316 stainless steel stem
• CF8M body and ball
• Swing out design for easy maintenance
• PTFE seats and seals
• Spring-loaded stem packing using Belleville washers
• Pressure ratings:
½" thru 2" 1000 PSI WOG @ 65°F
2½" thru 3" 800 PSI WOG @ 65°F
4" 600 PSI WOG @ 65°F
• Temperature range: -40°F to 400°F
