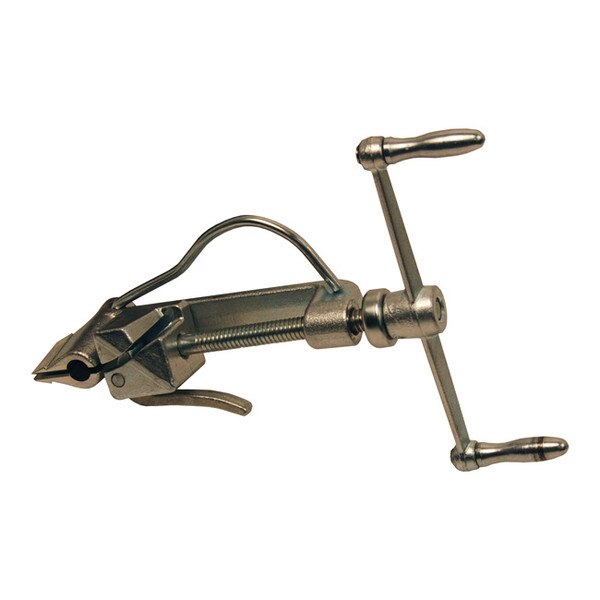

Dixon 51960 Clamping Tool for Bands and Buckles

The Dixon 51960 Screw-Action Tool is for installing band and buckles. Constructed of plated steel and measures in at 12". Optional attachment for installing preformed clamps is available separately (P/N 51970).

Operating Instructions for the 51960 Installation Tool

1. Hold the tool in the left hand so that the cutter bail is on the bottom and the pulling dog lever is on top. Slide the strap tail through the slot on the right side of the tool.
2. Press down on pulling-dog lever and rotate handle to begin tightening. Tighten strap to desired tension. Simultaneously relieve some tension while pushing the tool away as far as possible.
3. Pull the cutter bail to cut the strap tail. Tap the buckle ears down to hold the cut strap tail in place.
