• Clamp x Thread Male Adapter, 316L SS

Clamp x Thread Male Adapter, 316L SS

(0)No Reviews yet
Back

Clamp x Thread Male Adapter made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

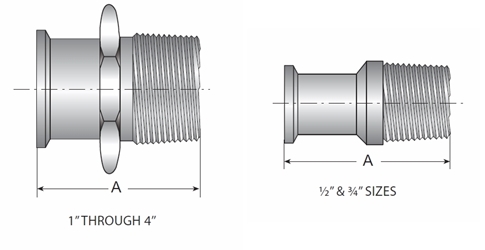

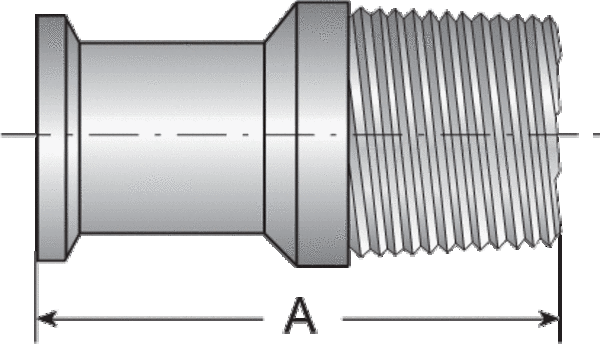

    Ordering CodeNominal Size(in.)A (in.)A (mm)
    TEG216L.5x.125-..1/2 x 1/82.000in.50.8mm
    TEG216L.5x.25-..1/2 x 1/42.000in.50.8mm
    TEG216L.5x.375-..1/2 x 3/82.000in.50.8mm
    TEG216L.5-..1/2 x 1/22.000in.50.8mm
    TEG216L.5x.75-..1/2 x 3/42.000in.50.8mm
    TEG216L.75x.125-..3/4 x 1/82.000in.50.8mm
    TEG216L.75x.25-..3/4 x 1/42.000in.50.8mm
    TEG216L.75x.375-..3/4 x 3/82.000in.50.8mm
    TEG216L.75x.5-..3/4 x 1/22.000in.50.8mm
    TEG216L.75-..3/4 x 3/42.000in.50.8mm
    TEG216L1.0-..12.250in.57.1mm
    TEG216L1.5-..1 1/22.440in.61.9mm
    TEG216L2.0-..22.660in.67.5mm
    TEG216L2.5-..2 1/23.280in.83.3mm
    TEG216L3.0-..33.500in.88.9mm
    TEG216L4.0-..43.810in.96.7mm
