• Clamp x Clamp x Short Reducing Clamp Tee, 316L SS

Clamp x Clamp x Short Reducing Clamp Tee, 316L SS

(0)No Reviews yet
Back

Clamp x Clamp x Short Reducing Clamp Tee made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)
  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

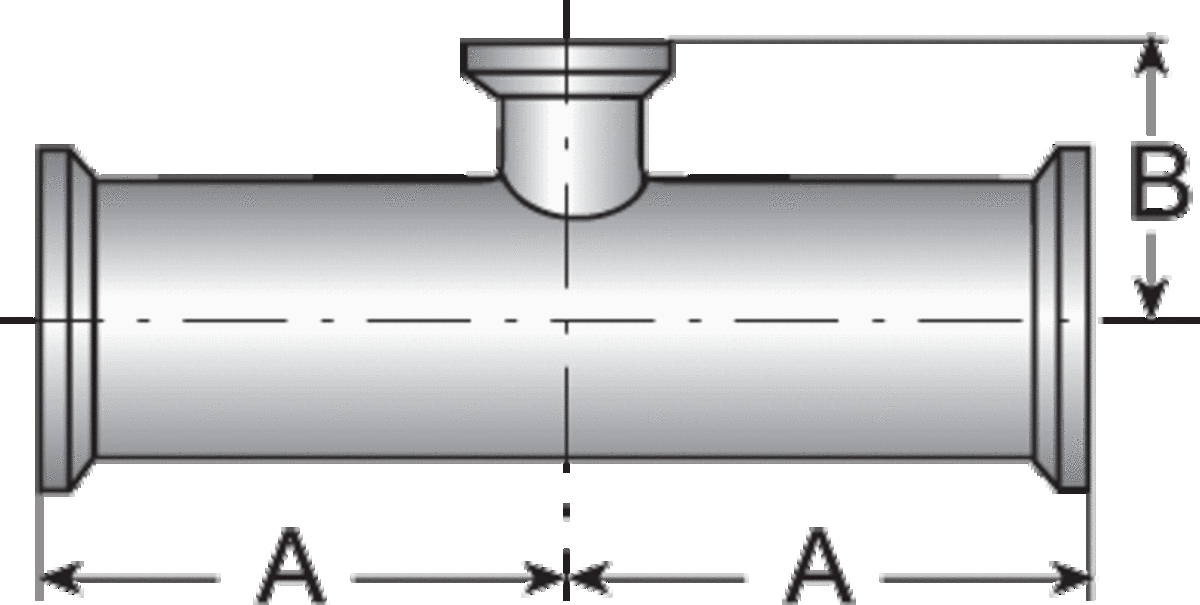

    Ordering CodeNominal Size(in.)A (in.)A (mm)B (in.)B (mm)
    TEG7RS6L.375x.25-..3/8 x 1/42.250in.57.2mm1.000in.25.4mm
    TEG7RS6L.5x.25-..1/2 x 1/42.375in.60.3mm1.000in.25.4mm
    TEG7RS6L.5x.375-..1/2 x 3/82.375in.60.3mm1.000in.25.4mm
    TEG7RS6L.75x.25-..3/4 x 1/42.500in.63.5mm1.000in.25.4mm
    TEG7RS6L.75x.375-..3/4 x 3/82.500in.63.5mm1.000in.25.4mm
    TEG7RS6L.75x.5-..3/4 x 1/22.500in.63.5mm1.000in.25.4mm
    TEG7RS6L1.0x.25-..1 x 1/42.625in.66.7mm1.125in.28.6mm
    TEG7RS6L1.0x.375-..1 x 3/82.625in.66.7mm1.125in.28.6mm
    TEG7RS6L1.0x.5-..1 x 1/22.625in.66.7mm1.125in.28.6mm
    TEG7RS6L1.0x.75-..1 x 3/42.625in.66.7mm1.125in.28.6mm
    TEG7RS6L1.5x.5-..1 1/2 x 1/22.875in.73.0mm1.375in.34.9mm
    TEG7RS6L1.5x.75-..1 1/2 x 3/42.875in.73.0mm1.375in.34.9mm
    TEG7RS6L1.5x.1.0-..1 1/2 x 12.875in.73.0mm1.375in.34.9mm
    TEG7RS6L2.0x.5-..2 x 1/23.375in.85.7mm1.625in.41.3mm
    TEG7RS6L2.0x.75-..2 x 3/43.375in.85.7mm1.625in.41.3mm
    TEG7RS6L2.0x1.0-..2 x 13.375in.85.7mm1.625in.41.3mm
    TEG7RS6L2.0x1.5-..2 x 1 1/23.375in.85.7mm1.625in.41.3mm
    TEG7RS6L2.5x.5-..2 1/2 x 1/23.625in.92.1mm1.875in.47.6mm
    TEG7RS6L2.5x.75-..2 1/2 x 3/43.625in.92.1mm1.875in.47.6mm
    TEG7RS6L2.5x1.0-..2 1/2 x 13.625in.92.1mm1.875in.47.6mm
    TEG7RS6L2.5x1.5-..2 1/2 x 1 1/23.625in.92.1mm1.875in.47.6mm
    TEG7RS6L2.5x2.0-..2 1/2 x 23.625in.92.1mm1.875in.47.6mm
    TEG7RS6L3.0x.5-..3 x 1/23.875in.98.4mm2.125in.54.0mm
    TEG7RS6L3.0x.75-..3 x 3/43.875in.98.4mm2.125in.54.0mm
    TEG7RS6L3.0x1.0-..3 x 13.875in.98.4mm2.125in.54.0mm
    TEG7RS6L3.0x1.5-..3 x 1 1/23.875in.98.4mm2.125in.54.0mm
    TEG7RS6L3.0x2.0-..3 x 23.875in.98.4mm2.125in.54.0mm
    TEG7RS6L3.0x2.5-..3 x 2 1/23.875in.98.4mm2.125in.54.0mm
    TEG7RS6L4.0x.5-..4 x 1/24.750in.120.7mm2.625in.66.7mm
    TEG7RS6L4.0x.75-..4 x 3/44.750in.120.7mm2.625in.66.7mm
    TEG7RS6L4.0x1.0-..4 x 14.750in.120.7mm2.625in.66.7mm
    TEG7RS6L4.0x1.5-..4 x 1 1/24.750in.120.7mm2.625in.66.7mm
    TEG7RS6L4.0x2.0-..4 x 24.750in.120.7mm2.625in.66.7mm
    TEG7RS6L4.0x2.5-..4 x 2 1/24.750in.120.7mm2.625in.66.7mm
    TEG7RS6L4.0x3.0-..4 x 34.750in.120.7mm2.625in.66.7mm
    TEG7RS6L6.0x.5-..6 x 1/27.125in.181.0mm3.625in.92.1mm
    TEG7RS6L6.0x.75-..6 x 3/47.125in.181.0mm3.625in.92.1mm
    TEG7RS6L6.0x1.0-..6 x 17.125in.181.0mm3.625in.92.1mm
    TEG7RS6L6.0x1.5-..6 x 1 1/27.125in.181.0mm3.625in.92.1mm
    TEG7RS6L6.0x2.0-..6 x 27.125in.181.0mm3.625in.92.1mm
    TEG7RS6L6.0x2.5-..6 x 2 1/27.125in.181.0mm3.625in.92.1mm
    TEG7RS6L6.0x3.0-..6 x 37.125in.181.0mm3.625in.92.1mm
    TEG7RS6L6.0x4.0-..6 x 47.125in.181.0mm3.750in.95.3mm
