• Clamp Weld Ferrule, 316L SS

Clamp Weld Ferrule, 316L SS

(0)No Reviews yet
Back

Clamp Weld Ferrule made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

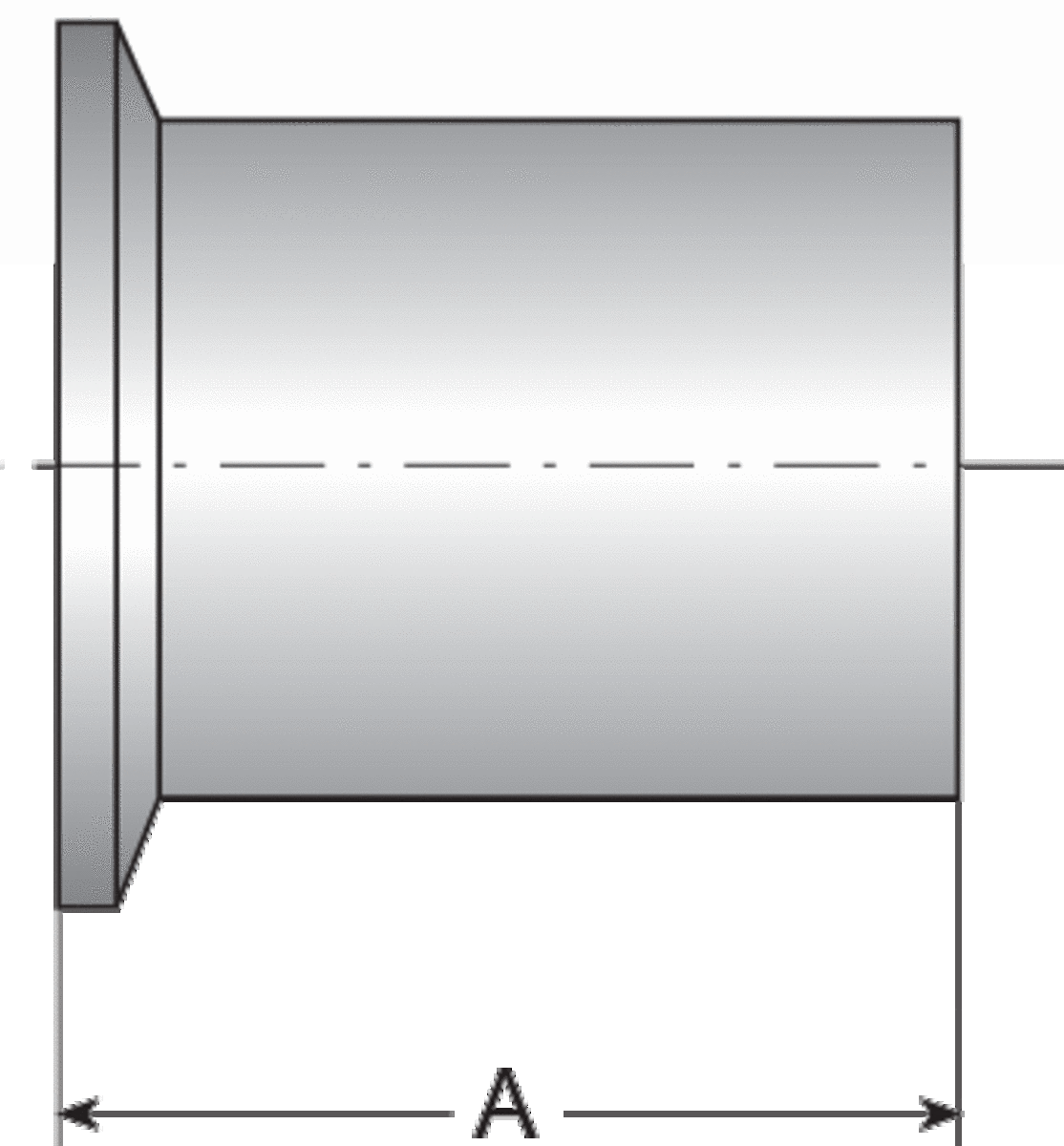

    Ordering CodeNominal Size(in.)TypeA (in.)A (mm)D (in.)D (mm)
    TEG14AM76L.25-..1/4A1.750in.44.5mm0.984in.24.9mm
    TEG14AM76L.375-..3/8A1.750in.44.5mm0.984in.24.9mm
    TEG14AM76L.5-..1/2A1.750in.44.5mm0.984in.24.9mm
    TEG14AM76L.75-..3/4A1.750in.44.5mm0.984in.24.9mm
    TEG14AM76L1.0-A..1A1.750in.44.5mm1.339in.34.0mm
    TEG14AM76L1.0-..1B1.750in.44.5mm1.984in.50.3mm
    TEG14AM76L1.5-..1 1/2B1.750in.44.5mm1.984in.50.3mm
    TEG14AM76L2.0-..2B2.250in.57.2mm2.516in.63.9mm
    TEG14AM76L2.5-..2 1/2B2.250in.57.2mm3.047in.77.3mm
    TEG14AM76L3.0-..3B2.250in.57.2mm3.579in.90.9mm
    TEG14AM76L4.0-..4B2.250in.57.2mm4.682in.118.9mm
    TEG14AM76L6.0-..6B3.000in.76.2mm6.570in.166.8mm
