Cap, 316L SS

(0)No Reviews yet
Back

Cap made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

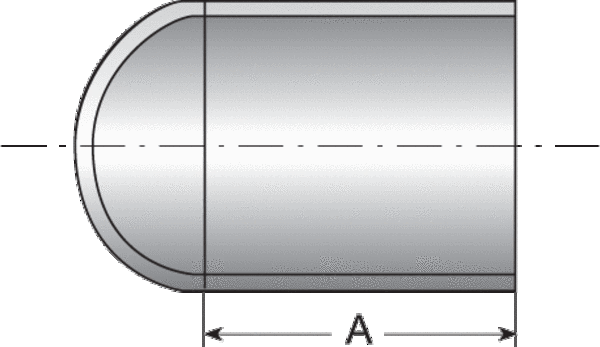

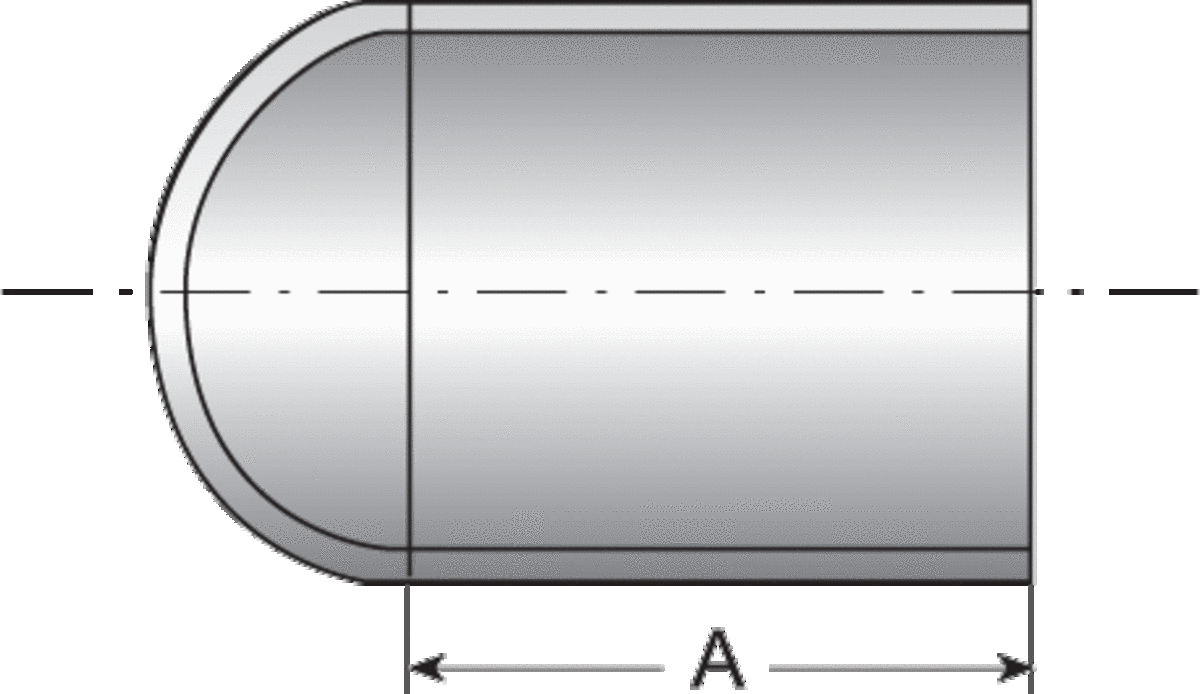

    Ordering CodeNominal Size(in.)A (in.)A (mm)
    TE16W6L.5-..1/21.500in.38.1mm
    TE16W6L.75-..3/41.500in.38.1mm
    TE16W6L1.0-..11.500in.38.1mm
    TE16W6L1.5-..1 1/21.500in.38.1mm
    TE16W6L2.0-..21.500in.38.1mm
    TE16W6L2.5-..2 1/21.500in.38.1mm
    TE16W6L3.0-..31.750in.44.5mm
    TE16W6L4.0-..42.000in.50.8mm
    TE16W6L6.0-..62.500in.63.5mm
