Behringer Safety Plates
Details

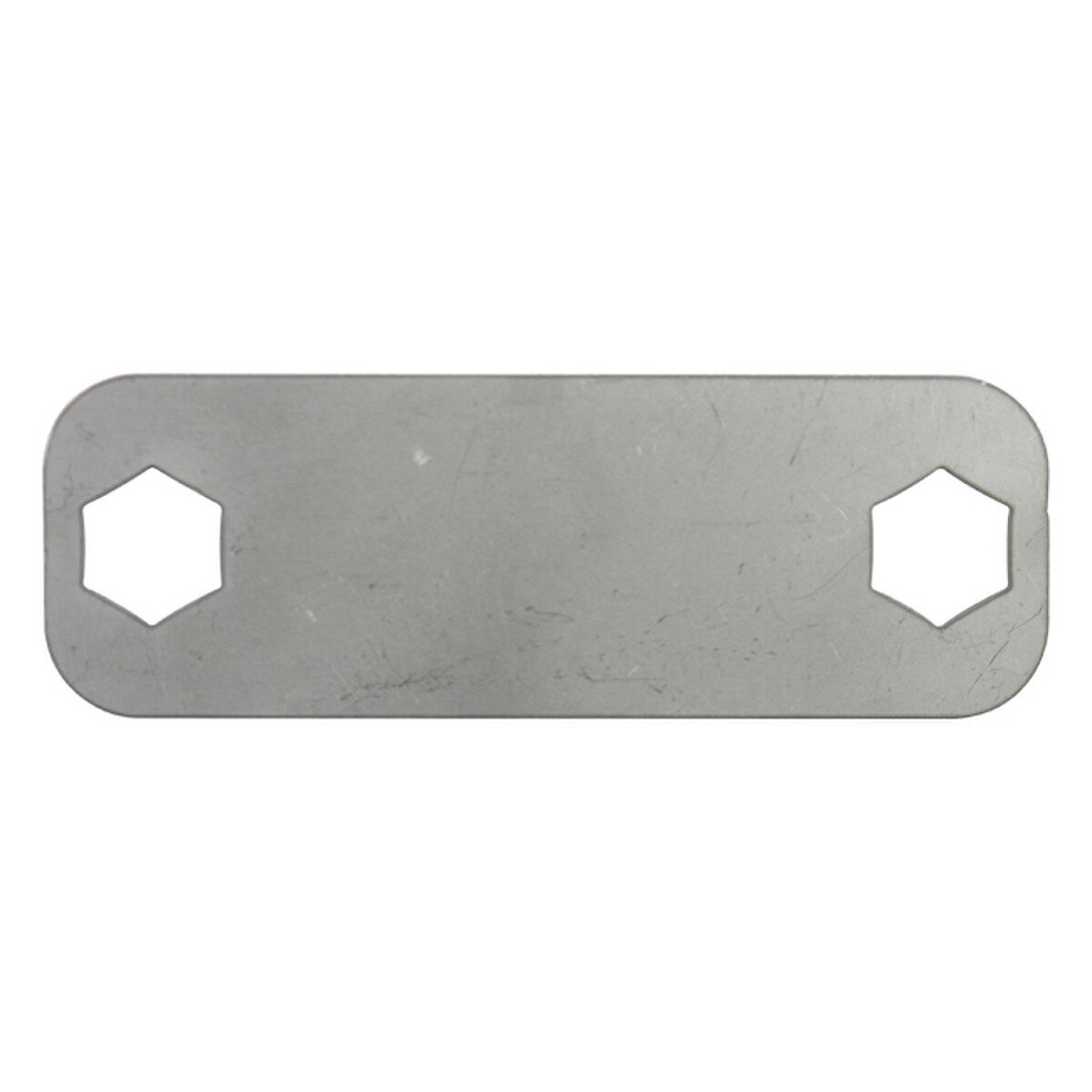

A part of Behringer's stacking kit, these plates are placed between the hanger inserts. The stacking kit is compatible with weld, hang or base plate setups.
Engineering, plant, and maintenance personnel appreciate Behringer block hangers rugged construction, simplicity and clean design. Behringer clamp components can be quickly and effectively secured and are virtually maintenance free. The modular clamp design assures greater flexibility in assembly, adjustment and stacking as well as an endless variety of application configurations to suit every need. All clamp halves in the Sanitary Series incorporate a "smooth bore" contact surface between clamp and tube diameter. This concept was developed to prevent bacteria from harboring in any recesses.
The injection-molded clamp halves also have outstanding physical properties. They offer excellent dielectrical and acoustical insulating properties. Molded from either Santoprene (an FDA regulated thermoplastic rubber) or Polypropylene, these clamp halves offer a wide range of thermal properties (-22ºF to 212ºF for PP; -40ºF to 302ºF for SP). Santoprene has excellent resistance to a broad range of foods such as milk, beer, wine, vinegar, and beverage syrups. The Santoprene clamp halves also offer resistance to salt water, oils as well as most acids, alkalis and other chemical solutions.
Thermal expansion guides are an optional upgrade for these hangers. They allow for axial expansion of the tube or pipe due to thermal expansion. The guides are constructed from black Santoprene for easy service identification.
- Group 3 available from 1/4" Tube up to 1" Tube
- Group 6 available from 1/4" Tube up to 2" Tube
- Group 7 available from 2 1/2" Tube up to 3 1/2" Tube
- Group 7A available for 4" Tube
- Group 8 available for 6" Tube and Pipe
