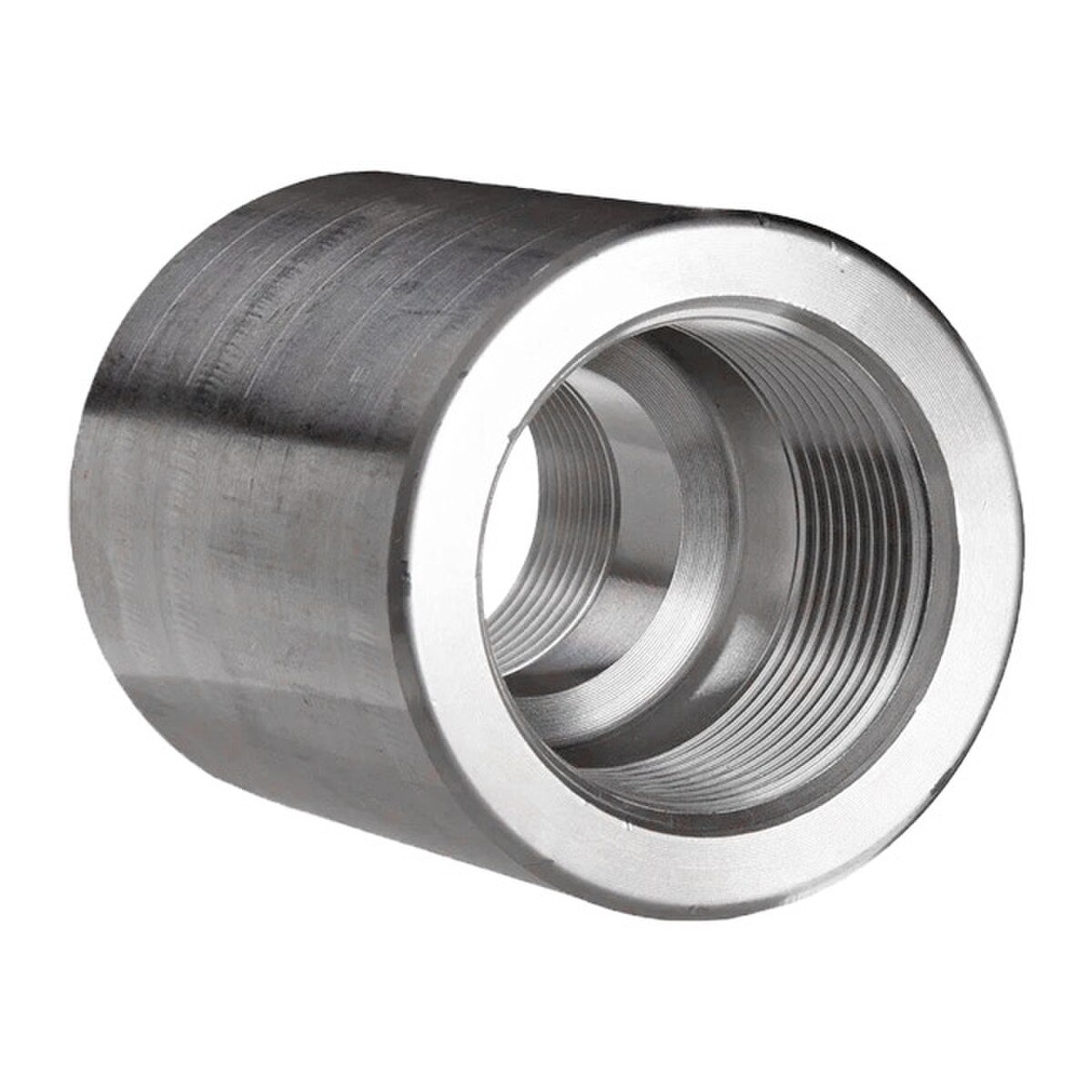

3000# Forged Reducing Coupling Stainless Steel Pipe Fittings - Threaded
3000# reducing coupling pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with threaded end connections. Available in 304 and 316 stainless steel alloys.
 | |||||||||||
| Part No. | Size (in.) | T1-n | T2-n | L | D | d | d1 | L1 | L2 | L3 | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3MTHRCPL4S-025-013 | 1/4" x 1/8" | 0.71" (18.0mm) | 1.06" (26.9mm) | 1.38" (35.1mm) | 0.75" (19.1mm) | 0.44" (11.2mm) | 0.32" (8.1mm) | 0.50" (12.7mm) | 0.35" (8.9mm) | 0.69" (17.5mm) | 304 SS |
| 3MTHRCPL4S-038-013 | 3/8" x 1/8" | 0.71" (18.0mm) | 1.06" (26.9mm) | 1.50" (38.1mm) | 0.87" (22.1mm) | 0.57" (14.5mm) | 0.32" (8.1mm) | 0.52" (13.2mm) | 0.35" (8.9mm) | 0.75" (19.1mm) | 304 SS |
| 3MTHRCPL4S-038-025 | 3/8" x 1/4" | 0.71" (18.0mm) | 0.71" (18.0mm) | 1.50" (38.1mm) | 0.87" (22.1mm) | 0.57" (14.5mm) | 0.44" (11.2mm) | 0.52" (13.2mm) | 0.50" (12.7mm) | 0.75" (19.1mm) | 304 SS |
| 3MTHRCPL4S-050-025 | 1/2" x 1/4" | 0.55" (14.0mm) | 0.71" (18.0mm) | 1.89" (48.0mm) | 1.10" (27.9mm) | 0.68" (17.3mm) | 0.44" (11.2mm) | 0.68" (17.3mm) | 0.50" (12.7mm) | 0.94" (23.9mm) | 304 SS |
| 3MTHRCPL4S-050-038 | 1/2" x 3/8" | 0.55" (14.0mm) | 0.71" (18.0mm) | 1.89" (48.0mm) | 1.10" (27.9mm) | 0.68" (17.3mm) | 0.57" (14.5mm) | 0.68" (17.3mm) | 0.52" (13.2mm) | 0.94" (23.9mm) | 304 SS |
| 3MTHRCPL4S-075-038 | 3/4" x 3/8" | 0.55" (14.0mm) | 0.71" (18.0mm) | 2.01" (51.1mm) | 1.38" (35.1mm) | 0.89" (22.6mm) | 0.57" (14.5mm) | 0.70" (17.8mm) | 0.52" (13.2mm) | 1.00" (25.4mm) | 304 SS |
| 3MTHRCPL4S-075-050 | 3/4" x 1/2" | 0.55" (14.0mm) | 0.55" (14.0mm) | 2.01" (51.1mm) | 1.38" (35.1mm) | 0.89" (22.6mm) | 0.68" (17.3mm) | 0.70" (17.8mm) | 0.68" (17.3mm) | 1.00" (25.4mm) | 304 SS |
| 3MTHRCPL4S-100-038 | 1" x 3/8" | 0.45" (11.4mm) | 0.71" (18.0mm) | 2.36" (59.9mm) | 1.73" (43.9mm) | 1.12" (28.4mm) | 0.57" (14.5mm) | 0.83" (21.1mm) | 0.52" (13.2mm) | 1.18" (30.0mm) | 304 SS |
| 3MTHRCPL4S-100-050 | 1" x 1/2" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.36" (59.9mm) | 1.73" (43.9mm) | 1.12" (28.4mm) | 0.68" (17.3mm) | 0.83" (21.1mm) | 0.68" (17.3mm) | 1.18" (30.0mm) | 304 SS |
| 3MTHRCPL4S-100-075 | 1" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.36" (59.9mm) | 1.73" (43.9mm) | 1.12" (28.4mm) | 0.89" (22.6mm) | 0.83" (21.1mm) | 0.70" (17.8mm) | 1.18" (30.0mm) | 304 SS |
| 3MTHRCPL4S-125-050 | 1-1/4" x 1/2" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.64" (67.1mm) | 2.24" (56.9mm) | 1.46" (37.1mm) | 0.68" (17.3mm) | 0.85" (21.6mm) | 0.68" (17.3mm) | 1.32" (33.5mm) | 304 SS |
| 3MTHRCPL4S-125-075 | 1-1/4" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.64" (67.1mm) | 2.24" (56.9mm) | 1.46" (37.1mm) | 0.89" (22.6mm) | 0.85" (21.6mm) | 0.70" (17.8mm) | 1.32" (33.5mm) | 304 SS |
| 3MTHRCPL4S-125-100 | 1-1/4" x 1" | 0.45" (11.4mm) | 0.45" (11.4mm) | 2.64" (67.1mm) | 2.24" (56.9mm) | 1.46" (37.1mm) | 1.12" (28.4mm) | 0.85" (21.6mm) | 0.83" (21.1mm) | 1.32" (33.5mm) | 304 SS |
| 3MTHRCPL4S-150-075 | 1-1/2" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 3.11" (79.0mm) | 2.52" (64.0mm) | 1.70" (43.2mm) | 0.89" (22.6mm) | 0.85" (21.6mm) | 0.70" (17.8mm) | 1.56" (39.6mm) | 304 SS |
| 3MTHRCPL4S-150-100 | 1-1/2" x 1" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.11" (79.0mm) | 2.52" (64.0mm) | 1.70" (43.2mm) | 1.12" (28.4mm) | 0.85" (21.6mm) | 0.83" (21.1mm) | 1.56" (39.6mm) | 304 SS |
| 3MTHRCPL4S-150-125 | 1-1/2" x 1-1/4" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.11" (79.0mm) | 2.52" (64.0mm) | 1.70" (43.2mm) | 1.46" (37.1mm) | 0.85" (21.6mm) | 0.85" (21.6mm) | 1.56" (39.6mm) | 304 SS |
| 3MTHRCPL4S-200-075 | 2" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 3.39" (86.1mm) | 2.99" (75.9mm) | 2.17" (55.1mm) | 0.89" (22.6mm) | 0.87" (22.1mm) | 0.70" (17.8mm) | 1.69" (42.9mm) | 304 SS |
| 3MTHRCPL4S-200-100 | 2" x 1" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.39" (86.1mm) | 2.99" (75.9mm) | 2.17" (55.1mm) | 1.12" (28.4mm) | 0.87" (22.1mm) | 0.83" (21.1mm) | 1.69" (42.9mm) | 304 SS |
| 3MTHRCPL4S-200-125 | 2" x 1-1/4" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.39" (86.1mm) | 2.99" (75.9mm) | 2.17" (55.1mm) | 1.46" (37.1mm) | 0.87" (22.1mm) | 0.85" (21.6mm) | 1.69" (42.9mm) | 304 SS |
| 3MTHRCPL4S-250-050 | 2-1/2" x 1/2" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.39" (86.1mm) | 2.99" (75.9mm) | 2.17" (55.1mm) | 1.70" (43.2mm) | 0.87" (22.1mm) | 0.85" (21.6mm) | 1.69" (42.9mm) | 304 SS |
| 3MTHRCPL4S-250-100 | 2-1/2" x 1" | 0.31" (7.9mm) | 0.45" (11.4mm) | 3.62" (91.9mm) | 3.62" (91.9mm) | 2.58" (65.5mm) | 1.12" (28.4mm) | 1.18" (30.0mm) | 0.83" (21.1mm) | 1.81" (46.0mm) | 304 SS |
| 3MTHRCPL4S-250-150 | 2-1/2" x 1-1/2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 3.62" (91.9mm) | 3.62" (91.9mm) | 2.58" (65.5mm) | 1.70" (43.2mm) | 1.18" (30.0mm) | 0.85" (21.6mm) | 1.81" (46.0mm) | 304 SS |
| 3MTHRCPL4S-250-200 | 2-1/2" x 2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 3.62" (91.9mm) | 3.62" (91.9mm) | 2.58" (65.5mm) | 2.17" (55.1mm) | 1.18" (30.0mm) | 0.87" (22.1mm) | 1.81" (46.0mm) | 304 SS |
| 3MTHRCPL4S-300-150 | 3" x 1-1/2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 4.25" (108.0mm) | 4.25" (108.0mm) | 3.21" (81.5mm) | 1.70" (43.2mm) | 1.27" (32.3mm) | 0.85" (21.6mm) | 2.13" (54.1mm) | 304 SS |
| 3MTHRCPL4S-300-200 | 3" x 2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 4.25" (108.0mm) | 4.25" (108.0mm) | 3.21" (81.5mm) | 2.17" (55.1mm) | 1.27" (32.3mm) | 0.87" (22.1mm) | 2.13" (54.1mm) | 304 SS |
| 3MTHRCPL4S-300-250 | 3" x 2-1/2" | 0.31" (7.9mm) | 0.31" (7.9mm) | 4.25" (108.0mm) | 4.25" (108.0mm) | 3.21" (81.5mm) | 2.58" (65.5mm) | 1.27" (32.3mm) | 1.18" (30.0mm) | 2.13" (54.1mm) | 304 SS |
| 3MTHRCPL4S-400-200 | 4" x 2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 4.76" (120.9mm) | 5.51" (140.0mm) | 4.20" (106.7mm) | 2.17" (55.1mm) | 1.34" (34.0mm) | 0.87" (22.1mm) | 2.38" (60.5mm) | 304 SS |
| 3MTHRCPL6S-025-013 | 1/4" x 1/8" | 0.71" (18.0mm) | 1.06" (26.9mm) | 1.38" (35.1mm) | 0.75" (19.1mm) | 0.44" (11.2mm) | 0.32" (8.1mm) | 0.50" (12.7mm) | 0.35" (8.9mm) | 0.69" (17.5mm) | 316 SS |
| 3MTHRCPL6S-038-013 | 3/8" x 1/8" | 0.71" (18.0mm) | 1.06" (26.9mm) | 1.50" (38.1mm) | 0.87" (22.1mm) | 0.57" (14.5mm) | 0.32" (8.1mm) | 0.52" (13.2mm) | 0.35" (8.9mm) | 0.75" (19.1mm) | 316 SS |
| 3MTHRCPL6S-038-025 | 3/8" x 1/4" | 0.71" (18.0mm) | 0.71" (18.0mm) | 1.50" (38.1mm) | 0.87" (22.1mm) | 0.57" (14.5mm) | 0.44" (11.2mm) | 0.52" (13.2mm) | 0.50" (12.7mm) | 0.75" (19.1mm) | 316 SS |
| 3MTHRCPL6S-050-025 | 1/2" x 1/4" | 0.55" (14.0mm) | 0.71" (18.0mm) | 1.89" (48.0mm) | 1.10" (27.9mm) | 0.68" (17.3mm) | 0.44" (11.2mm) | 0.68" (17.3mm) | 0.50" (12.7mm) | 0.94" (23.9mm) | 316 SS |
| 3MTHRCPL6S-050-038 | 1/2" x 3/8" | 0.55" (14.0mm) | 0.71" (18.0mm) | 1.89" (48.0mm) | 1.10" (27.9mm) | 0.68" (17.3mm) | 0.57" (14.5mm) | 0.68" (17.3mm) | 0.52" (13.2mm) | 0.94" (23.9mm) | 316 SS |
| 3MTHRCPL6S-075-038 | 3/4" x 3/8" | 0.55" (14.0mm) | 0.71" (18.0mm) | 2.01" (51.1mm) | 1.38" (35.1mm) | 0.89" (22.6mm) | 0.57" (14.5mm) | 0.70" (17.8mm) | 0.52" (13.2mm) | 1.00" (25.4mm) | 316 SS |
| 3MTHRCPL6S-075-050 | 3/4" x 1/2" | 0.55" (14.0mm) | 0.55" (14.0mm) | 2.01" (51.1mm) | 1.38" (35.1mm) | 0.89" (22.6mm) | 0.68" (17.3mm) | 0.70" (17.8mm) | 0.68" (17.3mm) | 1.00" (25.4mm) | 316 SS |
| 3MTHRCPL6S-100-038 | 1" x 3/8" | 0.45" (11.4mm) | 0.71" (18.0mm) | 2.36" (59.9mm) | 1.73" (43.9mm) | 1.12" (28.4mm) | 0.57" (14.5mm) | 0.83" (21.1mm) | 0.52" (13.2mm) | 1.18" (30.0mm) | 316 SS |
| 3MTHRCPL6S-100-050 | 1" x 1/2" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.36" (59.9mm) | 1.73" (43.9mm) | 1.12" (28.4mm) | 0.68" (17.3mm) | 0.83" (21.1mm) | 0.68" (17.3mm) | 1.18" (30.0mm) | 316 SS |
| 3MTHRCPL6S-100-075 | 1" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.36" (59.9mm) | 1.73" (43.9mm) | 1.12" (28.4mm) | 0.89" (22.6mm) | 0.83" (21.1mm) | 0.70" (17.8mm) | 1.18" (30.0mm) | 316 SS |
| 3MTHRCPL6S-125-050 | 1-1/4" x 1/2" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.64" (67.1mm) | 2.24" (56.9mm) | 1.46" (37.1mm) | 0.68" (17.3mm) | 0.85" (21.6mm) | 0.68" (17.3mm) | 1.32" (33.5mm) | 316 SS |
| 3MTHRCPL6S-125-075 | 1-1/4" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 2.64" (67.1mm) | 2.24" (56.9mm) | 1.46" (37.1mm) | 0.89" (22.6mm) | 0.85" (21.6mm) | 0.70" (17.8mm) | 1.32" (33.5mm) | 316 SS |
| 3MTHRCPL6S-125-100 | 1-1/4" x 1" | 0.45" (11.4mm) | 0.45" (11.4mm) | 2.64" (67.1mm) | 2.24" (56.9mm) | 1.46" (37.1mm) | 1.12" (28.4mm) | 0.85" (21.6mm) | 0.83" (21.1mm) | 1.32" (33.5mm) | 316 SS |
| 3MTHRCPL6S-150-075 | 1-1/2" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 3.11" (79.0mm) | 2.52" (64.0mm) | 1.70" (43.2mm) | 0.89" (22.6mm) | 0.85" (21.6mm) | 0.70" (17.8mm) | 1.56" (39.6mm) | 316 SS |
| 3MTHRCPL6S-150-100 | 1-1/2" x 1" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.11" (79.0mm) | 2.52" (64.0mm) | 1.70" (43.2mm) | 1.12" (28.4mm) | 0.85" (21.6mm) | 0.83" (21.1mm) | 1.56" (39.6mm) | 316 SS |
| 3MTHRCPL6S-150-125 | 1-1/2" x 1-1/4" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.11" (79.0mm) | 2.52" (64.0mm) | 1.70" (43.2mm) | 1.46" (37.1mm) | 0.85" (21.6mm) | 0.85" (21.6mm) | 1.56" (39.6mm) | 316 SS |
| 3MTHRCPL6S-200-075 | 2" x 3/4" | 0.45" (11.4mm) | 0.55" (14.0mm) | 3.39" (86.1mm) | 2.99" (75.9mm) | 2.17" (55.1mm) | 0.89" (22.6mm) | 0.87" (22.1mm) | 0.70" (17.8mm) | 1.69" (42.9mm) | 316 SS |
| 3MTHRCPL6S-200-100 | 2" x 1" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.39" (86.1mm) | 2.99" (75.9mm) | 2.17" (55.1mm) | 1.12" (28.4mm) | 0.87" (22.1mm) | 0.83" (21.1mm) | 1.69" (42.9mm) | 316 SS |
| 3MTHRCPL6S-200-125 | 2" x 1-1/4" | 0.45" (11.4mm) | 0.45" (11.4mm) | 3.39" (86.1mm) | 2.99" (75.9mm) | 2.17" (55.1mm) | 1.46" (37.1mm) | 0.87" (22.1mm) | 0.85" (21.6mm) | 1.69" (42.9mm) | 316 SS |
| 3MTHRCPL6S-250-150 | 2-1/2" x 1-1/2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 3.62" (91.9mm) | 3.62" (91.9mm) | 2.58" (65.5mm) | 1.70" (43.2mm) | 1.18" (30.0mm) | 0.85" (21.6mm) | 1.81" (46.0mm) | 316 SS |
| 3MTHRCPL6S-250-200 | 2-1/2" x 2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 3.62" (91.9mm) | 3.62" (91.9mm) | 2.58" (65.5mm) | 2.17" (55.1mm) | 1.18" (30.0mm) | 0.87" (22.1mm) | 1.81" (46.0mm) | 316 SS |
| 3MTHRCPL6S-300-200 | 3" x 2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 4.25" (108.0mm) | 4.25" (108.0mm) | 3.21" (81.5mm) | 2.17" (55.1mm) | 1.27" (32.3mm) | 0.87" (22.1mm) | 2.13" (54.1mm) | 316 SS |
| 3MTHRCPL6S-300-250 | 3" x 2-1/2" | 0.31" (7.9mm) | 0.31" (7.9mm) | 4.25" (108.0mm) | 4.25" (108.0mm) | 3.21" (81.5mm) | 2.58" (65.5mm) | 1.27" (32.3mm) | 1.18" (30.0mm) | 2.13" (54.1mm) | 316 SS |
| 3MTHRCPL6S-400-200 | 4" x 2" | 0.31" (7.9mm) | 0.45" (11.4mm) | 4.76" (120.9mm) | 5.51" (140.0mm) | 4.20" (106.7mm) | 2.17" (55.1mm) | 1.34" (34.0mm) | 0.87" (22.1mm) | 2.38" (60.5mm) | 316 SS |
