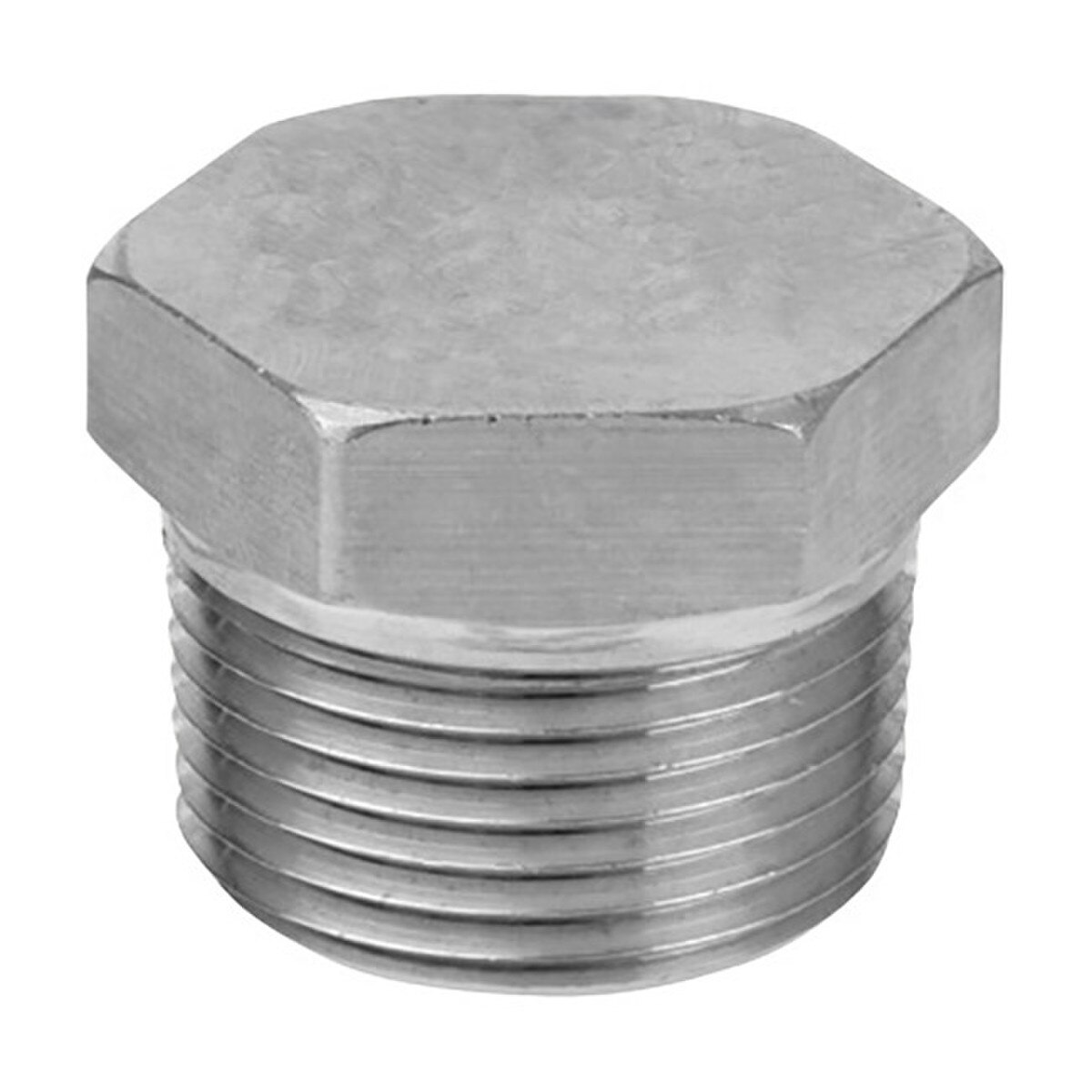

3000# Forged Hex Head Plug Stainless Steel Pipe Fittings - Threaded
3000# hex head plug pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with threaded end connections. Available in 304 and 316 stainless steel alloys.
 | |||||
| Part No. | Size (in.) | Length Min. (A) | Width Flats (F) | Hex Height (H) | Material |
|---|---|---|---|---|---|
| 3MTHHHP4S-013 | 1/8" | 0.394" (10.0mm) | 0.433" (11.0mm) | 0.236" (6.0mm) | 304 SS |
| 3MTHHHP4S-025 | 1/4" | 0.433" (11.0mm) | 0.630" (16.0mm) | 0.236" (6.0mm) | 304 SS |
| 3MTHHHP4S-038 | 3/8" | 0.512" (13.0mm) | 0.709" (18.0mm) | 0.315" (8.0mm) | 304 SS |
| 3MTHHHP4S-050 | 1/2" | 0.551" (14.0mm) | 0.866" (22.0mm) | 0.315" (8.0mm) | 304 SS |
| 3MTHHHP4S-075 | 3/4" | 0.630" (16.0mm) | 1.063" (27.0mm) | 0.394" (10.0mm) | 304 SS |
| 3MTHHHP4S-100 | 1" | 0.748" (19.0mm) | 1.417" (36.0mm) | 0.394" (10.0mm) | 304 SS |
| 3MTHHHP4S-125 | 1-1/4" | 0.827" (21.0mm) | 1.811" (46.0mm) | 0.551" (14.0mm) | 304 SS |
| 3MTHHHP4S-150 | 1-1/2" | 0.827" (21.0mm) | 1.969" (50.0mm) | 0.630" (16.0mm) | 304 SS |
| 3MTHHHP4S-200 | 2" | 0.866" (22.0mm) | 2.559" (65.0mm) | 0.709" (18.0mm) | 304 SS |
| 3MTHHHP4S-250 | 2-1/2" | 1.063" (27.0mm) | 2.953" (75.0mm) | 0.748" (19.0mm) | 304 SS |
| 3MTHHHP4S-300 | 3" | 1.102" (28.0mm) | 3.543" (90.0mm) | 0.827" (21.0mm) | 304 SS |
| 3MTHHHP6S-013 | 1/8" | 0.394" (10.0mm) | 0.433" (11.0mm) | 0.236" (6.0mm) | 316 SS |
| 3MTHHHP6S-025 | 1/4" | 0.433" (11.0mm) | 0.630" (16.0mm) | 0.236" (6.0mm) | 316 SS |
| 3MTHHHP6S-038 | 3/8" | 0.512" (13.0mm) | 0.709" (18.0mm) | 0.315" (8.0mm) | 316 SS |
| 3MTHHHP6S-050 | 1/2" | 0.551" (14.0mm) | 0.866" (22.0mm) | 0.315" (8.0mm) | 316 SS |
| 3MTHHHP6S-075 | 3/4" | 0.630" (16.0mm) | 1.063" (27.0mm) | 0.394" (10.0mm) | 316 SS |
| 3MTHHHP6S-100 | 1" | 0.748" (19.0mm) | 1.417" (36.0mm) | 0.394" (10.0mm) | 316 SS |
| 3MTHHHP6S-125 | 1-1/4" | 0.827" (21.0mm) | 1.811" (46.0mm) | 0.551" (14.0mm) | 316 SS |
| 3MTHHHP6S-150 | 1-1/2" | 0.827" (21.0mm) | 1.969" (50.0mm) | 0.630" (16.0mm) | 316 SS |
| 3MTHHHP6S-200 | 2" | 0.866" (22.0mm) | 2.559" (65.0mm) | 0.709" (18.0mm) | 316 SS |
| 3MTHHHP6S-250 | 2-1/2" | 1.063" (27.0mm) | 2.953" (75.0mm) | 0.748" (19.0mm) | 316 SS |
| 3MTHHHP6S-300 | 3" | 1.102" (28.0mm) | 3.543" (90.0mm) | 0.827" (21.0mm) | 316 SS |
